| TWITTER ZhuiTe Bicycle---Complete Bicycle Configuration and Quotation | |||

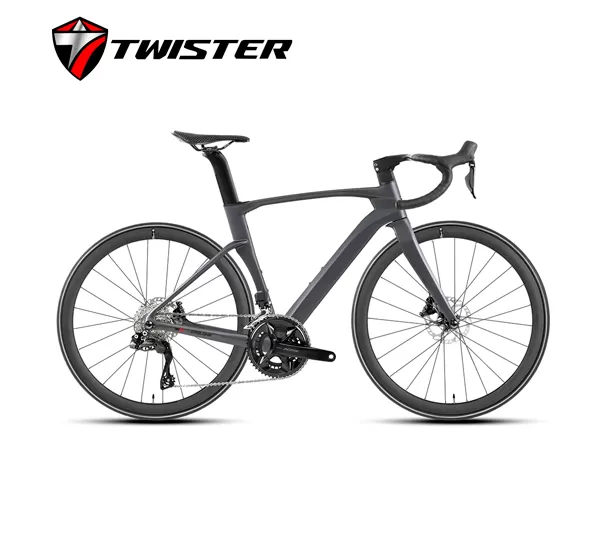

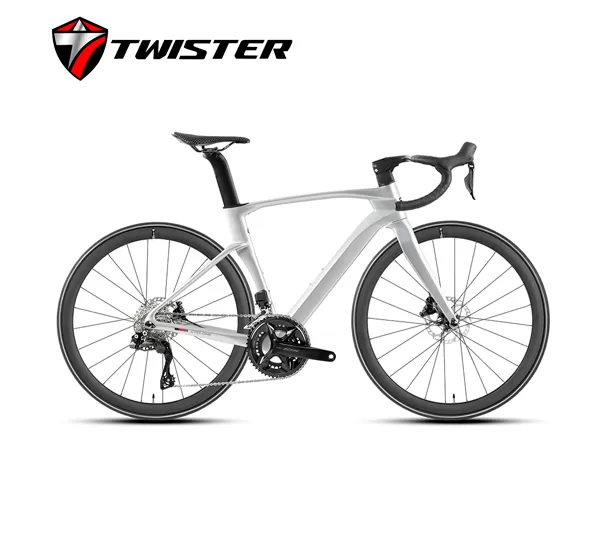

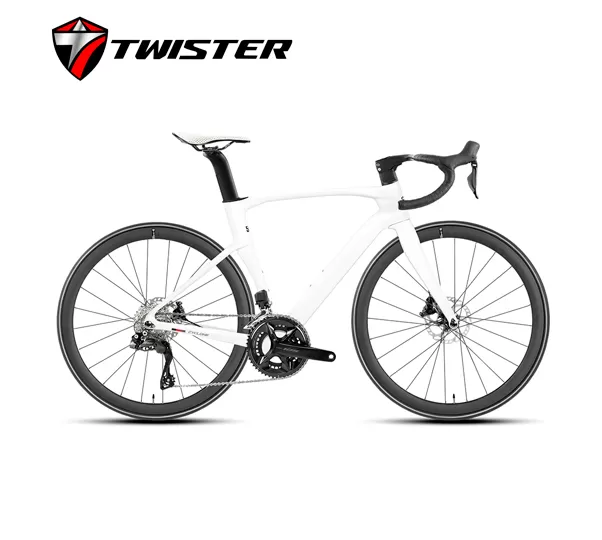

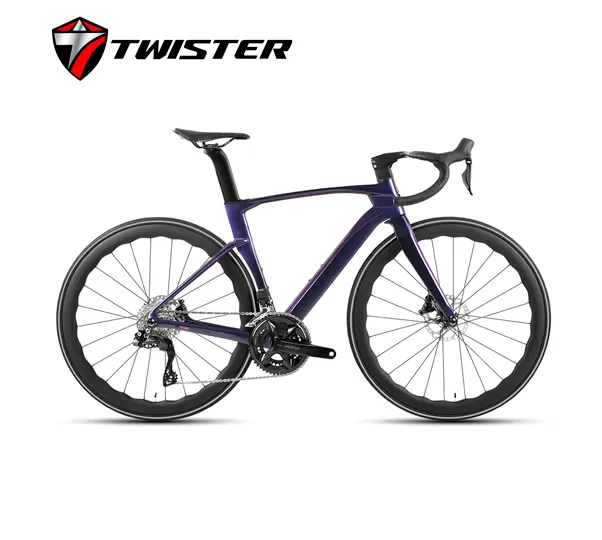

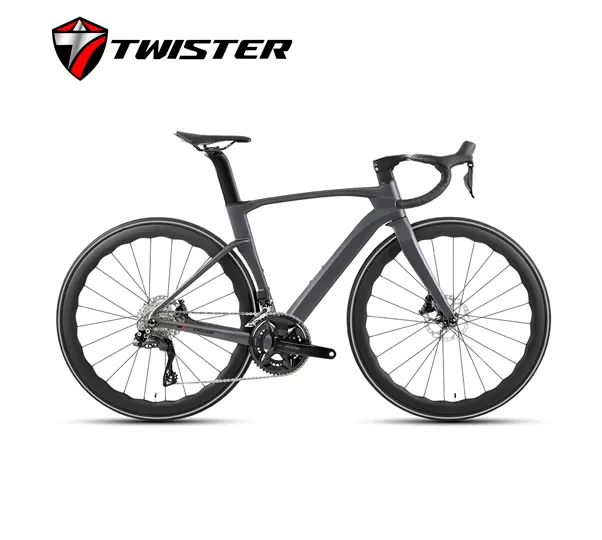

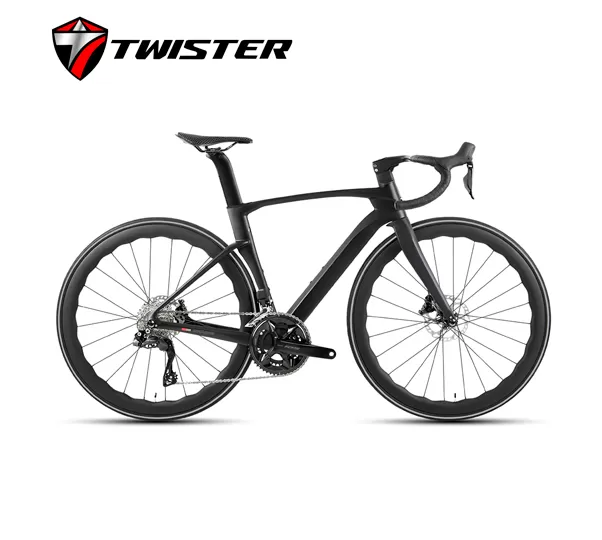

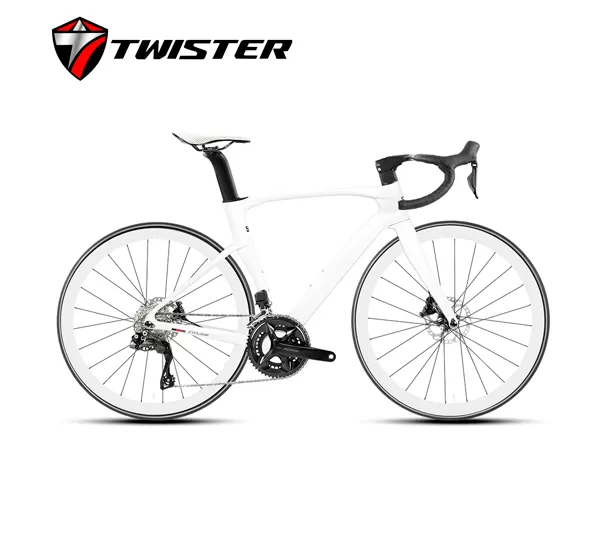

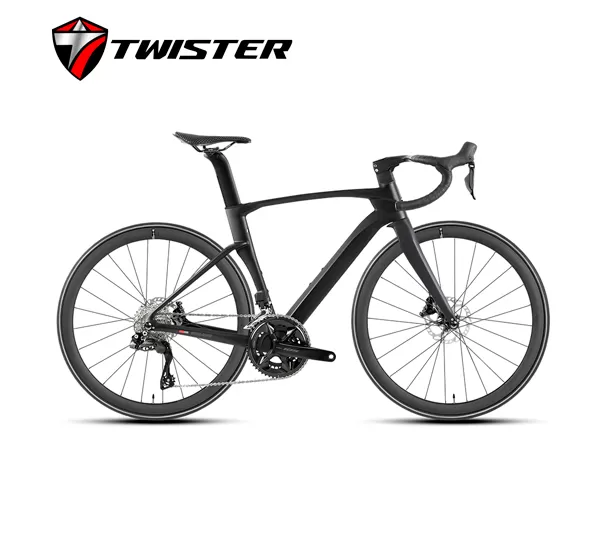

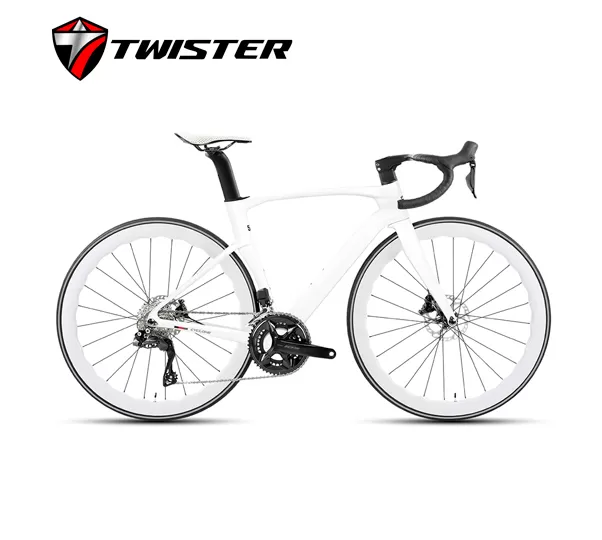

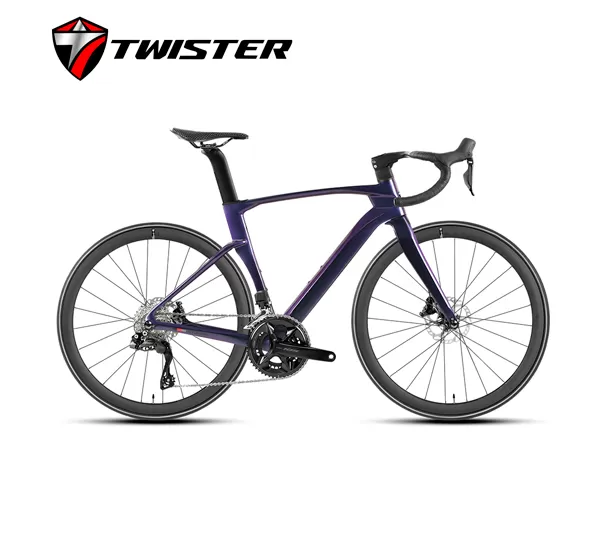

| Vehicle Model | Cyclone CYCLONE - Third Generation | ||
| Standard Category | R7170-24 speed electric transformer oil disc large sleeve aluminum wheel carbon handle | R7170-24 speed electric transformer oil disc large set wave carbon ring carbon handle | |
| Wheel Diameter Size | 700C | ||
| Frame Height Dimension | 43.5cm / 46cm / 48cm / 50cm / 52cm / 54cm | ||
| Vehicle Color | White/matte black/matte dark gray/silver, fully color changing | ||
| Net Weight of the Whole Vehicle | 8.9KG | 8.7KG | |
| Frame | Frame | Cyclone CYCLONE - Third Generation (Disc Brake Barrel Shaft 12 * 142) High Modulus Carbon Fiber/Wind Breaking Racing/Internal Wiring/Matte or Bright Paint/UV Label | |
| Group up | Group up | TW high modulus carbon fiber/wind breaking integrated bending handle and stand 420 * 90mm/full internal wiring | |
| Seat Tube | Frame matching/high modulus carbon fiber/water breaking droplet type | ||
| Pipe Clamp | Frame matching/built-in lock buckle with protective rubber sleeve | ||
| Front Fork | Front Fork | Cyclone CYCLONE - Third Generation (Disc Brake Barrel Shaft 12 * 100) High Modulus Carbon Fiber/Highway Hard Fork | |
| Headset | Peilin 52 * 52mm | ||
| Grommet | Dedicated for internal wiring | ||
| Variable Speed | Hand Changes | SHIMANO 105/R7170-2 * 12 speed | |
| Front Derailleur | SHIMANO 105/R7150-2 speed | ||
| Rear Derailleur | SHIMANO 105/R7150-12 speed | ||
| Crankset | SHIMANO 105/R7100 Hollow, 34-50T | ||
| Flywheel | SHIMANO 105/R7101-12 speed, 11-34T | ||
| Chain | SHIMANO HG-M7100-12 Speed | ||
| Axis | Thread T47 * 24mm, hollow Peilin | ||
| Brake | Brake | SHIMANO 105/R7170 hydraulic disc brake, RT70 lock disc 160/160mm | |
| Wheel Set | Flower Drum | RS lightweight aluminum alloy+carbon fiber/four pin card/front 24 and rear 24 hole straight pull/middle lock/disc brake barrel shaft F12 * 100_S12 * 142 | |
| Rim | RS lightweight aluminum alloy/double-layer reinforcement/38mm frame height/700C | RS high modulus carbon fiber/wave ring/frame height 45/50mm/opening | |
| Spoke | Xieda Stainless Steel Flat Bar 14G | ||
| Tire | Innova Foldable with Reflective Edge, 700 * 27C | ||
| Other | Tape | PU breathable, comfortable, non slip | |
| Seat Cushion | 3D printed seat cushion | ||
| Pedal | Colorful 3-bearing carbon tube foot pedal | ||
| Conduit | JAGWIRE | ||
| Add Components | Front and rear reflectors+front and rear wheel reflectors | ||
| Comes with Accessories | PC kettle holder+tools | ||
| TW manual+warranty card+SHIMANO charger | |||
| Domestic dealer quotation, RMB (if choosing the color changing frame set, add 200 yuan on the following price basis; Color changing carbon ring on the basis of regular carbon ring+100 yuan) | |||
| Loading Order | |||||
| CYCLONE-3rd | R7170-24 speed electric transformer oil disc large sleeve aluminum wheel carbon handle | R7170-24 speed electric transformer oil disc large set wave carbon ring carbon handle | |||
| System | Accessory | Specifications | Color/General Color | Color Change | |
| Frame | Frame | Cyclone CYCLONE - Third Generation, Disc Brake Barrel Shaft Carbon Fiber Highway | Dumb Black, White, Dumb Dark Grey Silver, Other | Full color change | |
| Group up | Group up | TW carbon fiber integrated bending handle and stand 420 * 90mm, fully concealed wiring | Black | Black | |
| Seat Tube | Carbon fiber seat tube for frame matching | Black | Black | ||
| Pipe Clamp | Built in lock buckle and dust cover on the frame | Black | Black | ||
| Front Fork | Front Fork | Cyclone CYCLONE - Third generation, disc brake drum shaft with carbon fiber hard fork 700C | Matte Black, White, Matte Dark Gray, Dark Green, Other | Full color change | |
| Headset | Bearing 52 * 52mm | Black | |||
| Grommet | High strength lightweight nylon/internal wiring special | Black | |||
| Variable Speed | Hand Changes | SHIMANO 105/R7170-2 * 12 speed | |||
| Front Derailleur | SHIMANO 105/R7150-2 speed | ||||
| Rear Derailleur | SHIMANO 105/R7150-12 speed | ||||
| Crankset | SHIMANO 105/R7100 Hollow, 34-50T | ||||
| Flywheel | SHIMANO 105/R7101-12 speed, 11-34T | ||||
| Chain | SHIMANO HG-M7100-12 Speed | ||||
| Axis | Thread T47 * 24mm, hollow Peilin | ||||
| Brake | Brake | SHIMANO 105/R7170 hydraulic disc brake+RT70 middle lock disc 160/160mm | |||
| Brake Handle | |||||
| Wheel Set | Flower Drum | RS aluminum+carbon fiber/four axis/highway card type/front 24 and rear 24 hole straight pull/bucket shaft disc brake center lock+rotary lock rod | Black | Black | |
| Rim | 700C/aluminum alloy double-layer 38 blade (RS-UV standard) | 700C/Carbon Fiber/Wave Ring 45/50 Knife | Black | Black | |
| Spoke | Xie Da Flat Bar, Straight Head | Black | Black | ||
| Tire | Innova Foldable with Reflective Edge, 700 * 27C | ||||
| Attachment | Tape | PU breathable holes for comfort and anti slip | Black | Black | |
| Seat Cushion | 3D printed seat cushion (ordinary) | Black | Black | ||
| Pedal | Colorful 3-bearing carbon tube foot pedal | Black | Black | ||
| Tripod | not have | ||||
| Conduit | JAGWIRE | Black | Black | ||
| Retrofitting | Front and rear reflectors+spoke reflectors | ||||
| Equipment | PC water rack+tools | ||||
| Other | TW warranty card+TW manual+SHIMANO charger | ||||
