| TWITTER Bike - Complete Vehicle Configuration and Quotation | |||

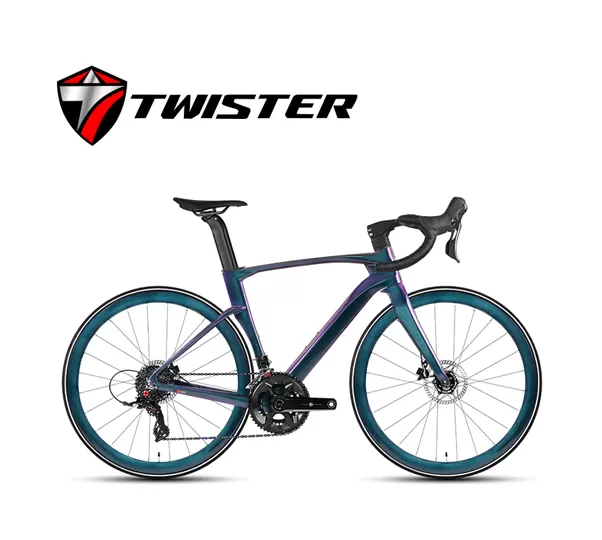

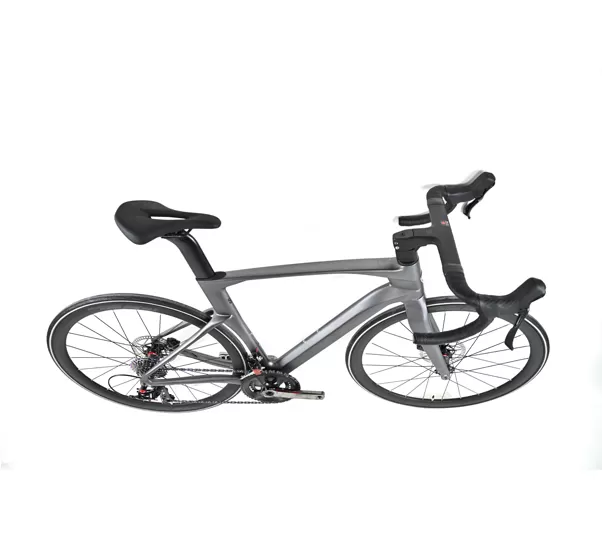

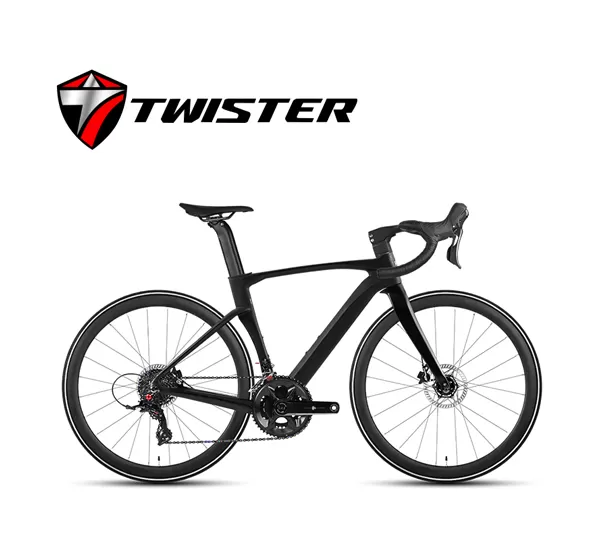

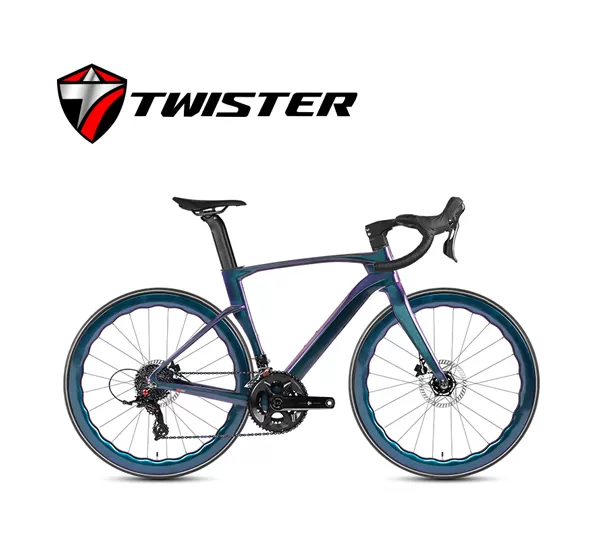

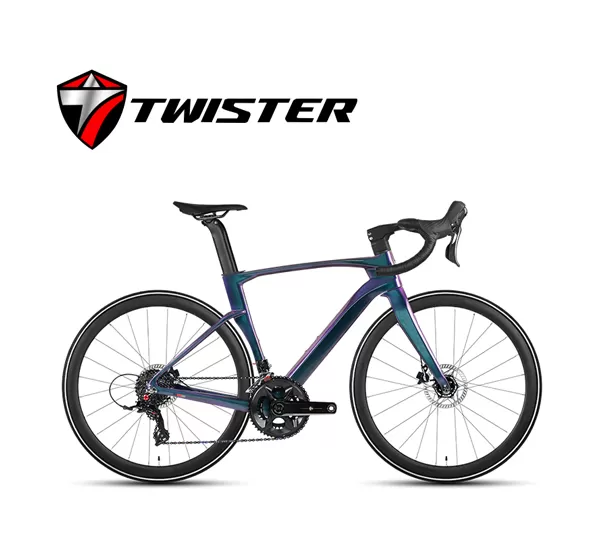

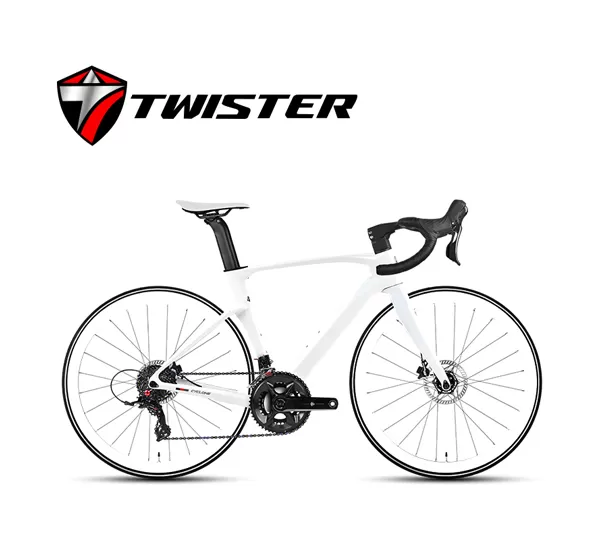

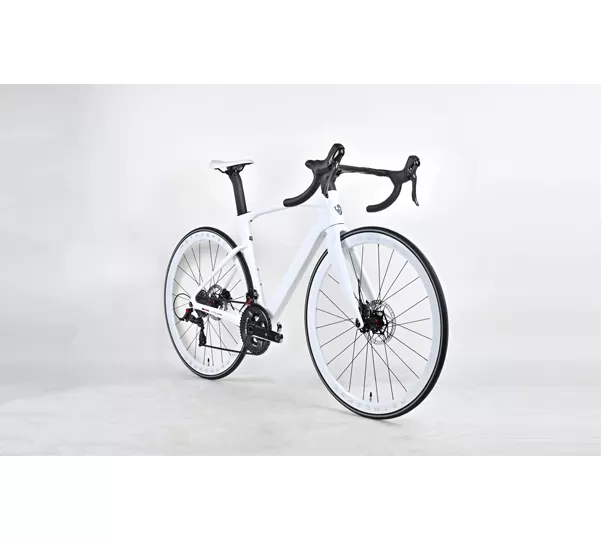

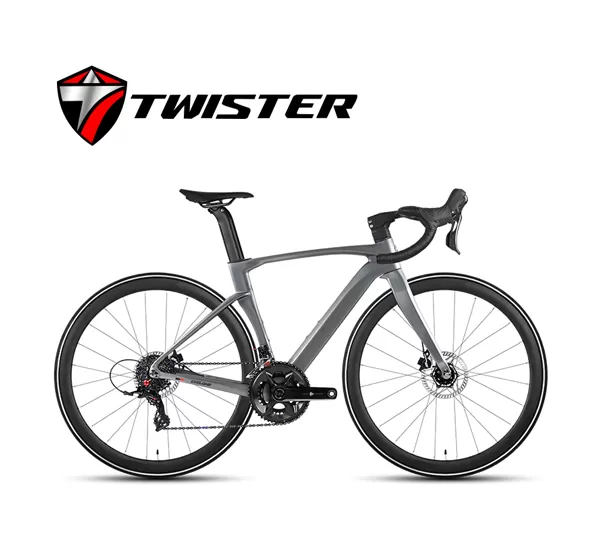

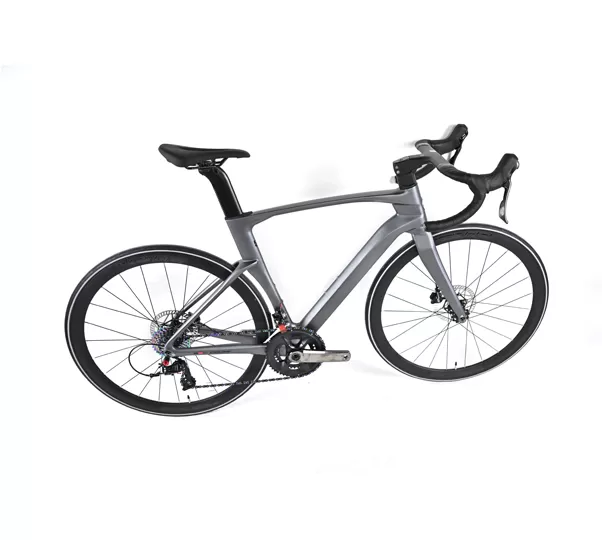

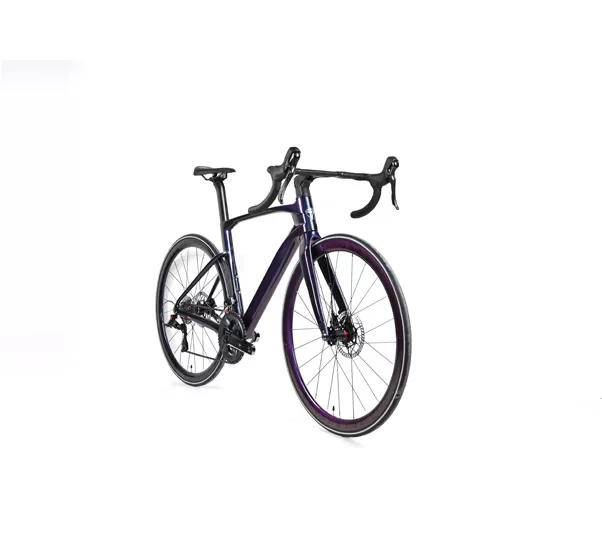

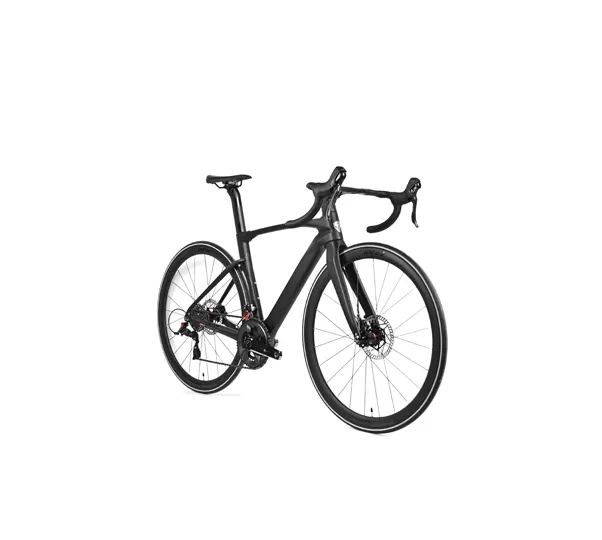

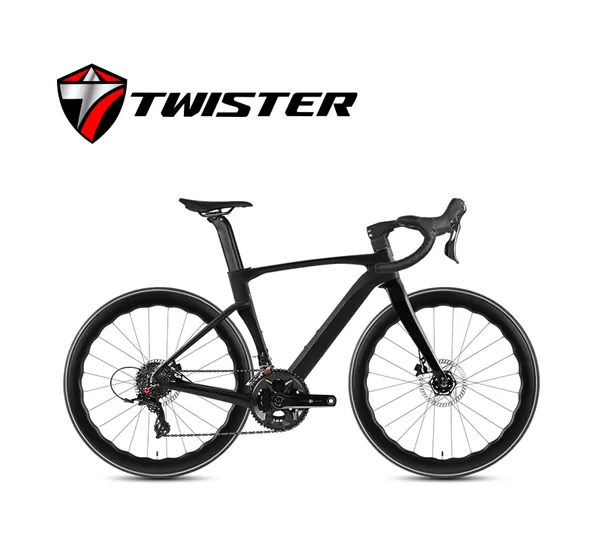

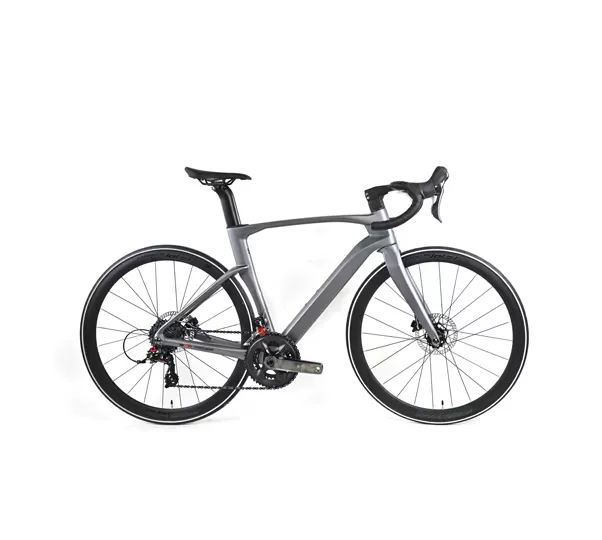

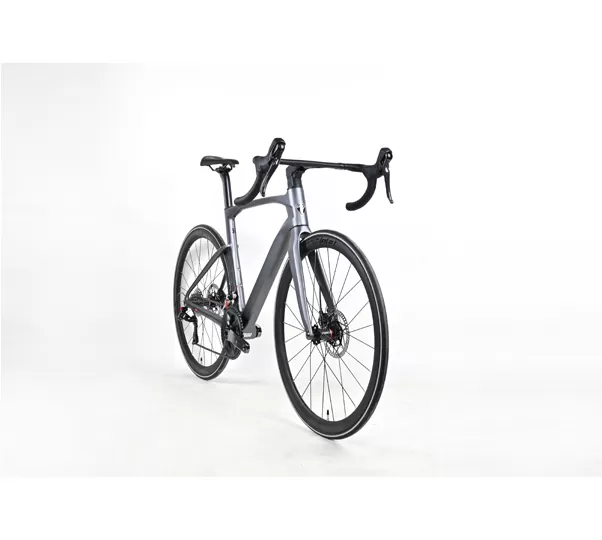

| Vehicle Model | Cyclone CYCLONE - Third Generation (Sports Edition) | ||
| Standard Category | RS-24 speed oil disc aluminum ring integrated aluminum handle | RS-24 speed oil disc wave carbon ring integrated aluminum handle | |
| Wheel Diameter Size | 700C | ||
| Frame Height Dimension | 43.5cm / 46cm / 48cm / 50cm / 52cm / 54cm | ||
| Vehicle Color | White/matte black/matte dark gray/dark green/cyan/pink/other, fully color changing | ||
| Net Weight of the Whole Vehicle | 9.1KG | 8.9KG | |
| Frame | Frame | CYCLONE - Third generation (disc brake drum shaft 12 * 142) high modulus carbon fiber/wind breaking racing/internal wiring/matte or glossy paint/UV label | |

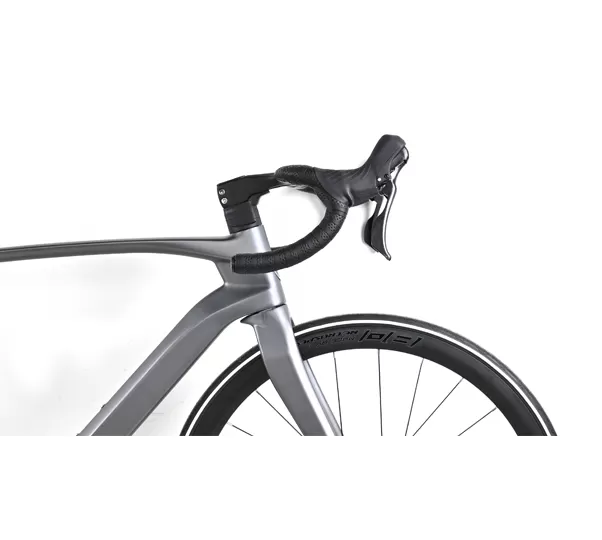

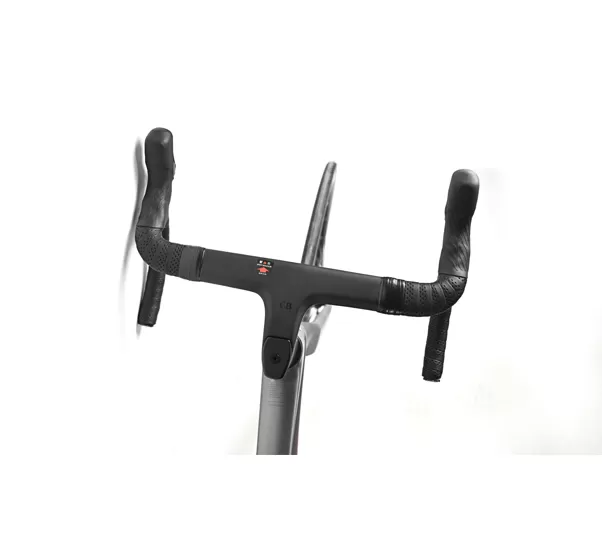

| Group up | Group up | TW aluminum alloy wind breaking integrated bending handle and stand 400 * 90mm/full internal wiring | |
| Seat Tube | Frame matching/high modulus carbon fiber/water breaking droplet type | ||
| Pipe Clamp | Frame matching/built-in lock buckle with protective rubber sleeve | ||
| Front Fork | Front Fork | CYCLONE - Third Generation (Disc Brake Barrel Shaft 12 * 100) High Modulus Carbon Fiber/Highway Hard Fork | |
| Headset | Aluminum alloy CNC Peilin 52 * 52mm | ||
| Grommet | Dedicated for internal wiring | ||

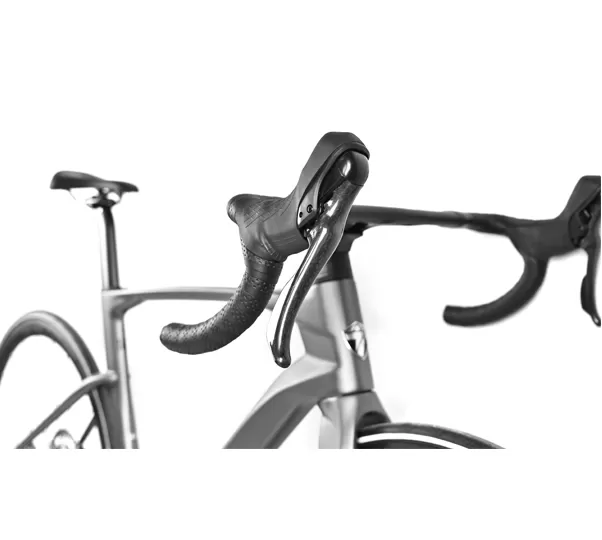

| Variable Speed | Hand Changes | RETROSPEC (SENSAH HRD6900-R) -2 * 12 Speed Carbon Handle | |
| Front Derailleur | RETROSPEC (SENSAH Z2) -2 speed | ||

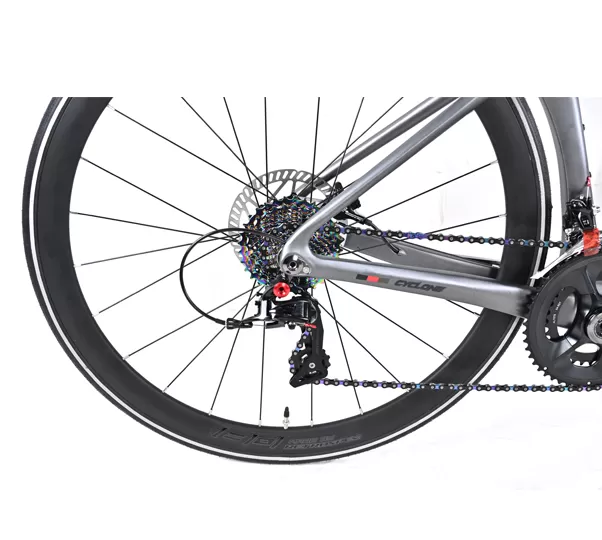

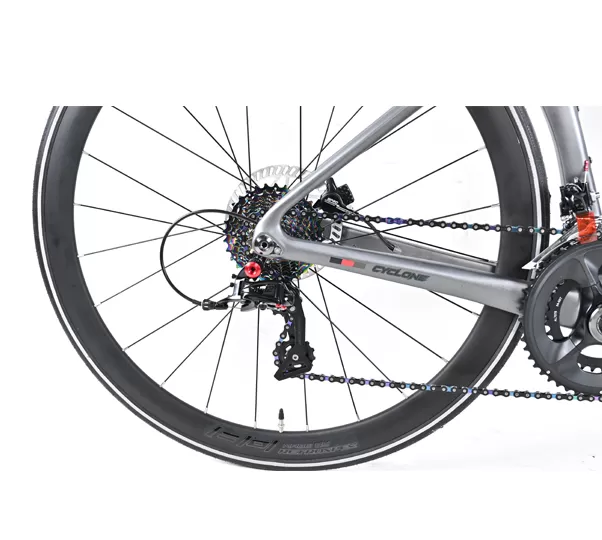

| Rear Derailleur | RETROSPEC (SENSAH RD8500-R-GS) -12 speed | ||

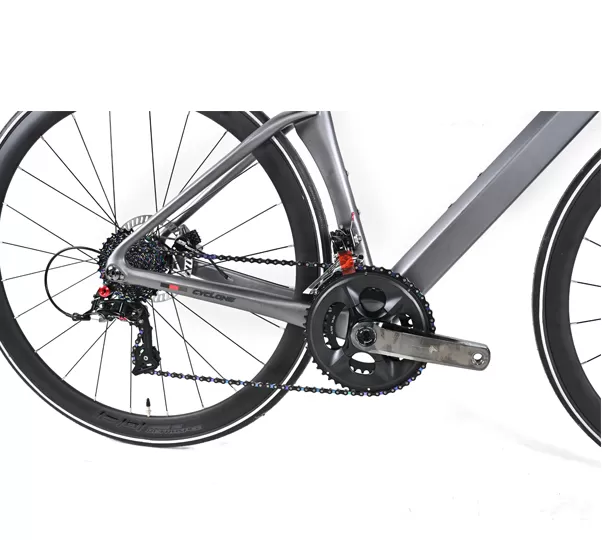

| Crankset | SENICX Yuyong-PR1 aluminum alloy hollow 34-50T | ||
| Flywheel | SUNSHIN-12 speed, 11-32T | ||
| Chain | SUMC-12 speed | ||
| Axis | Thread T47 * 29mm, hollow Peilin | ||

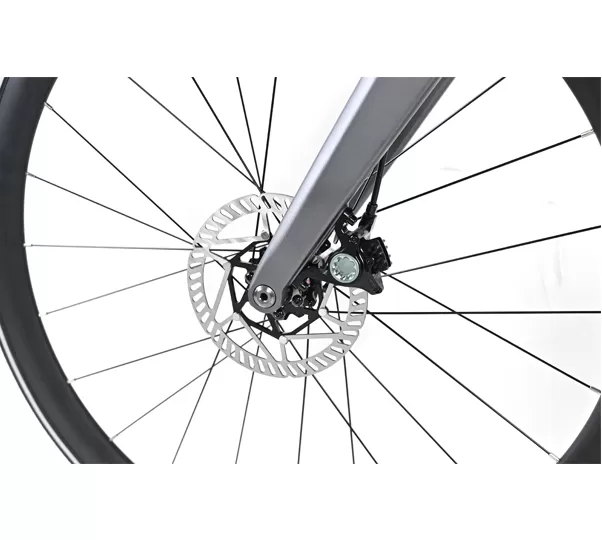

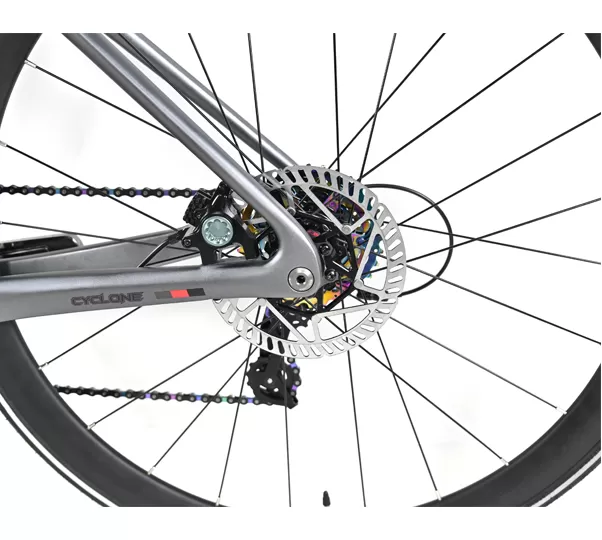

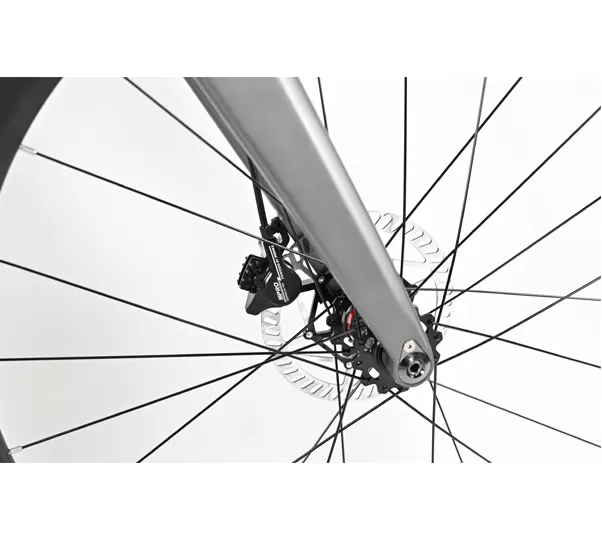

| Brake | Brake | CNC integrated four piston flat oil disc brake, Yanhao disc 160/160 | |

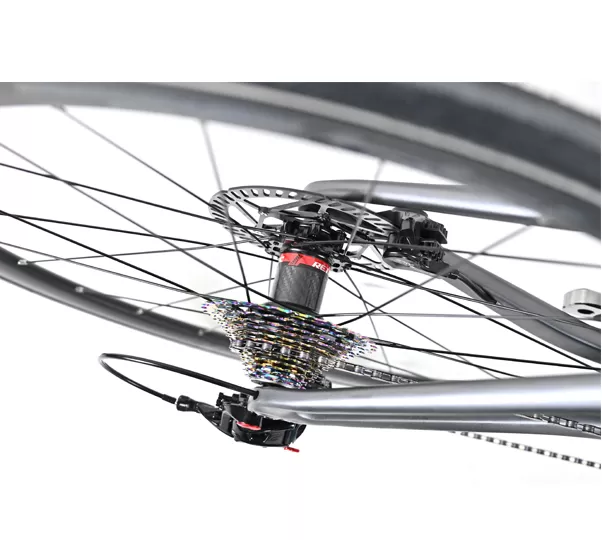

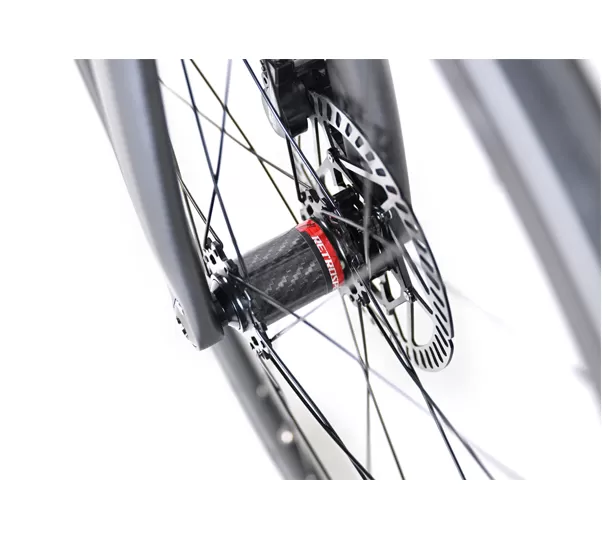

| Wheel Set | Flower Drum | RS lightweight aluminum alloy+carbon fiber/four pin card/front 24 and rear 24 holes/disc brake barrel shaft F12 * 100_S12 * 142 | |
| Rim | RS lightweight aluminum alloy/double-layer reinforcement/frame height 38mm | RS high modulus carbon fiber/wave ring/frame height 50mm/opening | |
| Spoke | High rigidity round bar 14G | High rigidity flat bar 14G | |
| Tire | RS Foldable with Reflective Edge, 700 * 28C | ||
| Other | Tape | PU breathable, comfortable, non slip | |
| Seat Cushion | TW short nose hollow cushion | ||
| Pedal | Lightweight road bike pedals | ||
| Conduit | JAGWIRE | ||
| Add components | Front and rear reflectors+front and rear wheel reflectors | ||
| Comes with accessories | PC kettle holder+tools | ||
| TW manual+warranty card | |||
| Domestic dealer quotation, RMB (if choosing the color changing frame set, add 200 yuan on the following price basis; Color changing carbon ring on the basis of regular carbon ring+100 yuan) | |||
| Minimum Retail Price | 3299 | 4299 | |
| The whole vehicle comes standard Loading order | |||
| Cyclone CYCLONE - Third Generation (Sports Edition) | RS-24 speed oil disc aluminum wheel carbon handle | RS-24 speed oil disc wave carbon ring carbon handle | |
| system | accessory | specifications | specifications |
| frame | frame | Cyclone CYCLONE - Second Generation, Disc Brake Barrel Shaft, Carbon Fiber Highway | |
| Group up | Group up | TW carbon fiber integrated bending handle and stand 400 * 90/420 * 100mm, fully concealed wiring | |
| seat tube | Carbon fiber seat tube for frame matching | ||
| pipe clamp | Built in lock buckle and dust cover on the frame | ||
| front fork | front fork | Cyclone CYCLONE -2nd generation, disc brake drum shaft with carbon fiber hard fork 700C | |
| Headset | Bearing 52 * 52mm | ||
| grommet | High strength lightweight nylon/internal wiring special | ||
| variable speed | Hand changes | RS (Shuntai HRD6900-R) -2 * 12 speed carbon handle | |
| Front Derailleur | SHIMANO-105 | ||
| Rear derailleur | RS (Shuntai RD8500-R-GS) -12 speed | ||
| Crankset | TW aluminum alloy 7075-DUB hollow 34-50T | ||
| flywheel | SUGEK-12 Speed, 11-32T, Colorful | ||
| chain | SUMC-12 Speed Black Colorful | ||
| axis | Thread T47 * 29mm, hollow Peilin | ||
| brake | brake | RS (Shuntai G100) flat all oil disc brake+RS black disc 160/160 | |
| Brake handle | |||
| Wheel set | Flower drum | RS aluminum+carbon fiber/four axis/highway card type/front 24, rear 24 holes/drum shaft disc brake+rotary lock rod | |
| Rim | 700C/aluminum alloy/double-layer 38 blade (RS-UV standard) | 700C/Carbon Fiber/Wave Ring $50 (RS Alphabet) | |
| spoke | Ordinary round bar, elbow | Ordinary flat bar, elbow | |
| Tire | RS Foldable with Reflective Edge, 700 * 27C | ||
| attachment | tape | PU breathable holes for comfort and anti slip | |
| seat cushion | TW short nose hollow | ||
| pedal | Lightweight road pedals | ||
| Tripod | / | ||
| Conduit | JAGWIRE | ||
| retrofitting | Front and rear reflectors+spoke reflectors | ||
| equipment | PC water rack+tools | ||
| other | TW warranty card+TW instruction manual | ||
