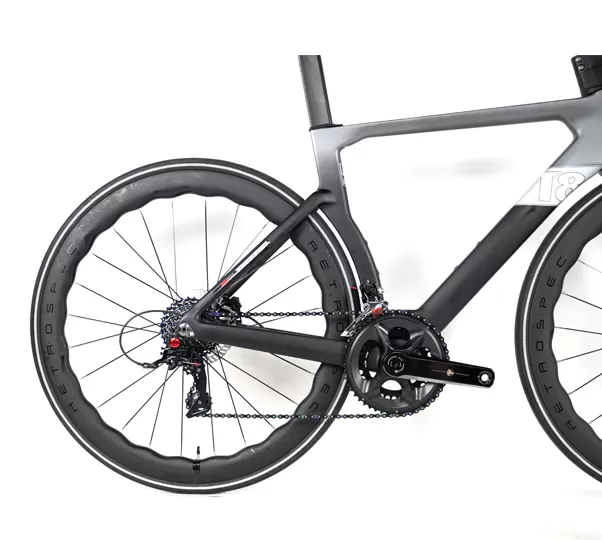

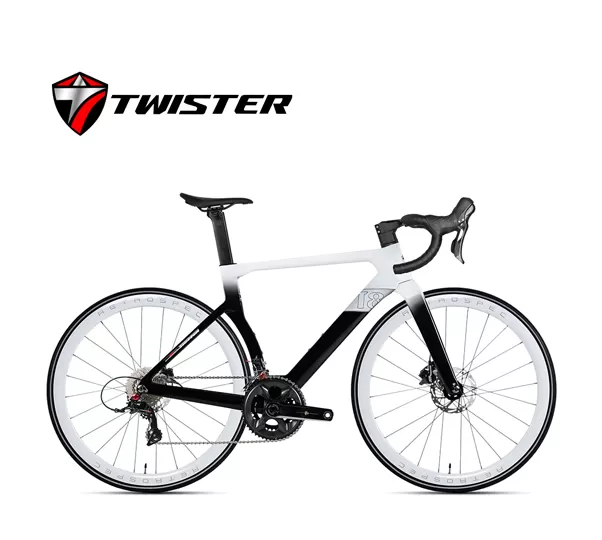

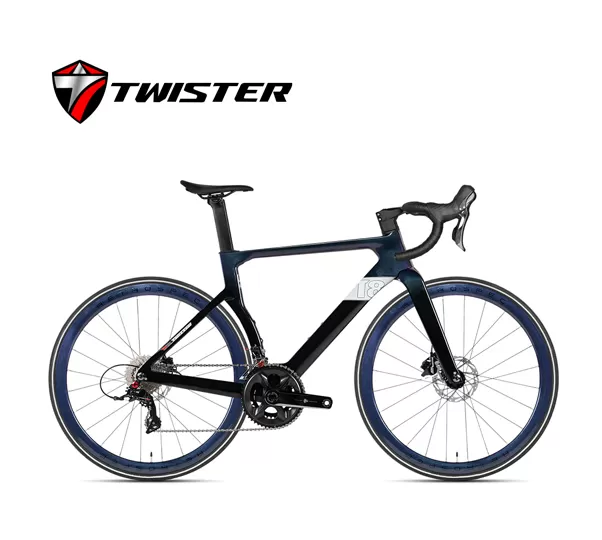

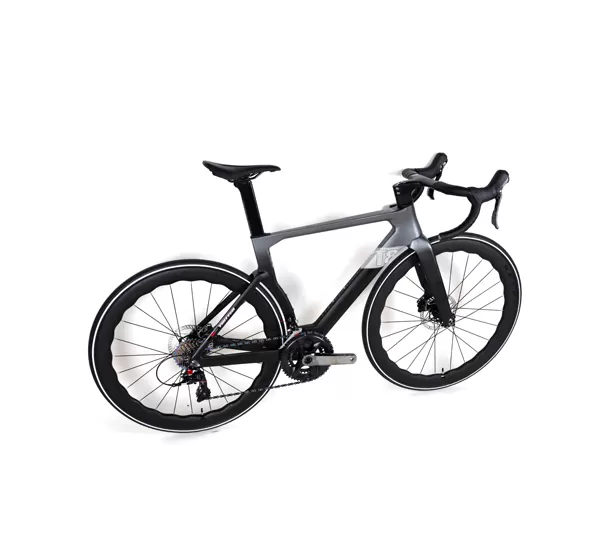

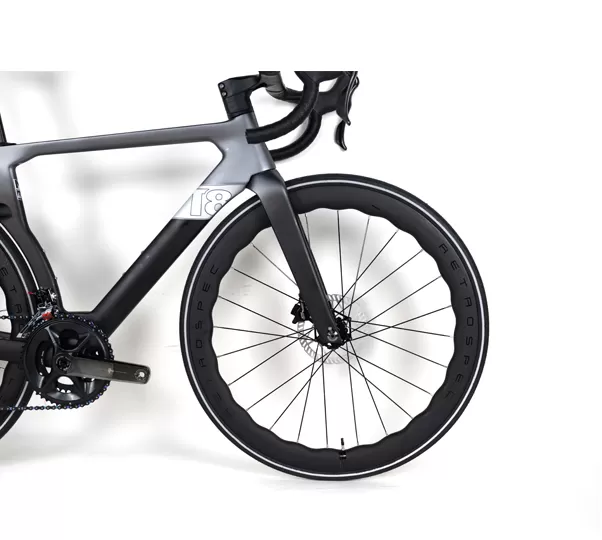

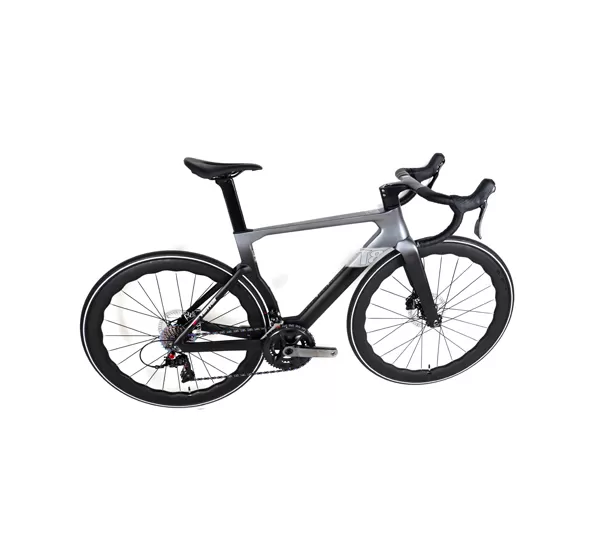

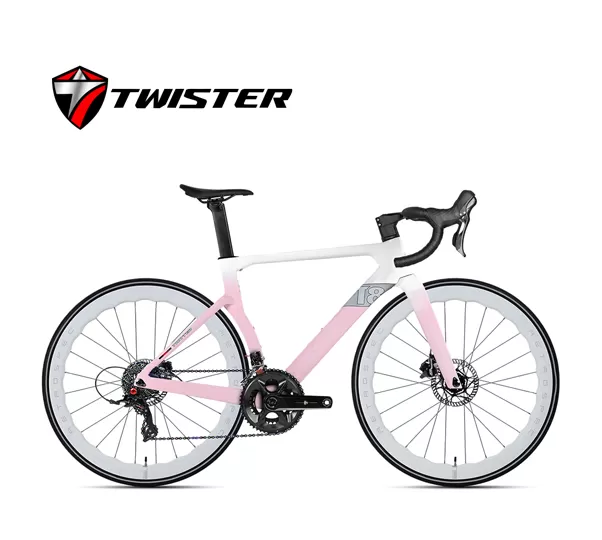

| TWITTER.Bicycle - Configuration+Quatation | ||

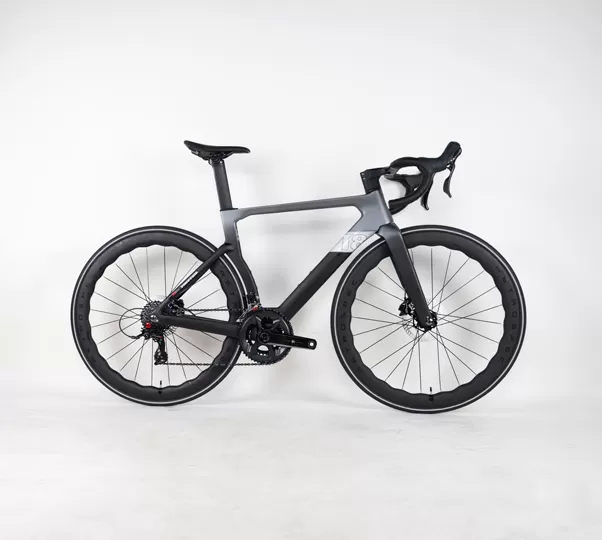

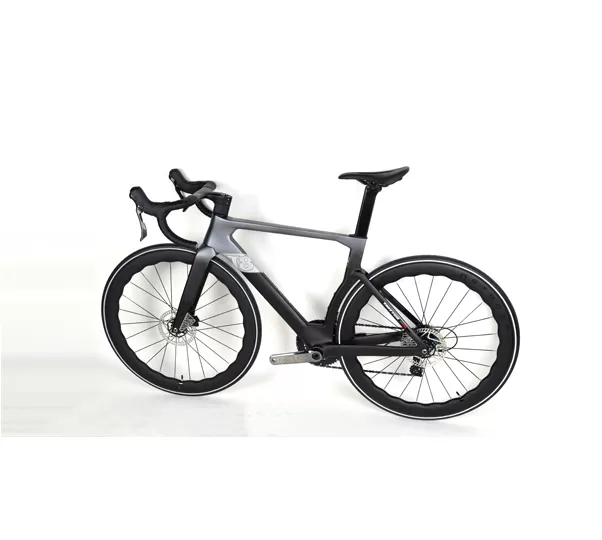

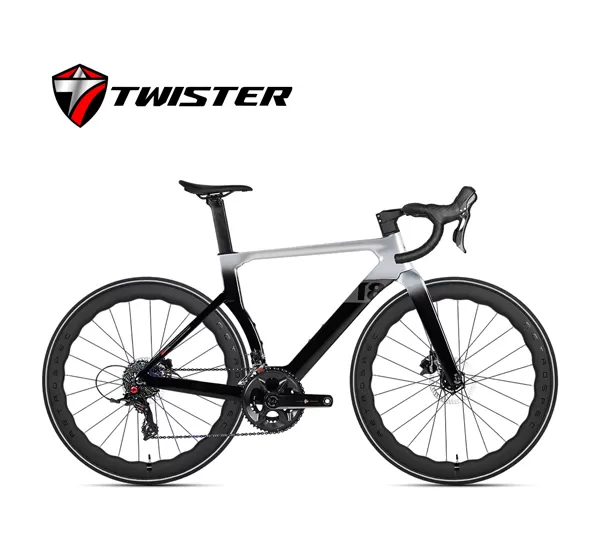

| Bike Model | T8-Disc | |
| ConfRev | RS-24S, alloy wheel | RS-24S, carbon Rim&Wave |
| Wheel Size | 700C | |
| Frame Height | 43.5cm / 46cm / 48cm / 50cm / 52cm / 54cm | |

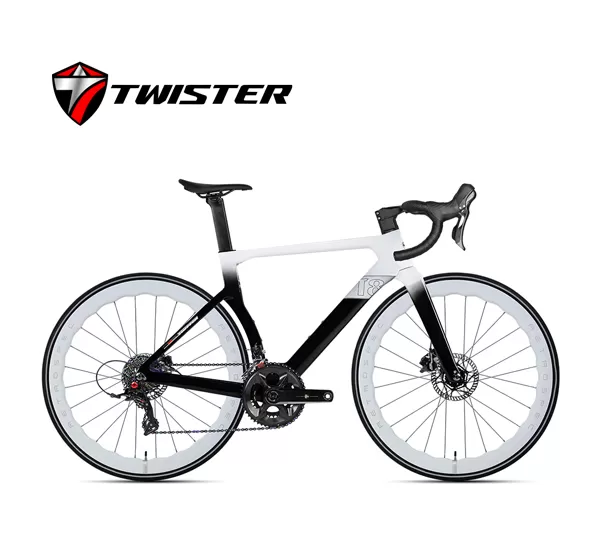

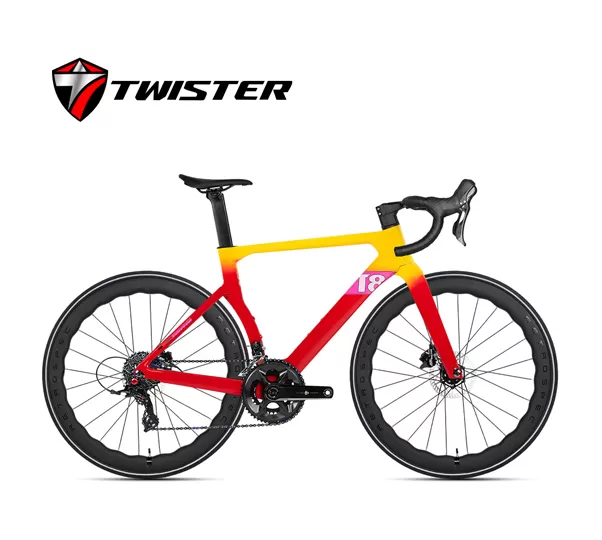

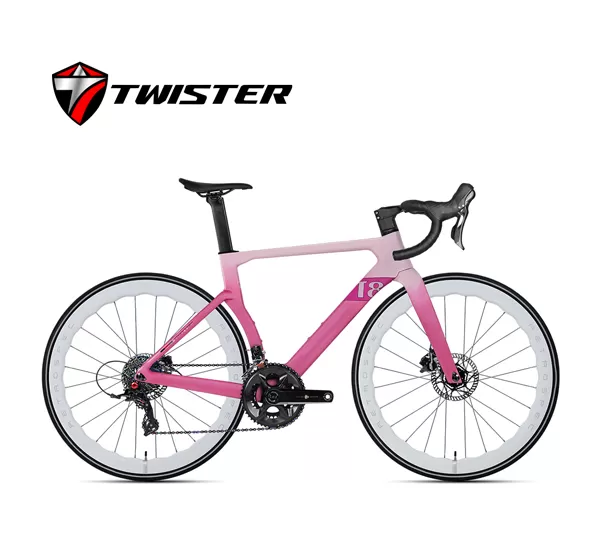

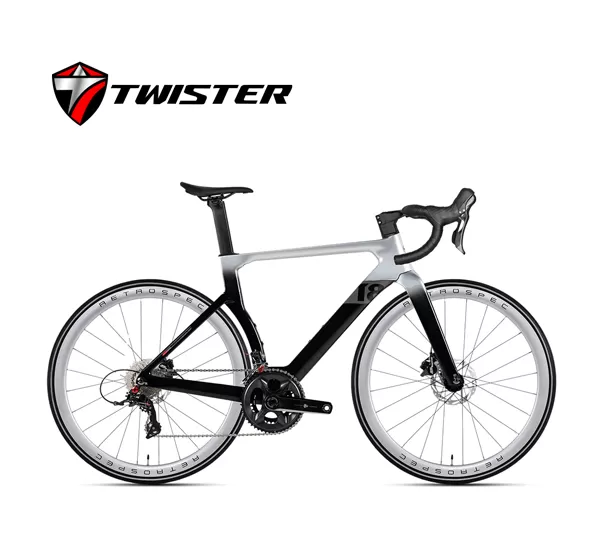

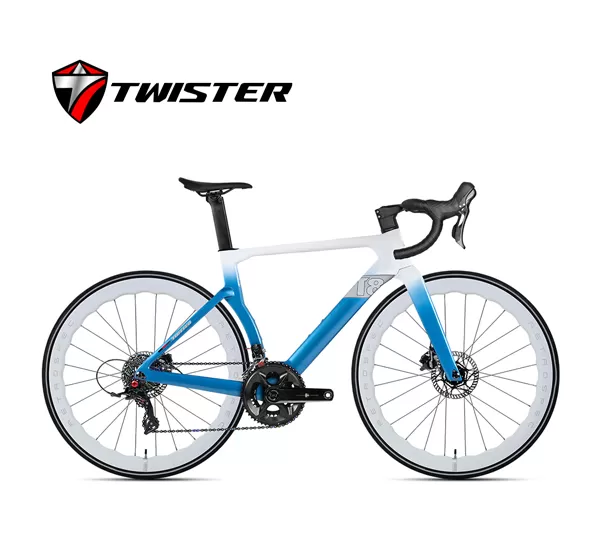

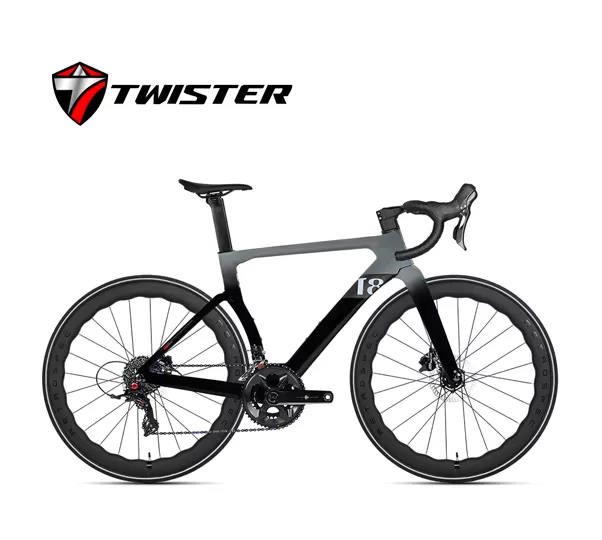

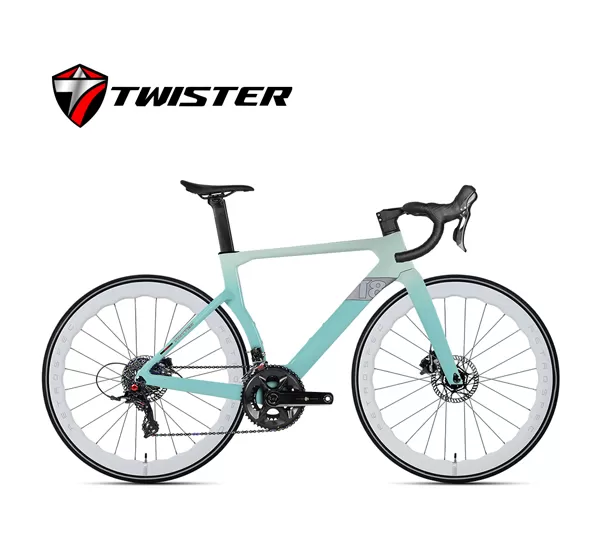

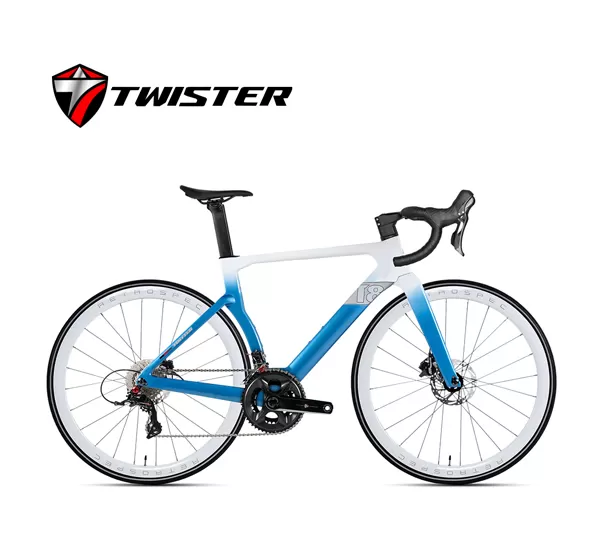

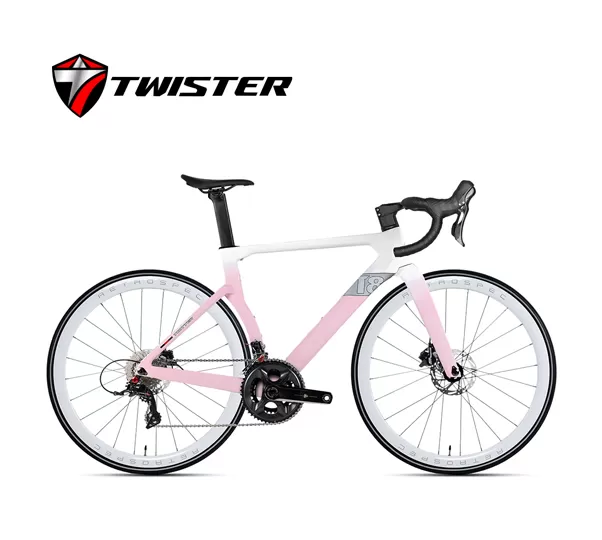

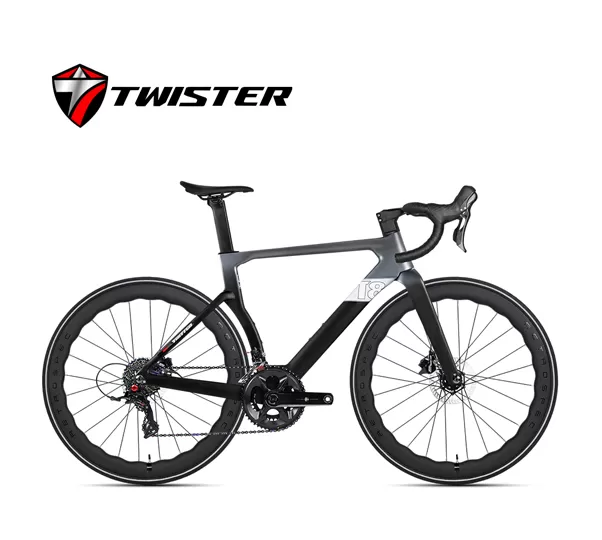

| Bike Color | Blue white / White green / Pink white / Black dark gray / Pink / Light cyan / Light green / Black light gray / Red yellow / Purple white / Black white / Black silver, Holographic | |
| Net Weight | 9.3KG | 9.1KG |
| Frame | T8 (Disc&thru-axle 12×142), high modulus Carbon fiber, Aero, Inner-Cables, Gloss or Matte, UV decals | |

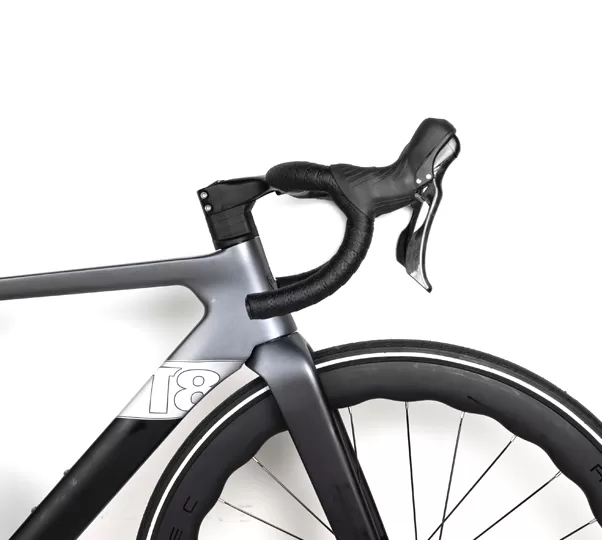

| Handelbar Sets | TW,Aluminum alloy, Integrated Handlebar&Stem(400*90mm), full Inner-Cables | |

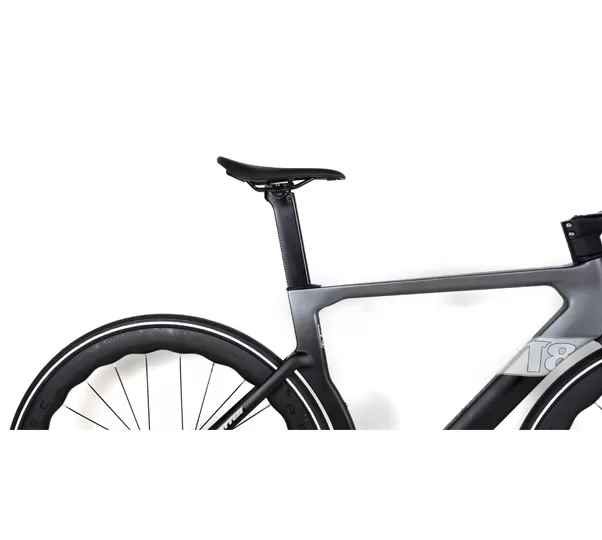

| Seat Post | High modulus Carbon fiber, Aero-Racing | |
| Clamps | Hidden Screw Fit to Frame | |
| Fork | T8 (Disc&thru-axle 12×100), high modulus Carbon fiber, 700C | |
| Head Sets | Alu alloy CNC with sealed-Bearings 52*52mm | |
| Washer | Special for interner cables routing | |

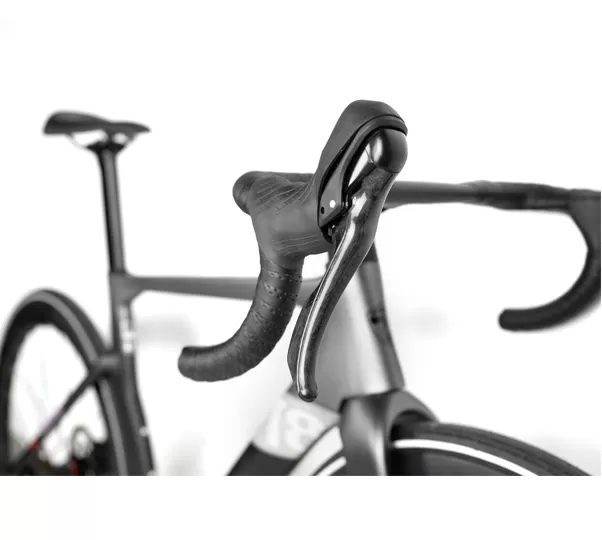

| Derailleur Handle | RETROSPEC(SENSAH HRD6900-R)-2*12S, hydr.handle | |
| Front Derailleur | SHIMANO 105 | |

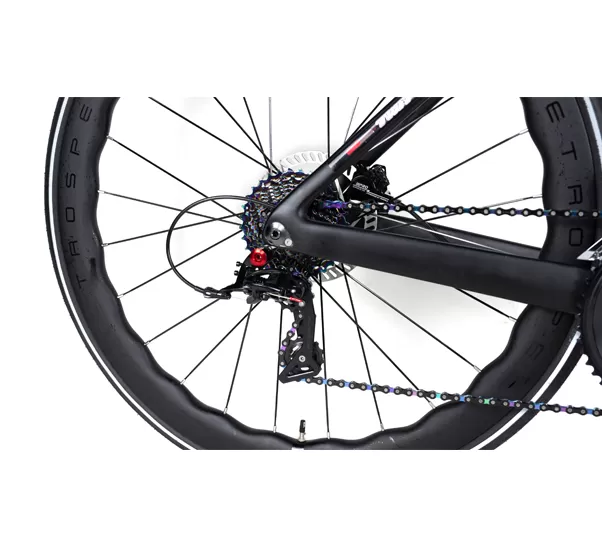

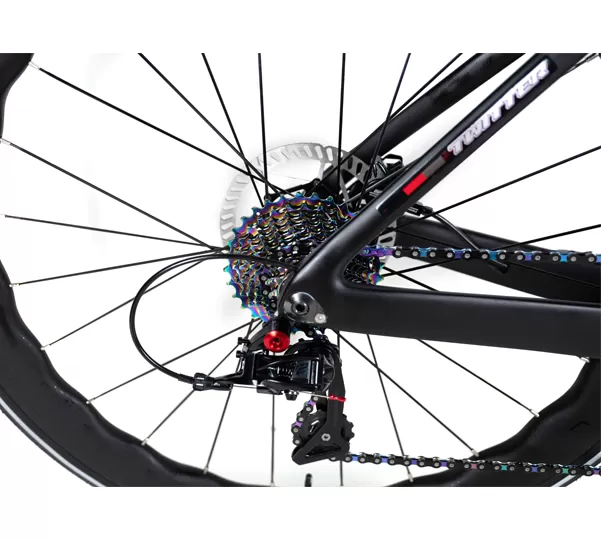

| Rear Derailleur | RETROSPEC(SENSAH RD8500-R-GS)-12S | |

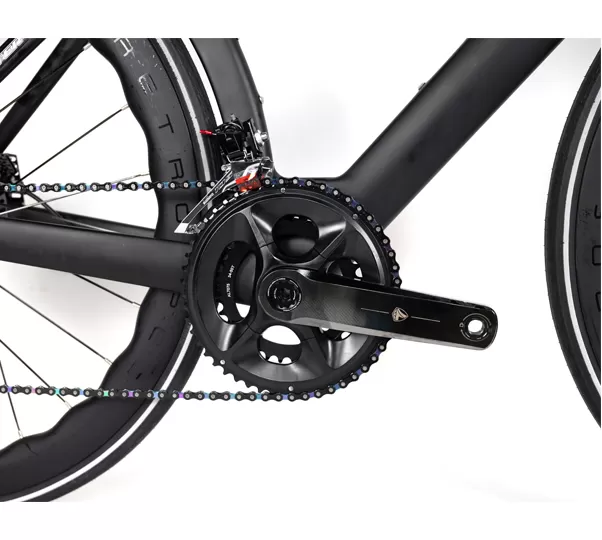

| Cranksets | TW Alu alloy 7075-DUB Hollow 34-50T | |

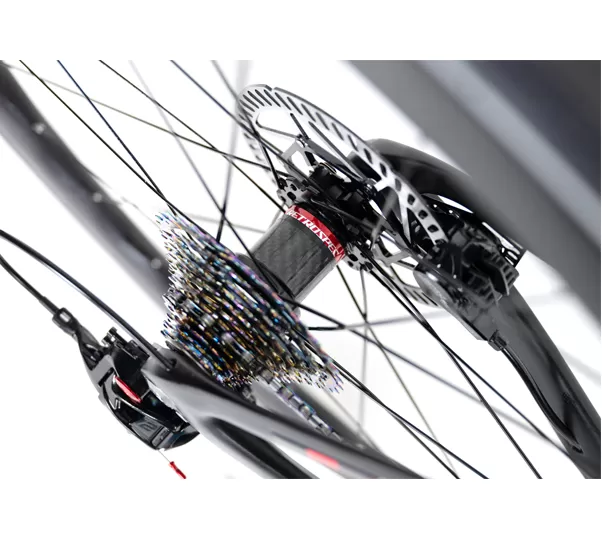

| Cassettes | SUNSHINE-12S, 11-32T, Silver | SUNSHINE-12S, 11-32T, Colorful |
| Chain | SUMC-12S | SUMC-12S, Colorful |
| BB | DUB Thread T47*29mm pressed, Hollow&sealed Bearings | |

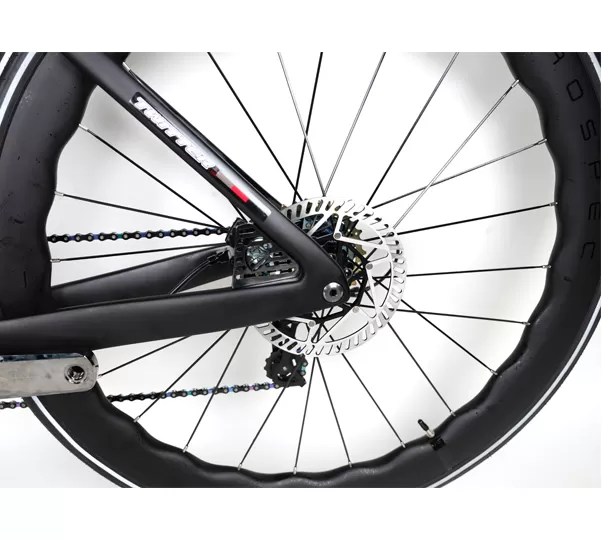

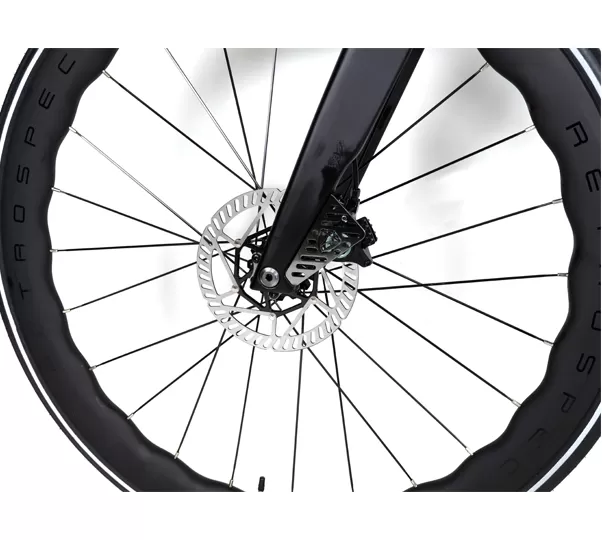

| Brake | RS(SENSAH G100), flat-mount & full Hydr.disc, 160/160 | RS, cable pull Hydr brake,160/160mm, Colorful disc |

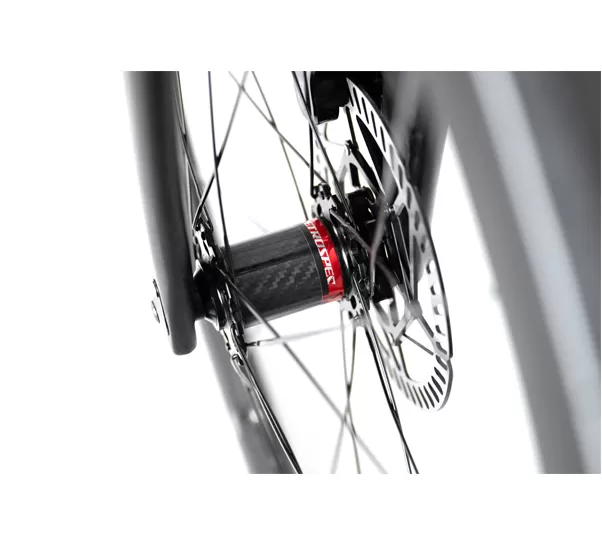

| Hubs | RS, Alu alloy, 4-sealed Bearings, Slotted, F24*R24 holes, Disc&thru-axle F12×100_R12×142mm | RS, Alu alloy&carbon fiber, 4-sealed Bearings, Slotted, F24*R24 holes, Disc&thru-axle F12*100_R12*142 |
| Rim | RS, Alu alloy AL7005, Double wall, Matte, W19×H38mm×700C | RS, high modulus Carbon fiber&Wave, W28×H50mm |
| Spoke | SHUNJIU, Circular 14G | SHUNJIU, Flat 14G |
| Tyre | RS foldable, with reflective edges, 700*28C | |
| Belt | PU with Comfortable&Skid resistant | |
| Saddle | Comfortable&lightweight for racing | |
| Pedals | Alu alloy with Lightweight&Skid resistant | |
| Cables | JAGWIRE | |
| Accessories | Standard safety reflector for Handelbar+Seat post+Front wheel+Rear wheel | |
| PC bottle cage+Tools | ||
| TWITTER Manual+Warranty card | ||
| Unit Price, USD, EXW (Level-1, MOQ 300pcs; Level-2, MOQ 125pcs; Level-3, MOQ 1pcs) | ||
| Holographic color frameset needs to add $30 on the following basis | ||
