| TWITTER Bike - Complete Vehicle Configuration and Quotation | |||
| Vehicle model | T8-ET (24 speed) | ||
| Standard Category | Wheel Peak 24 Speed Electric Transformer Oil Disc Aluminum Ring Carbon Handle | Wheel Peak 24 Speed Electric Transformer Oil Disc Wave Carbon Ring Carbon Handle | |
| Wheel diameter size | 700C | ||
| Frame height dimension | 43.5cm / 46cm / 48cm / 50cm / 52cm / 54cm | ||

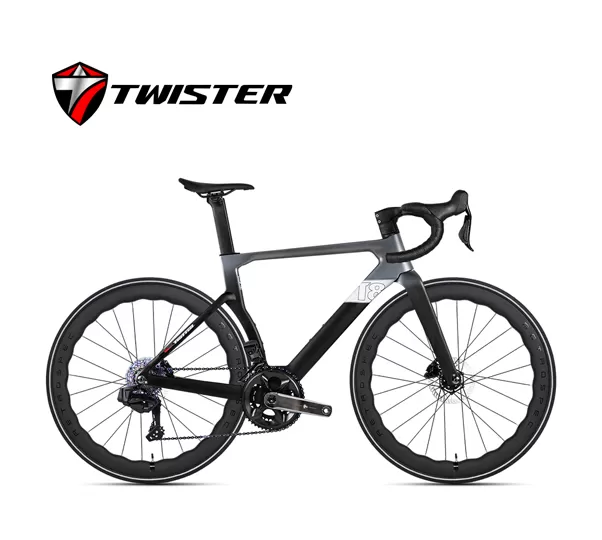

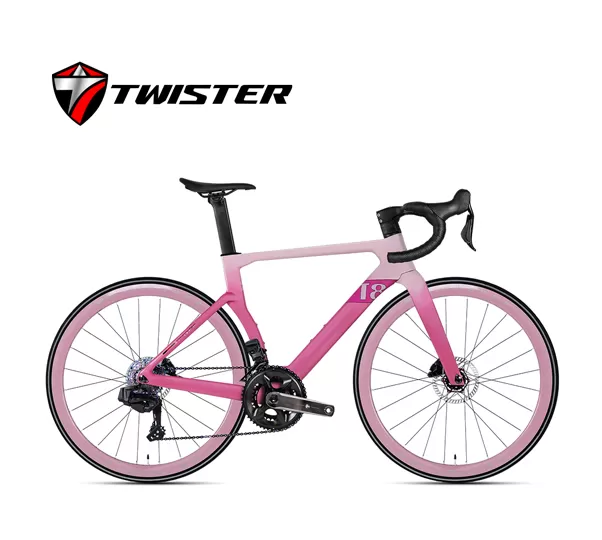

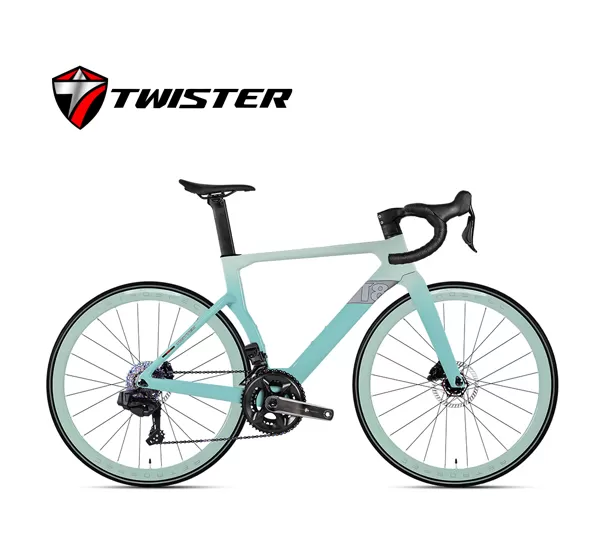

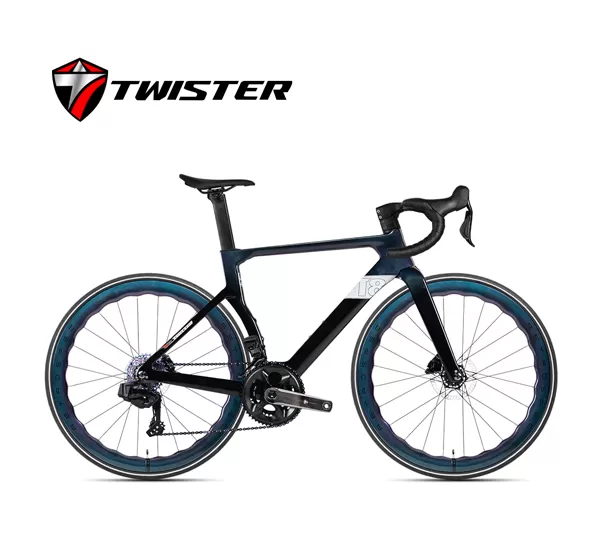

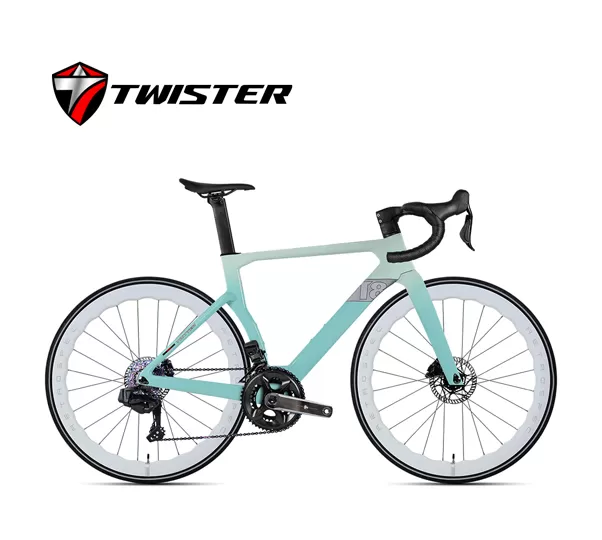

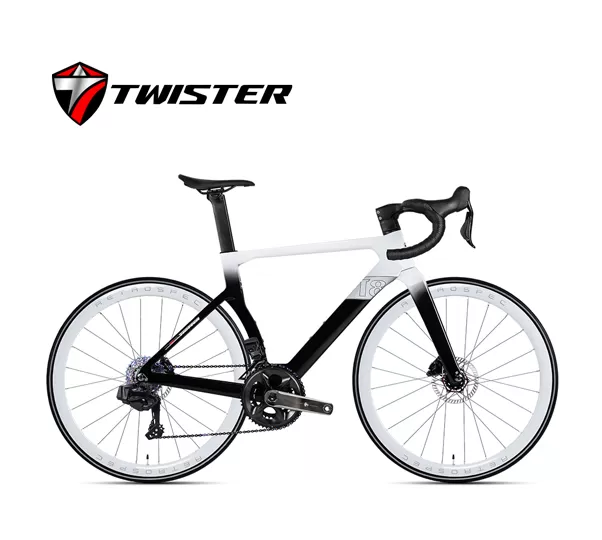

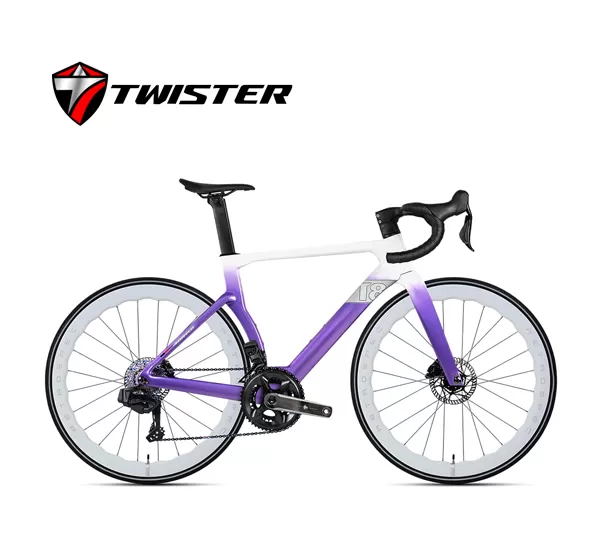

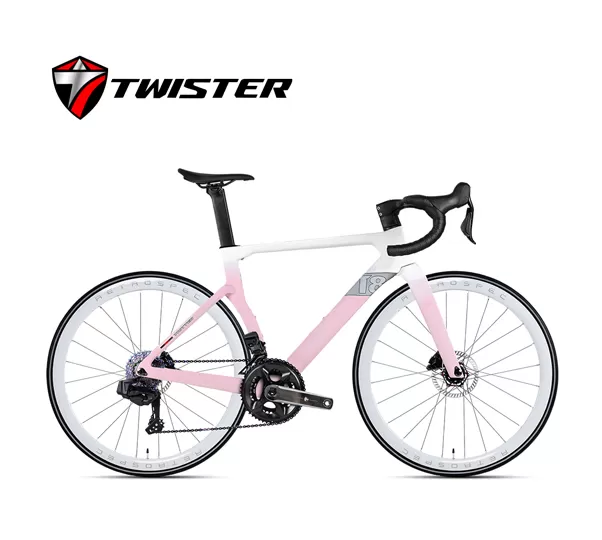

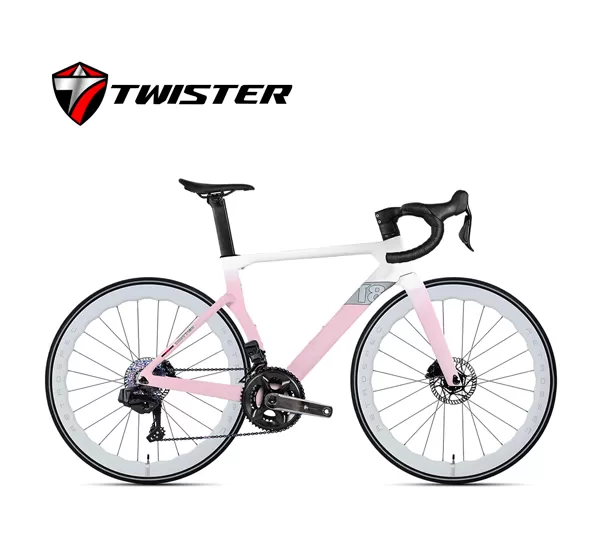

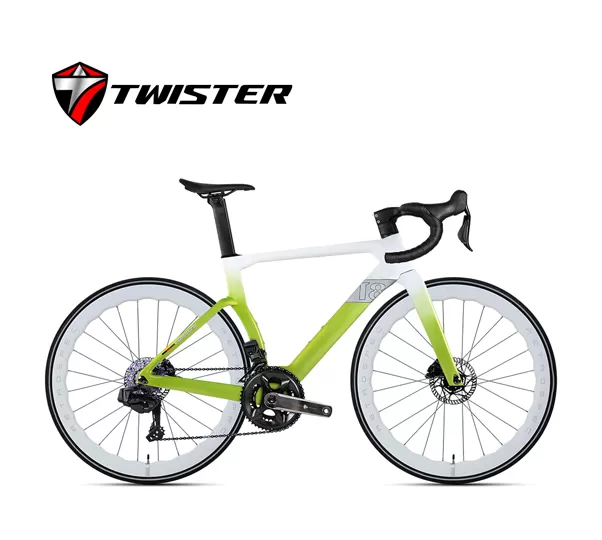

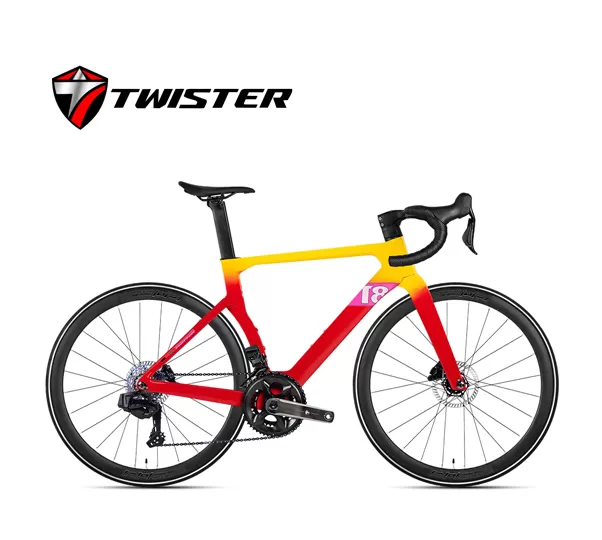

| Vehicle color | Blue white/green white/pink white/black dark gray/fruit pink/light green/black cement gray/red yellow/purple white/black and white/black silver, color changing black | ||
| Net weight of the whole vehicle | 9.1KG | 9.0KG | |
| frame | frame | T8 disc brake (disc brake drum shaft 12 * 142) high modulus carbon fiber/wind breaking racing/internal wiring/matte or glossy paint/UV label | |
| Group up | Group up | TW high modulus carbon fiber/wind breaking integrated bending handle and stand 400 * 90/420 * 100mm/full internal wiring | |
| seat tube | Frame matching/high modulus carbon fiber/water breaking droplet type | ||
| pipe clamp | Frame matching/built-in lock buckle with protective rubber sleeve | ||
| front fork | front fork | T8 disc brake (disc brake drum shaft 12 * 100) high modulus carbon fiber/road hard fork | |
| Headset | Aluminum alloy CNC Peilin 52 * 52mm | ||
| grommet | Dedicated for internal wiring | ||
| variable speed | Hand changes | WheelTop wheel peak, EDS TX Wireless Transformer -2 * 12 Speed (Oil Disc Manual Transformer) | |
| Front Derailleur | WheelTop wheel peak, EDS TX Wireless Transformer -2 Speed | ||
| Rear derailleur | WheelTop wheel peak, EDS TX Wireless Transformer -12 Speed | ||
| Crankset | TW aluminum alloy 7075-DUB hollow 34-50T | ||
| flywheel | SUGEK-12 Speed, 11-32T, Colorful | ||
| chain | SUMC-12 Speed Black Colorful | ||
| axis | DUB thread T47 * 29mm, hollow Peilin | ||
| brake | brake | WheelTop wheel peak, flat all oil disc brake, colorful black disc 160/160mm | |
| Wheel set | Flower drum | RS lightweight aluminum alloy+carbon fiber/four pin card/front 24 and rear 24 holes/disc brake barrel shaft F12 * 100_S12 * 142 | |
| Rim | RS lightweight aluminum alloy/double-layer reinforcement/frame height 38mm | RS high modulus carbon fiber/wave ring/frame height 50mm/opening | |
| spoke | High rigidity round bar 14G | High rigidity flat bar 14G | |
| Tire | RS Foldable with Reflective Edge, 700 * 28C | ||
| other | tape | PU breathable, comfortable, non slip | |
| seat cushion | Lightweight and comfortable racing type | ||
| pedal | Lightweight road bike pedals | ||
| Conduit | JAGWIRE | ||
| Add components | Front and rear reflectors+front and rear wheel reflectors | ||
| Comes with accessories | PC kettle holder+tools | ||
| TW manual+warranty card+transformer charger and manual | |||
| Domestic dealer quotation, RMB (color changing frame set, plus 200 yuan on the following price basis; Color changing carbon ring on the basis of regular carbon ring+100 yuan) | |||
| The whole vehicle comes standard Loading order | |||
| T8-ET (24 speed) | Wheel Peak 24 Speed Electric Transformer Oil Disc Aluminum Ring Carbon Handle | Wheel Peak 24 Speed Electric Transformer Oil Disc Wave Carbon Ring Carbon Handle | |
| system | accessory | specifications | specifications |
| frame | frame | T8 disc brake drum shaft, carbon fiber highway | |
| Group up | Group up | TW carbon fiber integrated bending handle and stand 400 * 90/420 * 100mm, fully concealed wiring | |
| seat tube | Carbon fiber seat tube for frame matching | ||
| pipe clamp | Built in lock buckle and dust cover on the frame | ||
| front fork | front fork | T8 disc brake drum shaft, matched with carbon fiber hard fork 700C | |
| Headset | Bearing 52 * 52mm | ||
| grommet | High strength lightweight nylon/internal wiring special | ||
| variable speed | Hand changes | WheelTop Wheel Peak, EDS TX Wireless Transformer -2 * 12 Speed Oil Disc Manual Transformer | |
| Front Derailleur | WheelTop Wheel Peak, EDS TX Wireless Change-2 Speed | ||
| Rear derailleur | WheelTop Wheel Peak, EDS TX Wireless Transformer -12 Speed | ||
| Crankset | TW aluminum alloy 7075-DUB hollow 34-50T | ||
| flywheel | SUGEK-12 Speed, 11-32T, Colorful | ||
| chain | SUMC-12 Speed Black Colorful | ||
| axis | DUB thread T47 * 29mm, hollow Peilin | ||
| brake | brake | WheelTop wheel peak, flat all oil disc brake+colorful black disc 160/160mm | |
| Brake handle | |||
| Wheel set | Flower drum | RS aluminum+carbon fiber/four axis/highway card type/front 24, rear 24 hole side pull/bucket axle disc brake six nails+rotary lock rod | |
| Rim | 700C/aluminum alloy/double-layer 38 blade (RS-UV standard) | 700C/Carbon Fiber/Wave Ring $50 (RS Alphabet) | |
| spoke | Ordinary round bar, elbow | Ordinary flat bar, elbow | |
| Tire | RS Foldable with Reflective Edge, 700 * 28C | ||
| attachment | tape | PU breathable holes for comfort and anti slip | |
| seat cushion | SR1.0 short nose hollow | ||
| pedal | Lightweight road pedals | ||
| Tripod | / | ||
| Conduit | JAGWIRE | ||
| retrofitting | Front and rear reflectors+spoke reflectors | ||
| equipment | PC water rack+tools | ||
| other | TW warranty card+TW manual+matching peak load transformer charger and manual | ||
