| TWITTER Bike - Complete Vehicle Configuration and Quotation | ||

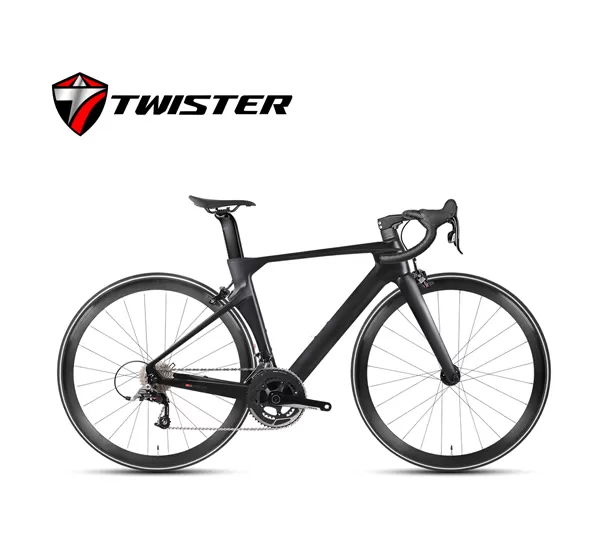

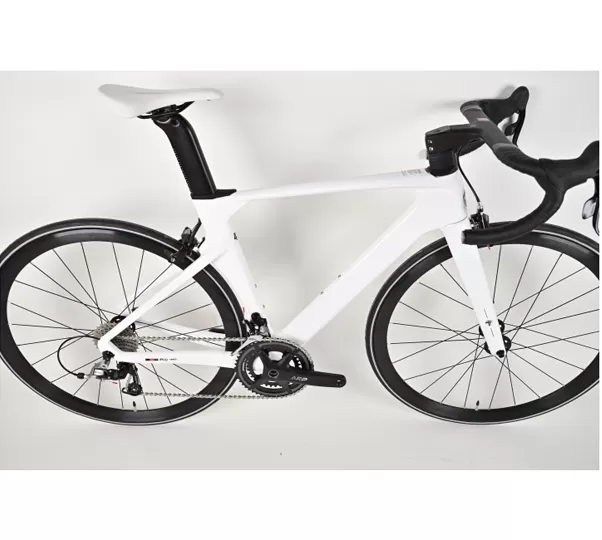

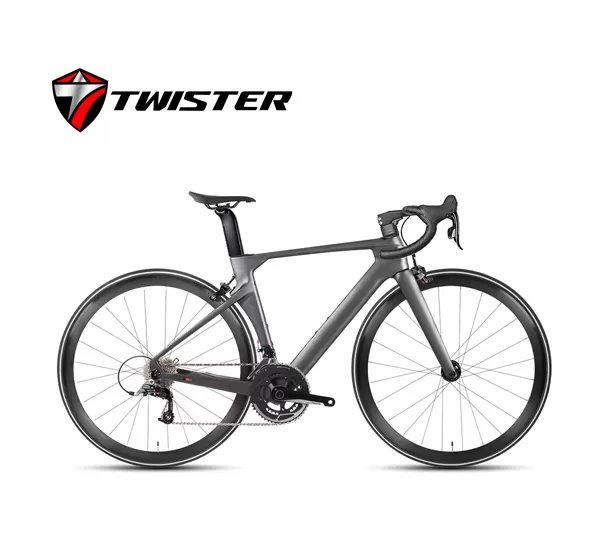

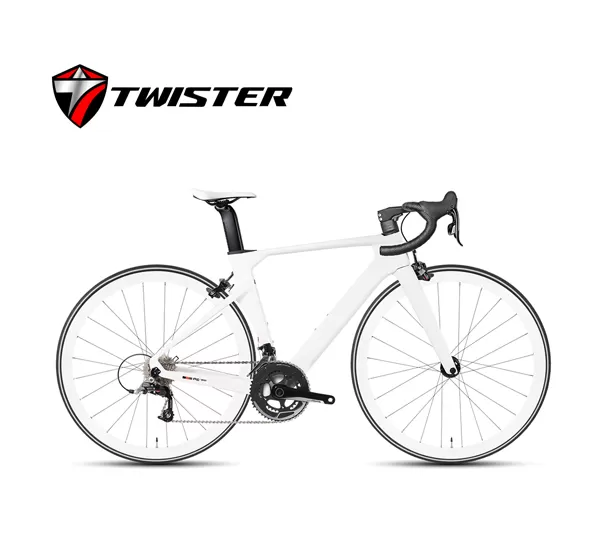

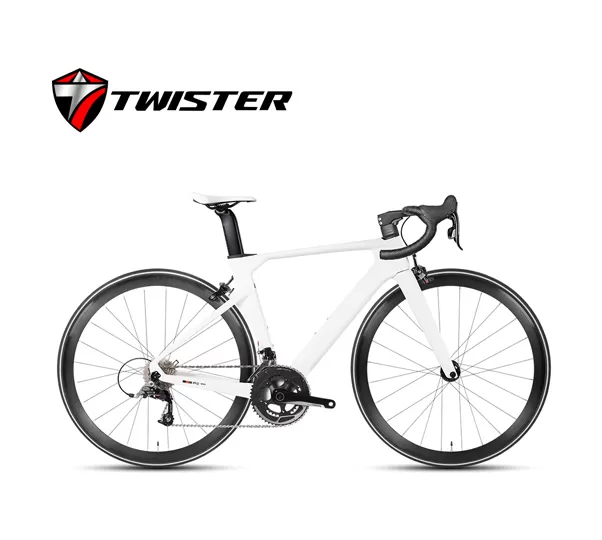

| Vehicle model | R10pro Ring Brake | |
| Standard Category | RIVAL-22 Speed Small Set Aluminum Wheel Carbon Handle | |
| Wheel diameter size | 700C | |
| Frame height dimension | 46cm / 48cm / 50cm / 52cm / 54cm | |
| Vehicle color | Black/White/Dark Grey, Full Color Change | |
| Net weight of the whole vehicle | 8.8KG | |
| frame | frame | R10pro Ring Brake Edition High Modulus Carbon Fiber/Wind Breaking Racing/Internal Wiring/Bright or Matte Paint/UV Laser Label |
| Group up | Group up | TW high modulus carbon fiber/wind breaking integrated bending handle and stand 420 * 90mm/full internal wiring |
| seat tube | Frame matching/high modulus carbon fiber/water breaking droplet type | |
| pipe clamp | Frame matching/built-in lock buckle with protective rubber sleeve | |
| front fork | front fork | R10 Ring Brake Edition, High Modulus Carbon Fiber/Highway Hard Fork/UV Laser Label |
| Headset | Aluminum alloy CNC Peilin 52 * 52mm | |
| grommet | Dedicated for internal wiring | |
| variable speed | Hand changes | SRAM RIVAL-2*11speed |

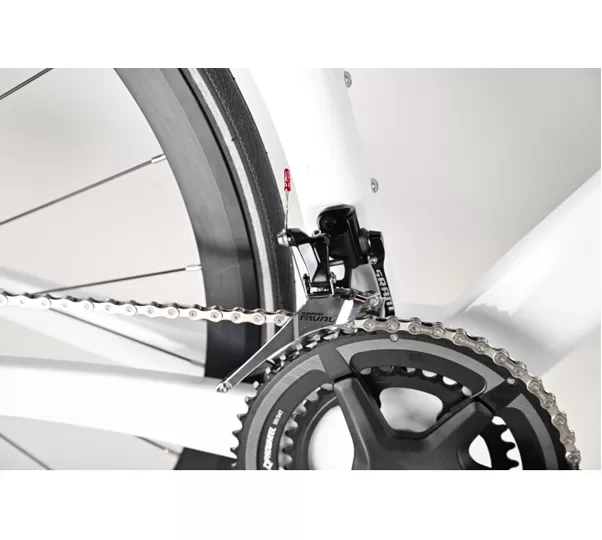

| Front Derailleur | SRAM RIVAL | |

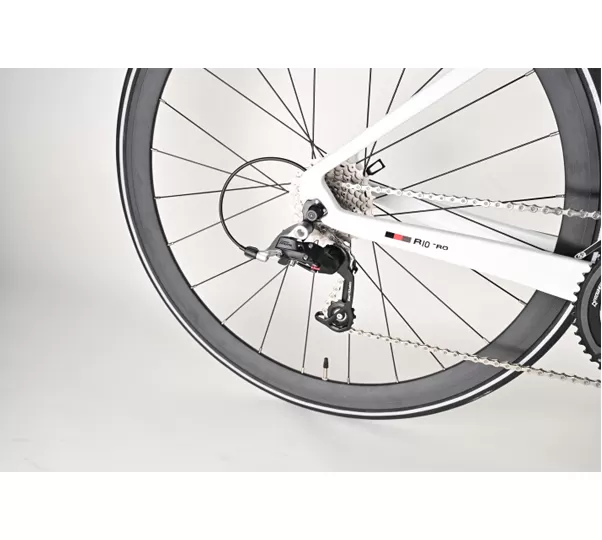

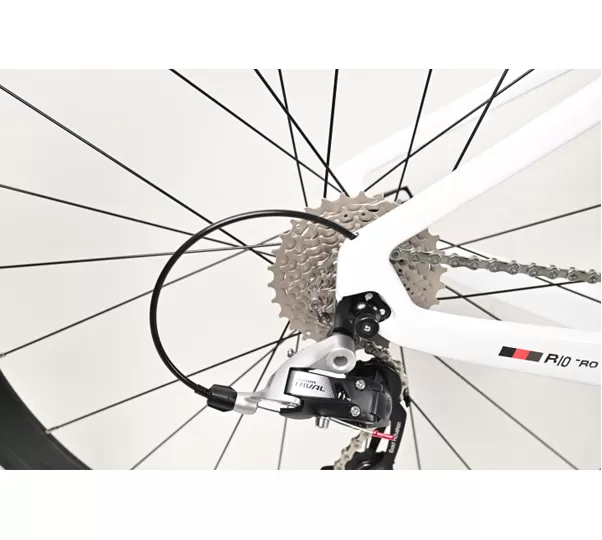

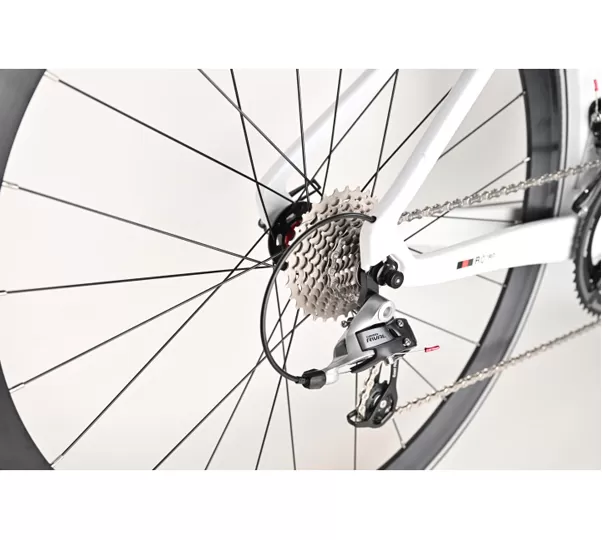

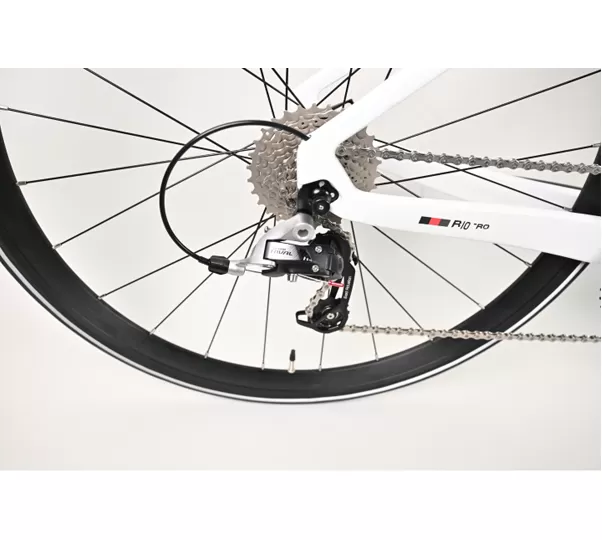

| Rear derailleur | SRAM RIVAL-11speed | |
| Crankset | SRAM RIVAL hollow 50/34T | |
| flywheel | SUNSHINE-11speed 11-30T | |
| chain | SUMC-11speed | |
| axis | BB86 * 46 * 24mm press in, hollow Peilin | |

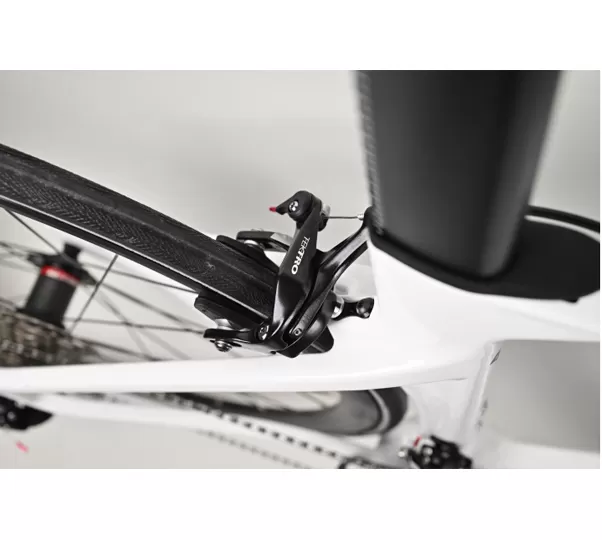

| brake | brake | TEKTRO lightweight aluminum alloy highway C brake |

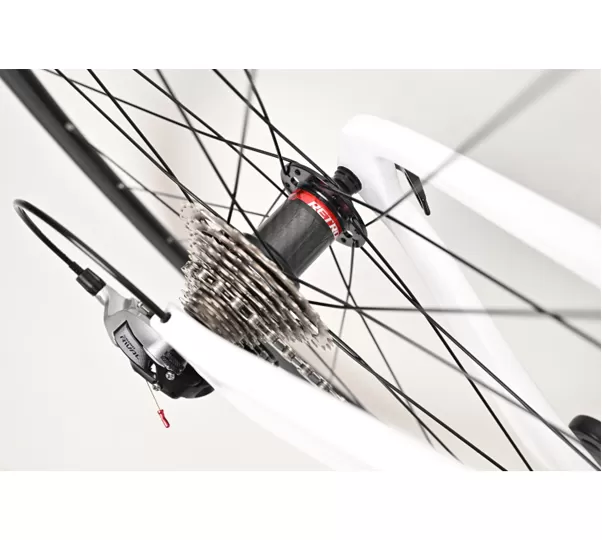

| Wheel set | Flower drum | RS lightweight aluminum alloy+carbon fiber/four pin card/front 24 and rear 24 holes/disc brake barrel shaft F12 * 100_S12 * 142 |
| Rim | RS lightweight aluminum alloy/double-layer reinforcement/frame height 36mm/700C | |
| spoke | High rigidity 14G round bar | |
| Tire | RS Foldable with Reflective Edge, 700 * 25C | |
| other | tape | PU breathable, comfortable, non slip |
| seat cushion | Lightweight and comfortable racing type | |
| pedal | Lightweight aluminum alloy anti slip | |
| Conduit | JAGWIRE | |
| Add components | Front and rear reflectors+front and rear wheel reflectors | |
| Comes with accessories | PC kettle holder+tools | |
| TW manual+warranty card | ||
| Domestic dealer quotation, RMB (if choosing the color changing frame set, add 200 yuan on top of the following price) | ||
| Purchase price | ||
| Minimum retail price | ||
| The whole vehicle comes standard Loading order | ||
| R10 circle brake | RIVAL-22 Speed Small Set Aluminum Wheel Carbon Handle | |
| system | accessory | specifications |
| frame | frame | R10 Circle Brake Carbon Fiber Highway |
| Group up | Group up | TW carbon fiber integrated handlebar and stand, fully internal wiring |
| seat tube | Carbon fiber seat tube for frame matching | |
| pipe clamp | Built in lock buckle and dust cover on the frame | |
| front fork | front fork | R10 Circle Brake with Carbon Fiber Hard Fork 700C |
| Headset | TW6.0M Bearing 52*52mm | |
| grommet | Ultra light and high-strength nylon/special for internal wiring | |
| variable speed | Hand changes | SRAM RIVAL-2*11speed |
| Front Derailleur | SRAM RIVAL | |
| Rear derailleur | SRAM RIVAL-11speed | |
| Crankset | Haomeng ARP aluminum alloy hollow 34-50T | |
| flywheel | Rihui -11 speed 11-30T silver | |
| chain | SUMC-11 Speed Silver Grey | |
| axis | BB386-86 * 46 * 24mm press in | |
| brake | brake | Yan Hao TEKTRO-R313 Aluminum Highway C Brake |
| Brake handle | ||
| Wheel set | Flower drum | RS aluminum alloy four axis side pull/highway card/front 24, rear 24 holes/plain aluminum quick release |
| Rim | 700C/aluminum alloy double-layer 36 blade (RS-UV standard) | |
| spoke | Round bar, elbow | |
| Tire | RS Foldable with Reflective Edge, 700 * 25C | |
| attachment | tape | PU breathable holes for comfort and anti slip |
| seat cushion | SR1.0 short nose hollow | |
| pedal | Feimin FP-935ZU aluminum alloy | |
| Tripod | / | |
| Conduit | JAGWIRE | |
| retrofitting | Front and rear reflectors+spoke reflectors | |
| equipment | PC water rack+tools | |
| other | TW warranty card+TW instruction manual | |
