| ***Shenzhen First Technology CO.,LTD. ***TWITTER.Bicycle - Configuration+Quatation | ||

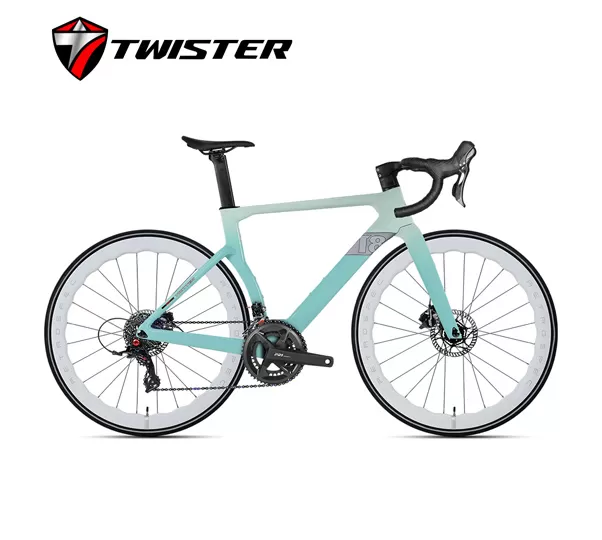

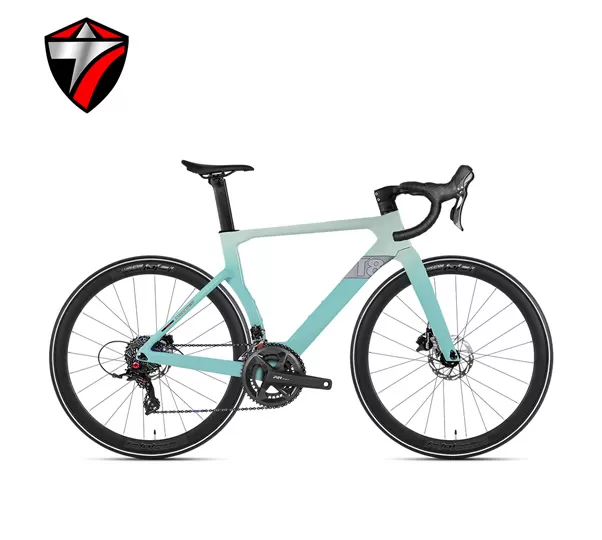

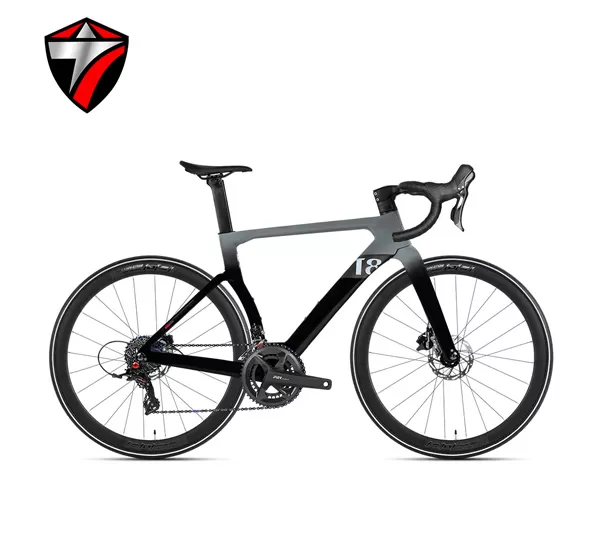

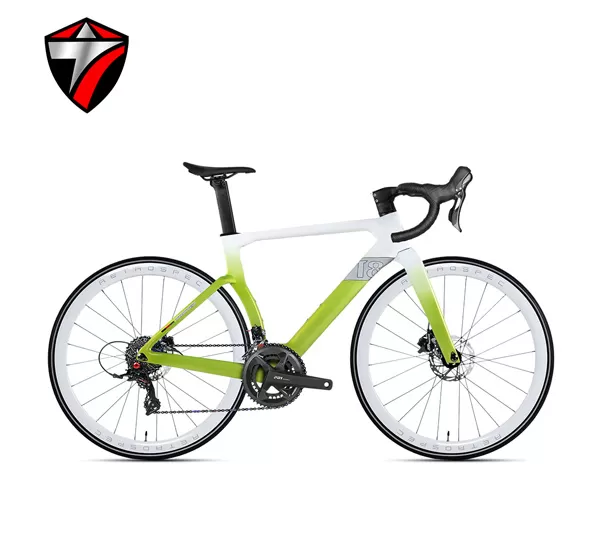

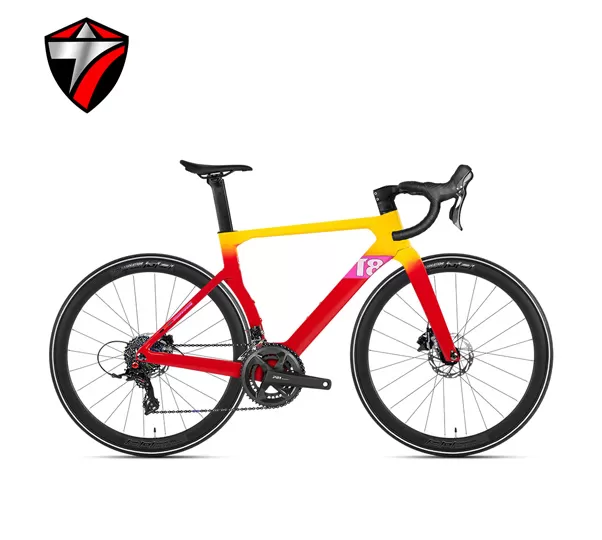

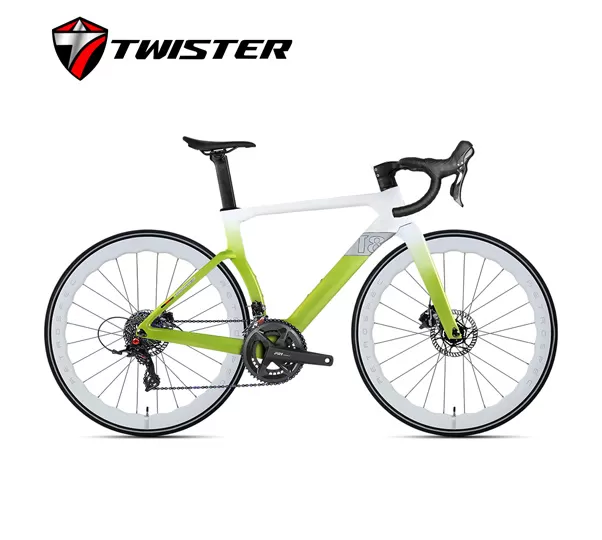

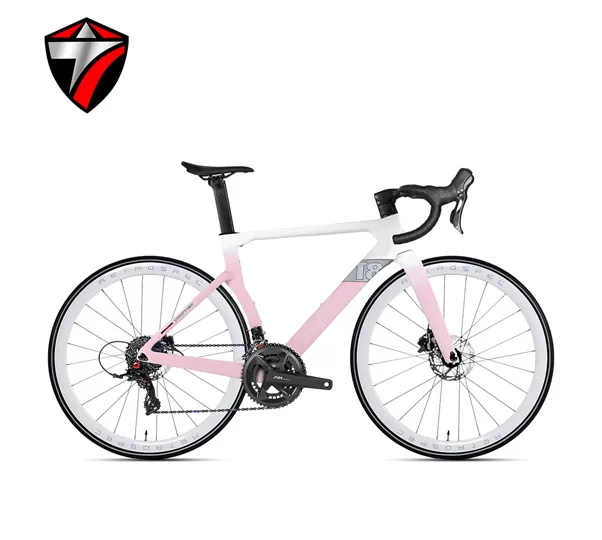

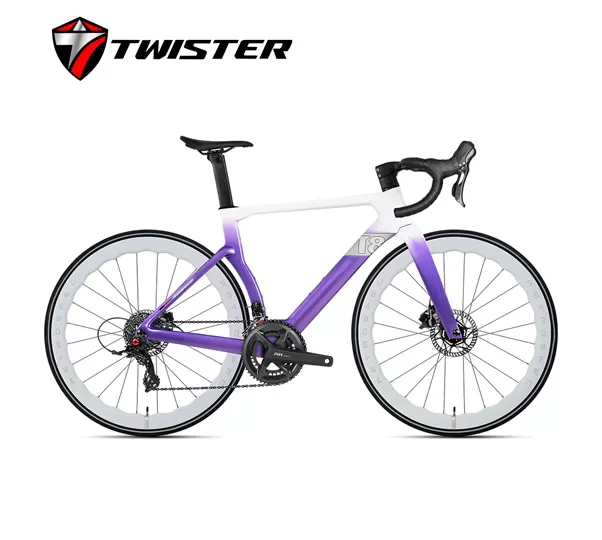

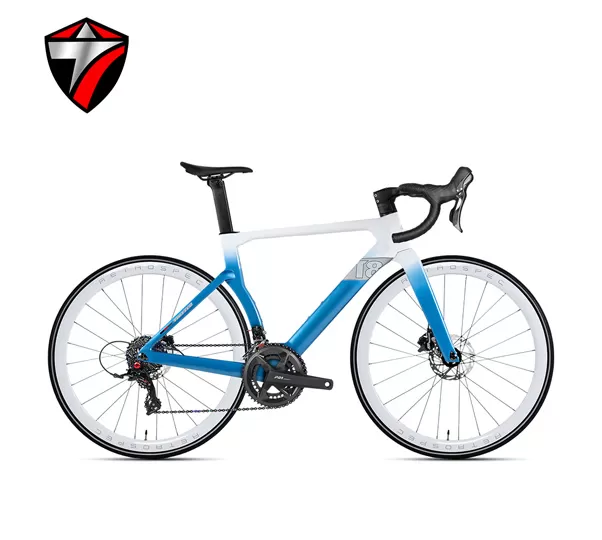

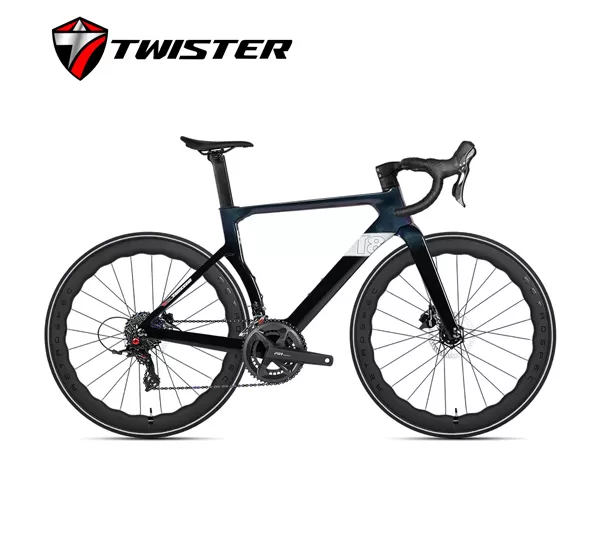

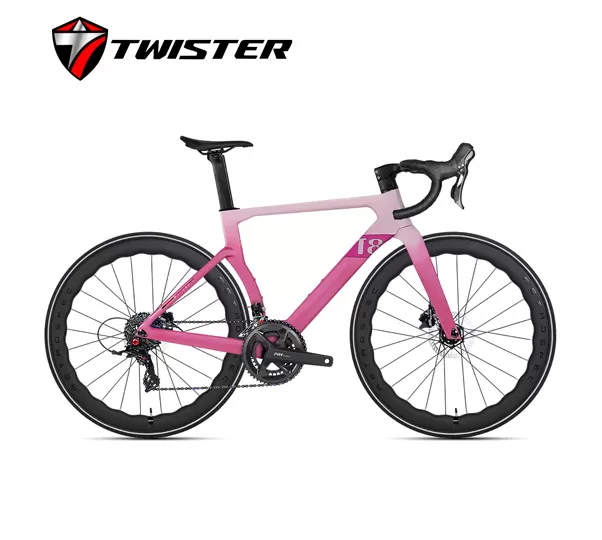

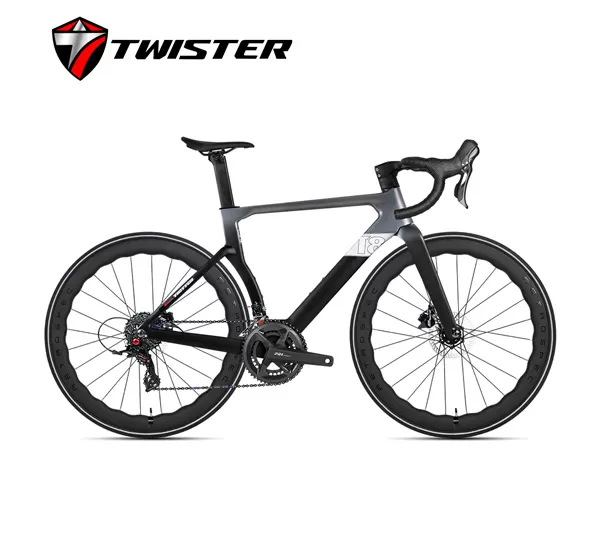

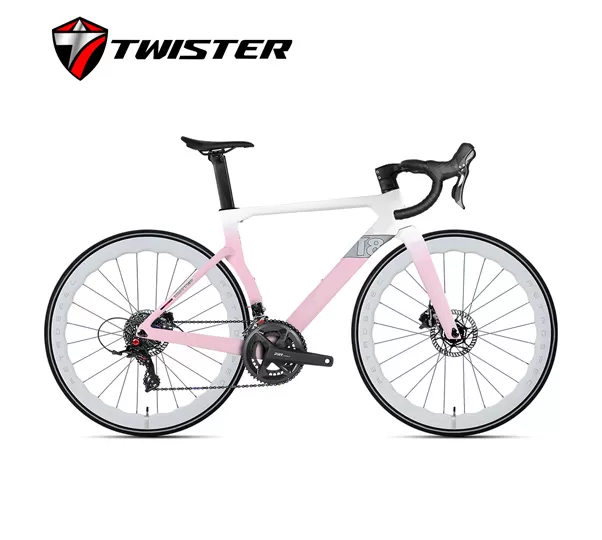

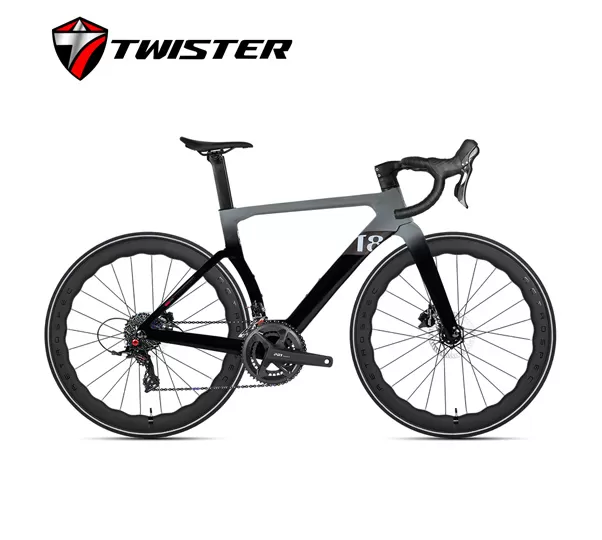

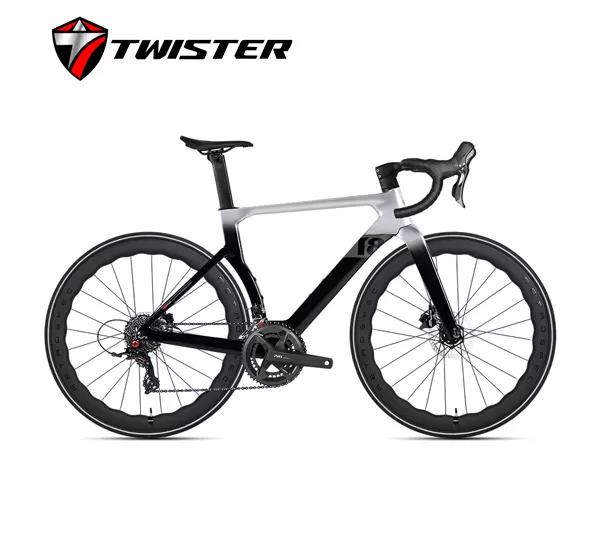

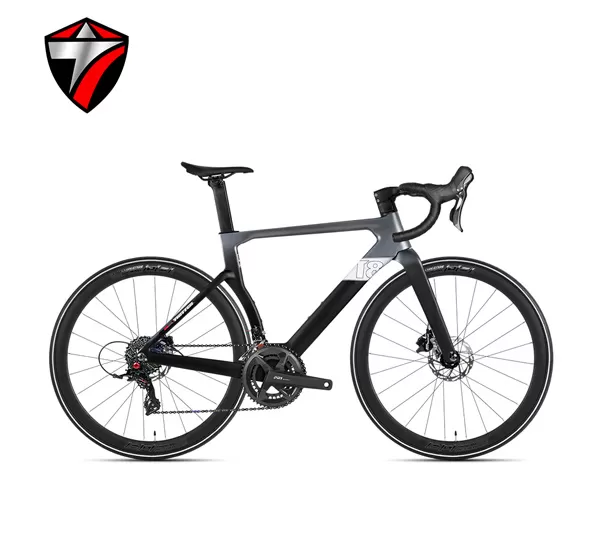

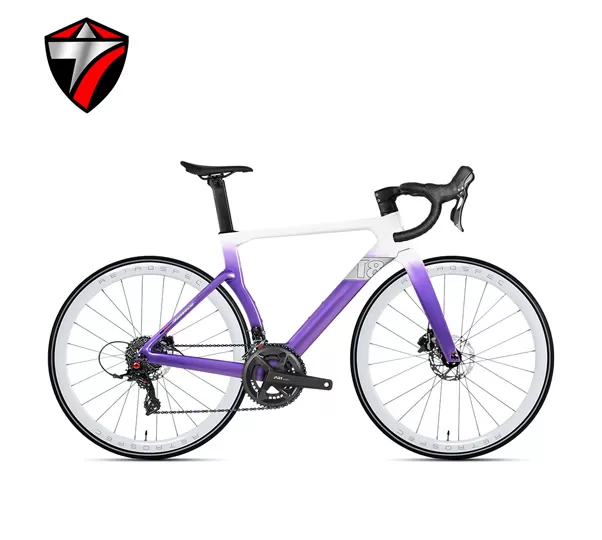

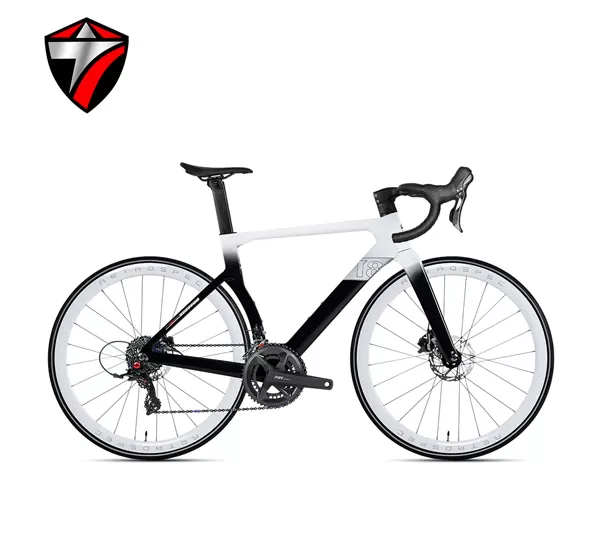

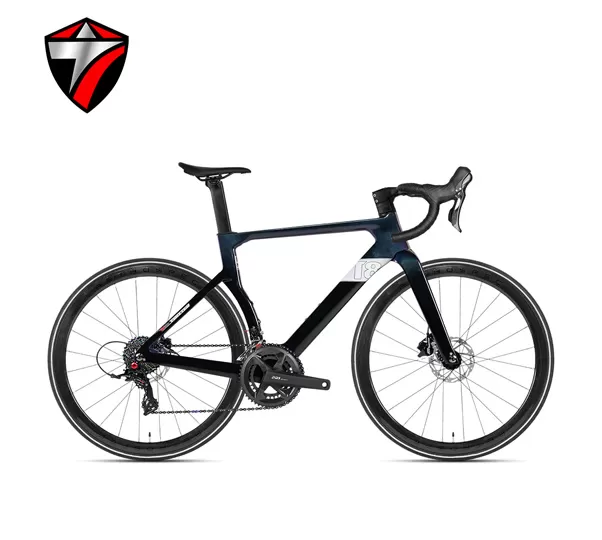

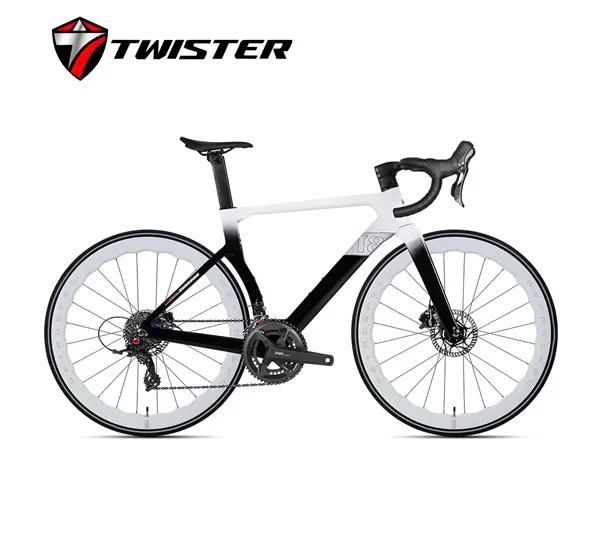

| Bike Model | T8-Disc | |
| ConfRev | RS-24S, alloy wheel | RS-24S,carbon Rim&Wave |
| Wheel Size | 700C | |
| Frame Height | 43.5cm / 46cm / 48cm / 50cm / 52cm / 54cm | |
| Bike Color | Blue white / White green / Pink white / Black dark gray / Pink / Light cyan / Light green / Black light gray / Red yellow / Purple white / Black white / Black silver, Holographic | |
| Net Weight | 9.3KG | 9.1KG |
| Frame | T8 (Disc&thru-axle 12×142), high modulus Carbon fiber,Aero, Inner-Cables,Gloss or Matte, UV decals | |
| Handelbar Sets | TW,Aluminum alloy, Integrated Handlebar&Stem(400*90mm), full Inner-Cables | |
| Seat Post | High modulus Carbon fiber,Aero-Racing | |
| Clamps | Hidden Screw Fit to Frame | |
| Fork | T8(Disc&thru-axle 12×100), high modulus Carbon fiber, 700C | |
| Head Sets | Alu alloy CNC with sealed-Bearings 52*52mm | |
| Washer | Special for interner cables routing | |
| Derailleur Handle | RETROSPEC(SENSAH HRD6900-R)-2*12S, hydr.handle | |
| Front Derailleur | SHIMANO 105 | |
| Rear Derailleur | RETROSPEC(SENSAH RD8500-R-GS)-12S | |
| Cranksets | TW Alu alloy 7075-DUB Hollow 34-50T | |
| Cassettes | SUNSHINE-12S,11-32T,Silver | SUNSHINE-12S,11-32T,Colorful |
| Chain | SUMC-12S | SUMC-12S,Colorful |
| BB | DUB Thread T47*29mm pressed, Hollow&sealed Bearings | |
| Brake | RS(SENSAH G100), flat-mount&full Hydr.disc,160/160 | RS, cable pull Hydr brake,160/160mm, Colorful disc |
| Hubs | RS, Alu alloy,4-sealed Bearings,Slotted,F24*R24 holes, Disc&thru-axle F12×100_R12×142mm | RS, Alu alloy&carbon fiber,4-sealed Bearings,Slotted,F24*R24 holes,Disc&thru-axle F12*100_R12*142 |
| Rim | RS, Alu alloy AL7005,Double wall,Matte,W19×H38mm×700C | RS, high modulus Carbon fiber&Wave,W28×H50mm |
| Spoke | SHUNJIU, Circular 14G | SHUNJIU, Flat 14G |
| Tyre | RS foldable, with reflective edges, 700*28C | |
| Belt | PU with Comfortable&Skid resistant | |
| Saddle | Comfortable&lightweight for racing | |
| Pedals | Alu alloy with Lightweight&Skid resistant | |
| Cables | JAGWIRE | |
| Accessories | Standard safety reflector for Handelbar+Seat post+Front wheel+Rear wheel | |
| PC bottle cage+Tools | ||
| TWITTER Manual+Warranty card | ||
| Unit Price, USD, EXW ( Level-1, MOQ 300pcs; Level-2, MOQ 125pcs; Level-3, MOQ 1pcs ) | ||
| Holographic color frameset needs to add $30 on the following basis | ||
| Level-1 | ||
| Level-2 | ||
| Level-3 | ||
| Shenzhen First Technology Co., Ltd. Standard on all vehicles. Loading list | |||||||||||
| T8-Disc Brake | RS-24 Speed Oil Disc Aluminum Wheels with Integrated Aluminum Handlebar | RS-24 Speed Oil Disc Wave Carbon Rim One Piece Aluminum Handlebar | |||||||||
| System | Fittings | Specification | Specification | Color/Popular Color | Color change | ||||||
| Frames | Frames | T8-Disc Brake Barrel Axle Carbon Fiber Road | Blue And White | Green and white | Black Dark Gray | Pink and white | Black Cement Gray | Purple and white | Other | Color change black | |
| Handlebars | Handlebars | TW Aluminum alloy wind breaker one-piece handlebar and stem 400*90mm/full internal alignment | Black | Black | |||||||
| Seatposts | Carbon Fiber Seatpost | Black | Black | ||||||||
| Tube Clamps | Frame with built-in locker + dust cover | Black | Black | ||||||||
| Forks | Forks | T8-Disc Brake Barrel Shaft with Carbon Fiber Fork 700C | Blue And White | Greenish white | Black Dark Gray | Pink and white | Black Cement Gray | Purple and white | Other | Color change black | |
| Bowls | Bearing 52*52mm | Black | |||||||||
| Gaskets | Ultra-light, high-strength nylon/Internal cable routing | Black | |||||||||
| Shifters | Hand Shift | RS(SHUNTAI HRD6900-R)-2*12 Speed Oil Disc Hand Shift | |||||||||
| Front Derailleur | SHIMANO 105 | ||||||||||
| Rear Derailleur | RS(shuntai rd8500-r-gs)-12 speeds | ||||||||||
| Discs | TW Aluminum 7075-DUB Hollow 34-50T | ||||||||||
| Flywheel | Sunshine-12 speed, 11-32T | Sunshine-12 speed, Dazzling Color, 11-32T | |||||||||
| Chain | SUMC-12 speed Silver | SUMC-12 speed black colorful | |||||||||
| Center Shaft | Thread T47*29mm Press-in | ||||||||||
| Brakes | Brakes | RS(Shuntai G100) Flush Mount Full Oil Disc Brake 160/160 | RS(Shuntai G100) Flush Mount Full Oil Disc Brake + Black Colorful Disc 160/160 | ||||||||
| Brake Handle | |||||||||||
| Wheelsets | Hubs | RS Aluminum Alloy/Quad Axle/Road Cassette/Front 24 Rear 24 Hole Side Pull/Barrel Axle Disc Brake Six Spike+Rotary Lock Lever | RS Aluminum+Carbon Fiber/Quad Axle/Road Cassette/Front 24 Rear 24 Hole Side Pull/Barrel Axle Disc Brake Six Spike+Rotary Lock Lever | Black | Black | ||||||
| Rims | 700C/Aluminum double 38 blade(RS-UV label) | 700C/Carbon Fiber/Wave Rim 50 Blade | White | White | Black | White | Black | White | Full Color Change | ||
| Spokes | Round bar, elbow | Flat Bar, Elbow | Black | Black | |||||||
| Tires | RS Foldable with reflective edge, 700*28C | ||||||||||
| Accessories | Handlebar Strap | PU ventilation holes for comfort and anti-slip | Black | Black | |||||||
| Cushions | SR1.0 Short Nose Hollow | Black | Black | ||||||||
| Footsteps | Fei Min FP-935ZU Aluminum Alloy | Black | Black | ||||||||
| Kickstands | None | ||||||||||
| Cables | JAGWIRE | Black | Black | ||||||||
| Add-Ons | Front and rear reflectors + spoke reflectors | ||||||||||
| Equipment | PC Water Rack + Tools | ||||||||||
| Other | TW Warranty Card + TW Manual | ||||||||||
