| TWITTER Bike - Complete Vehicle Configuration and Quotation | ||

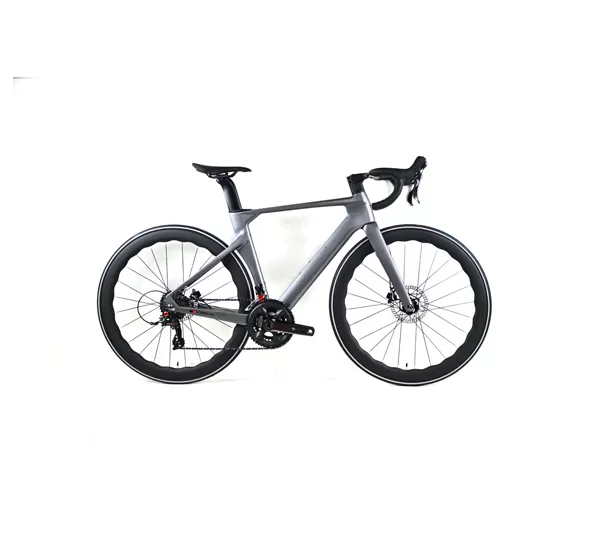

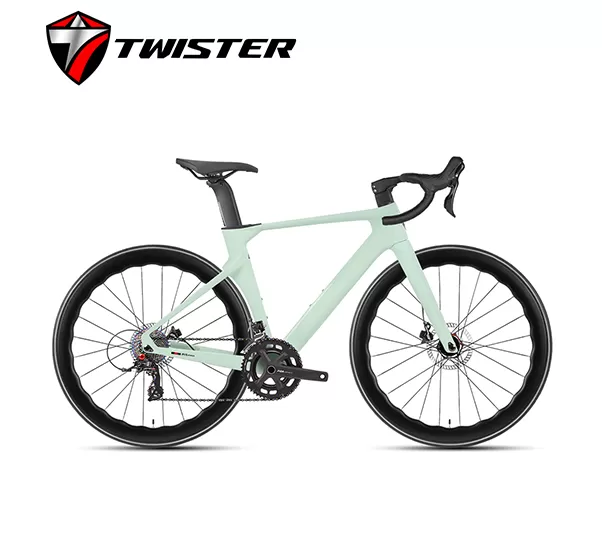

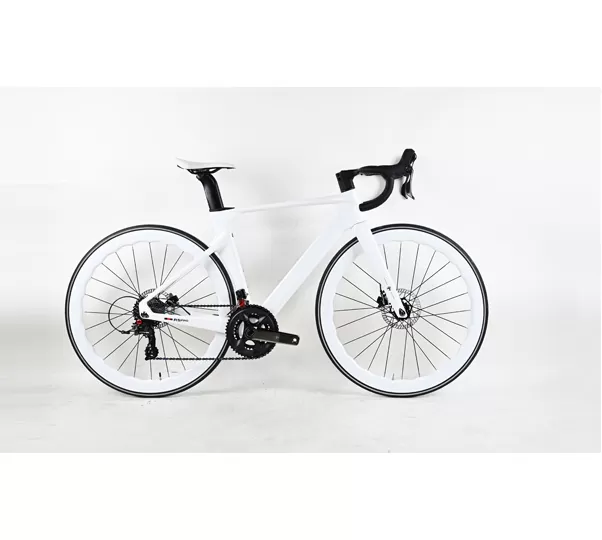

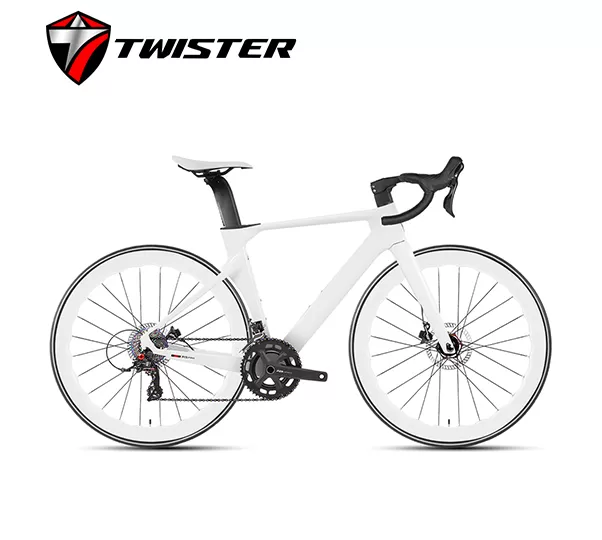

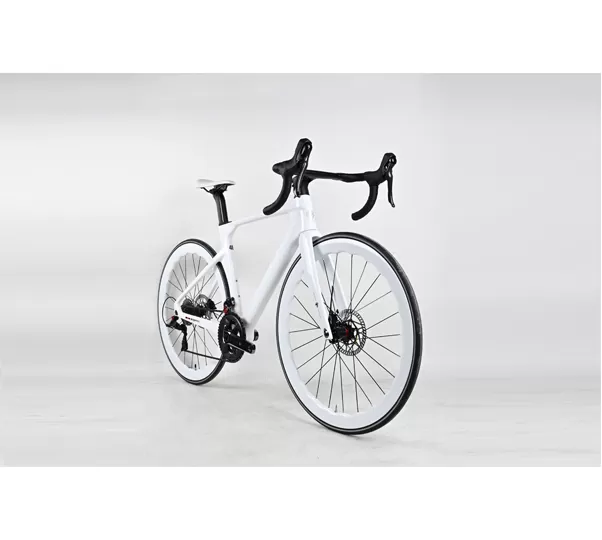

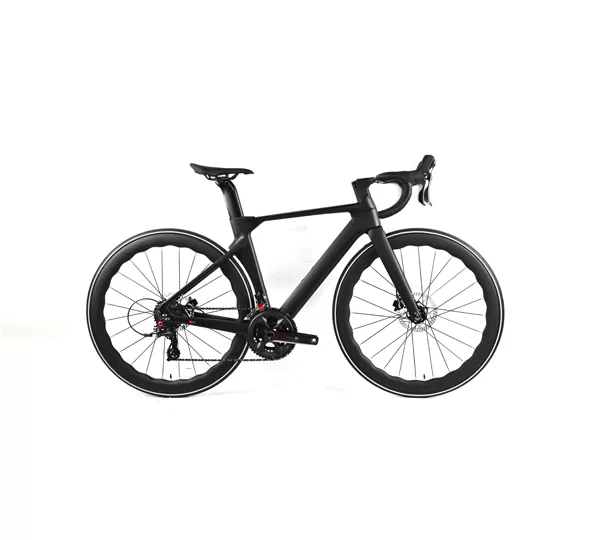

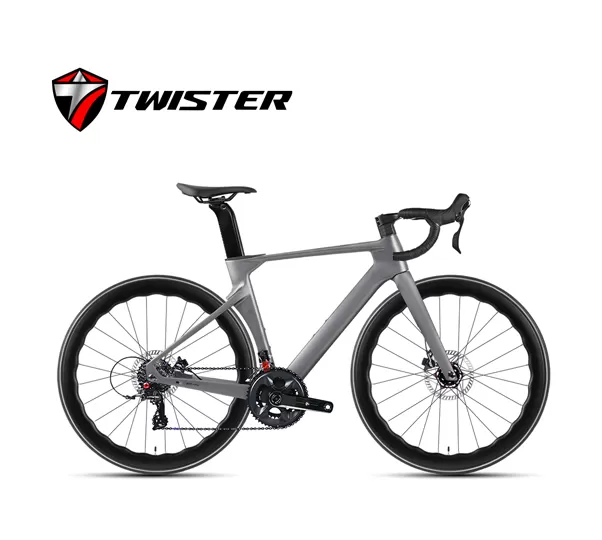

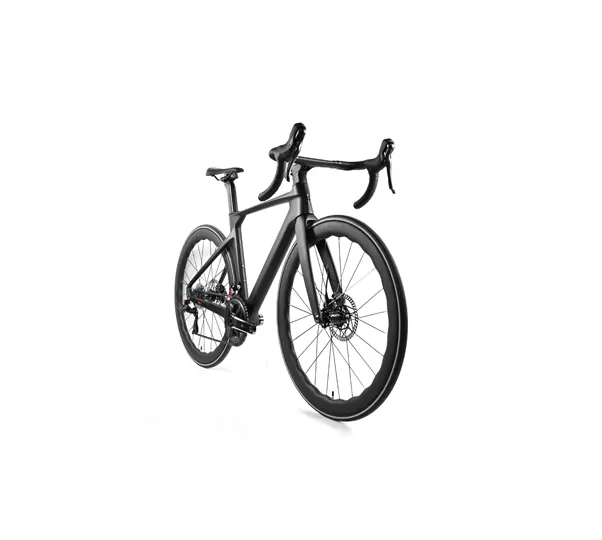

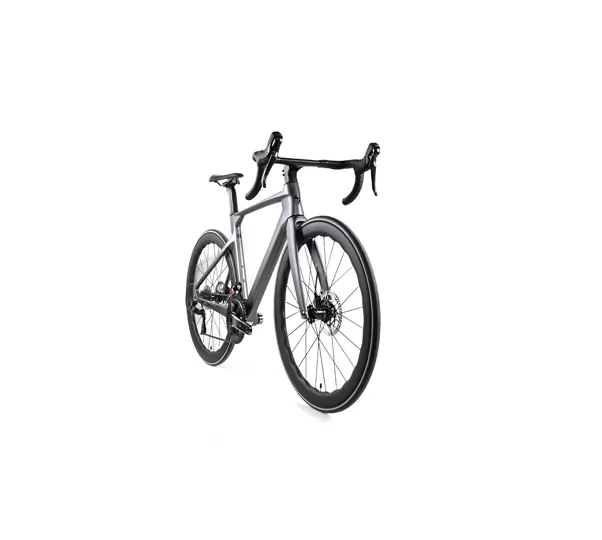

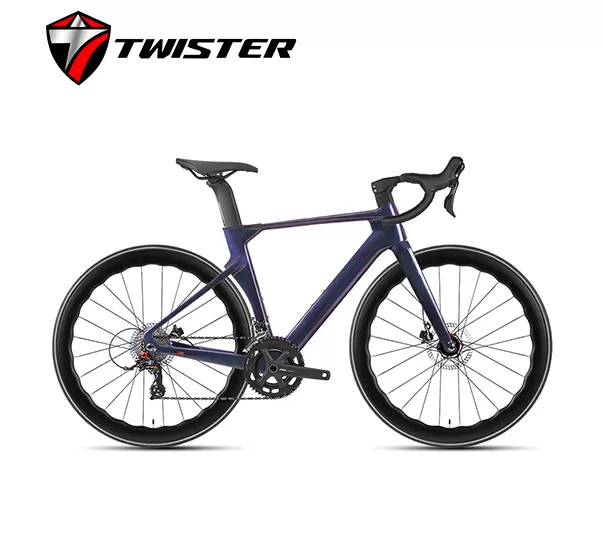

| Vehicle model | R5pro - Second Generation (Sports Edition) | |
| Standard Category | RS-24 speed oil disc wave carbon ring integrated aluminum handle | |
| Wheel diameter size | 700C | |
| Frame height dimension | 43.5CM / 46cm / 48cm / 50cm / 52cm / 54cm / 56CM | |

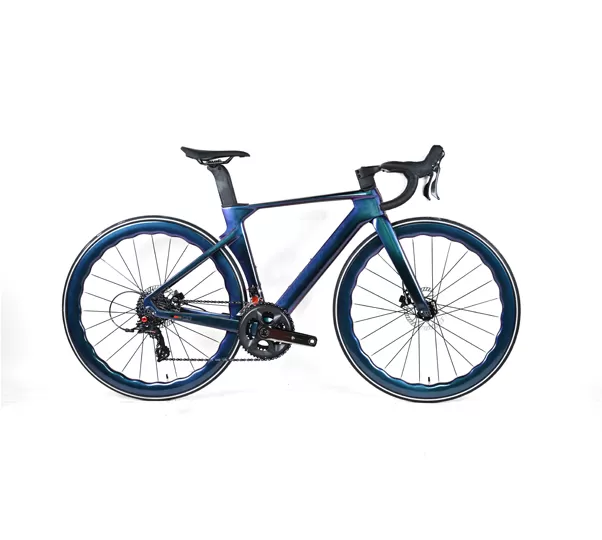

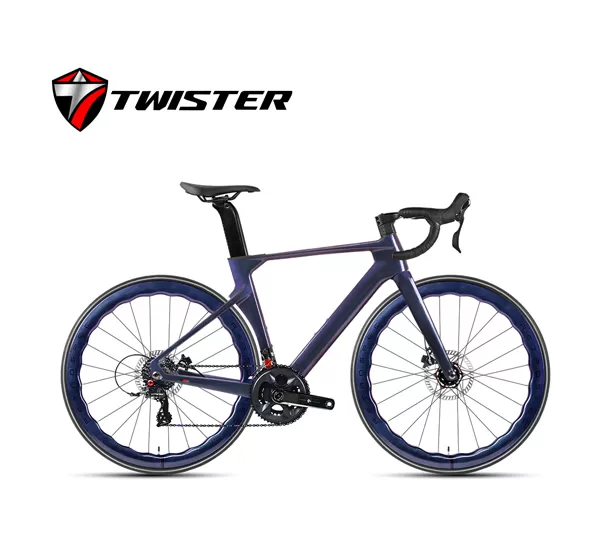

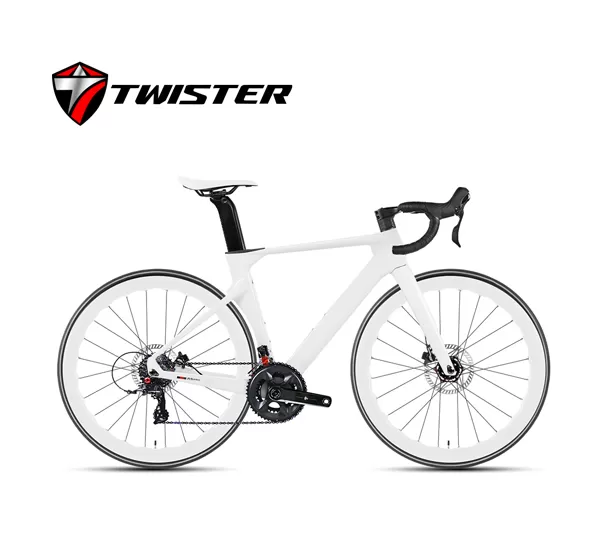

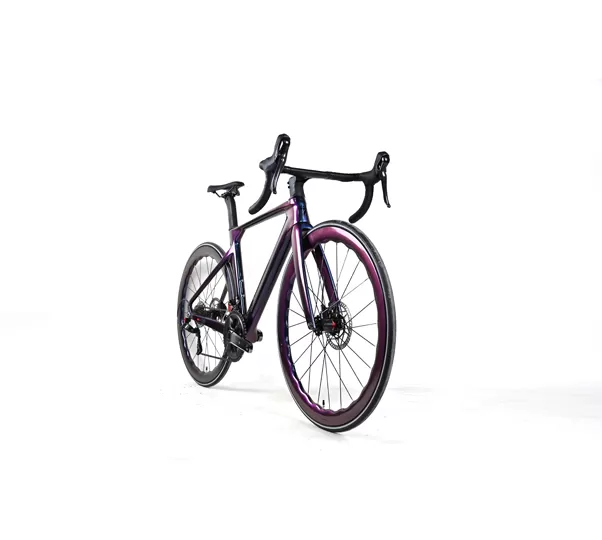

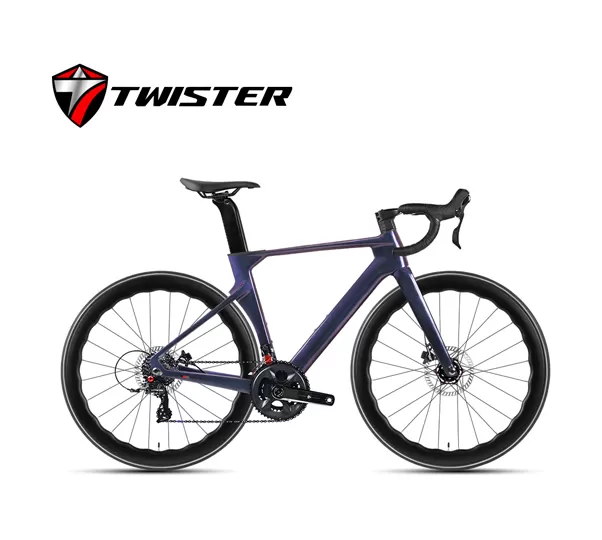

| Vehicle color | White/matte dark gray/matte black/, fully color changing | |
| Net weight of the whole vehicle | 9.3KG | |
| frame | frame | R5pro (disc brake drum shaft 12 * 142) high modulus carbon fiber/wind breaking racing/internal wiring/matte or glossy paint/UV laser marking |

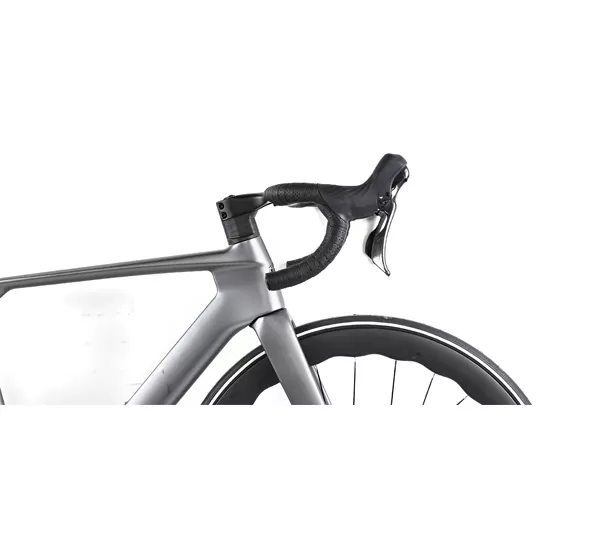

| Group up | Group up | TW aluminum alloy wind breaking integrated bending handle and stand 400 * 90mm/full internal wiring |
| seat tube | Frame matching/high modulus carbon fiber/water breaking droplet type | |
| pipe clamp | Frame matching/built-in lock buckle with protective rubber sleeve | |
| front fork | front fork | R5pro (Disc Brake Barrel Shaft 12 * 100) High Modulus Carbon Fiber/Highway Hard Fork/UV Laser Label |
| Headset | Peilin 52 * 52mm | |
| grommet | Dedicated for internal wiring | |
| variable speed | Hand changes | RETROSPEC (SENSAH HRD6900-R) -2 * 12 Speed Carbon Handle |

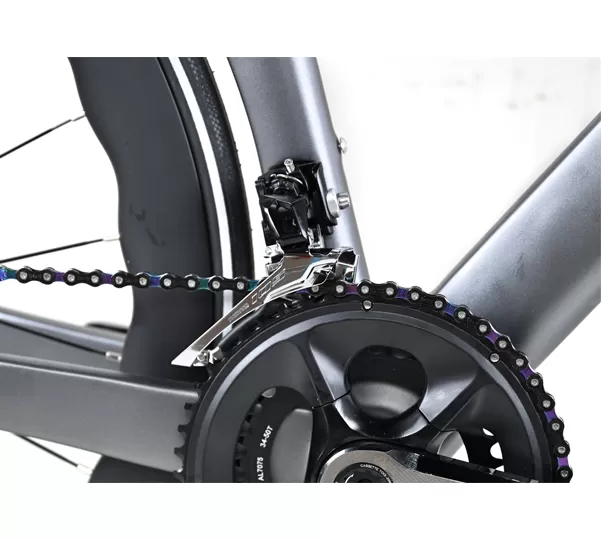

| Front Derailleur | SHIMANO-105 | |

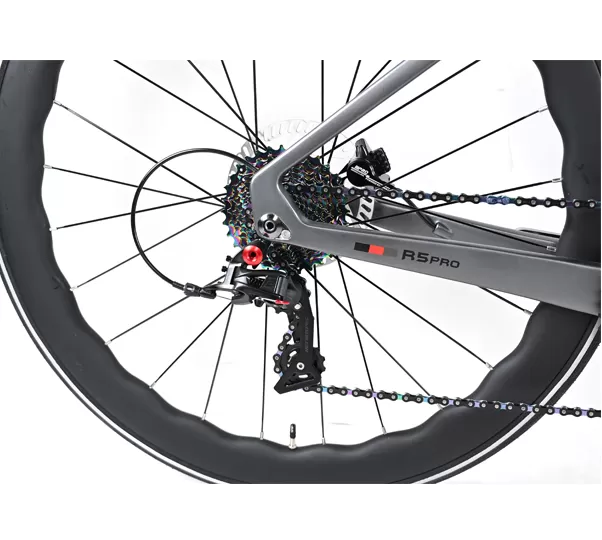

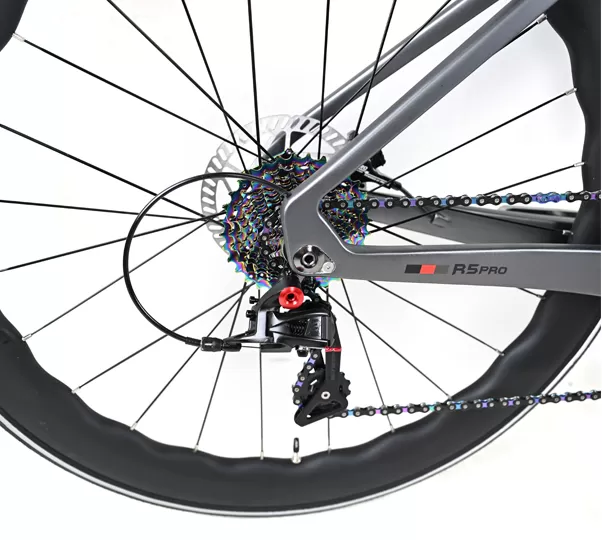

| Rear derailleur | RETROSPEC(SENSAH RD8500-R-GS)-12 speed | |

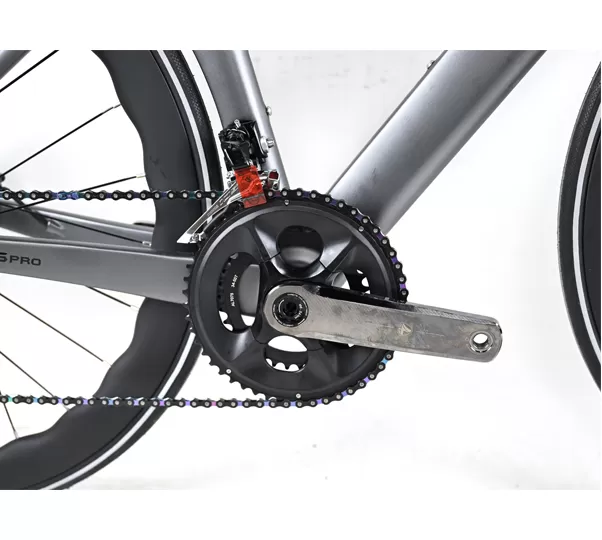

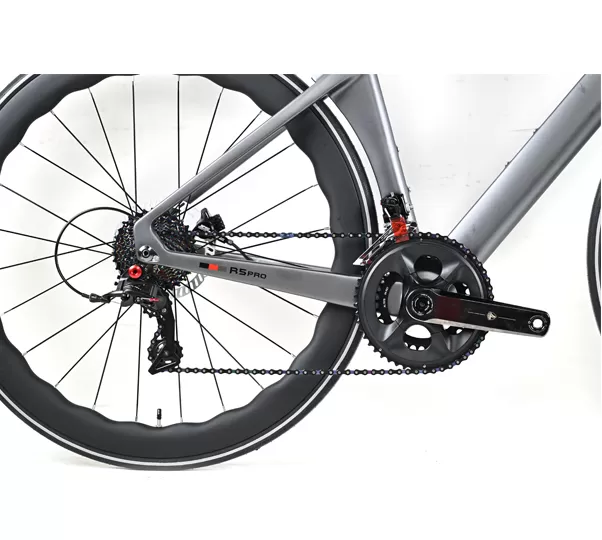

| Crankset | TW aluminum alloy 7075-DUB hollow 34-50T | |
| flywheel | SUGEK-12 Speed, 11-32T, Colorful | |
| chain | SUMC-12 Speed Black Colorful | |
| axis | Thread T47 * 29mm, hollow Peilin | |

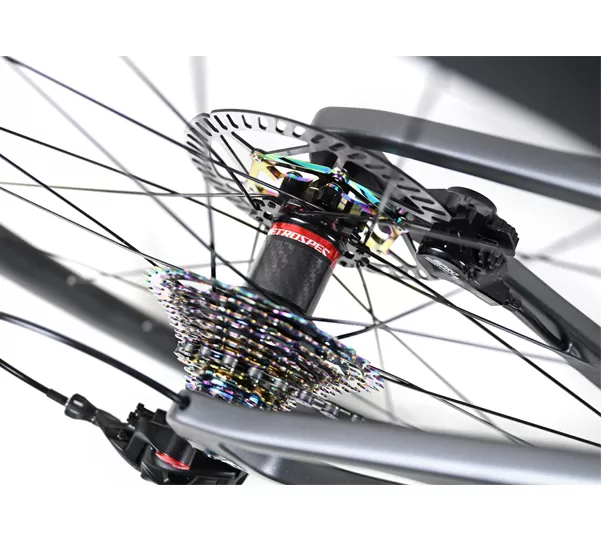

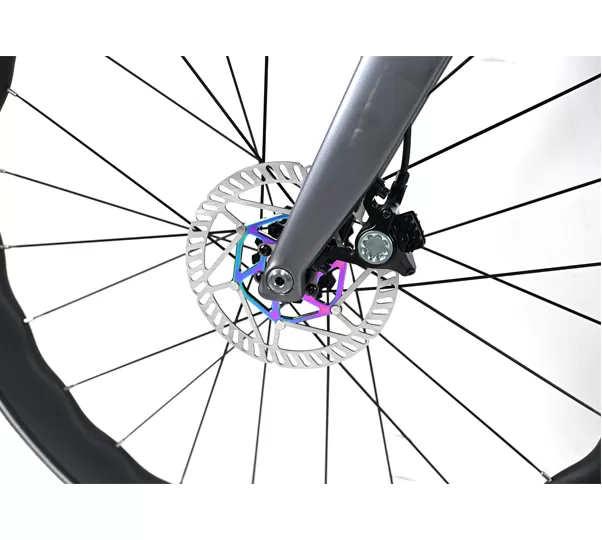

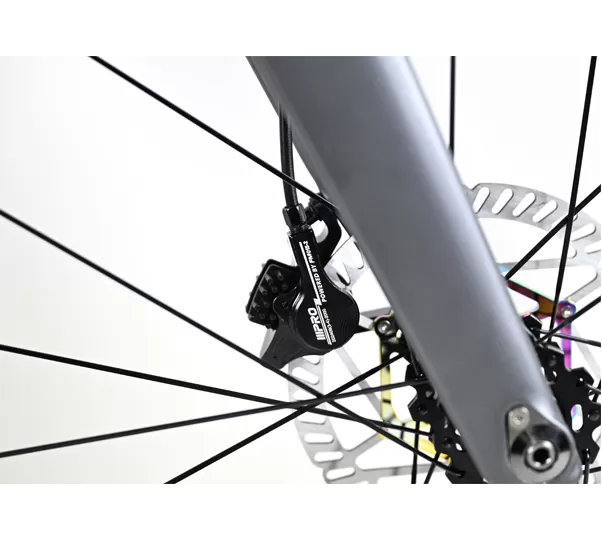

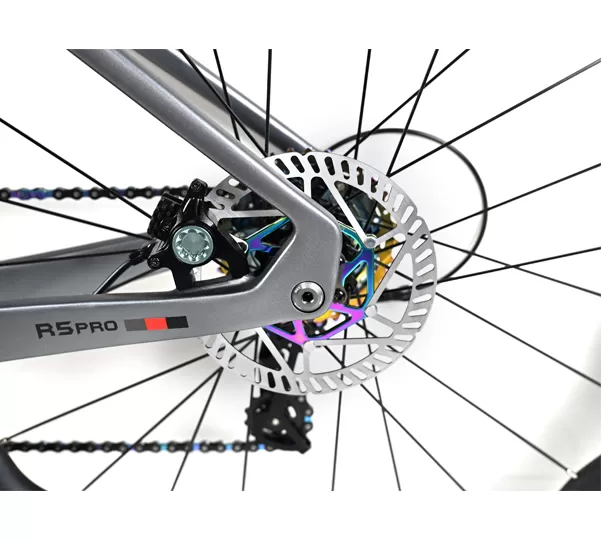

| brake | brake | RS (SENSAH G100) flat all oil disc brake, colorful disc 160/160 |

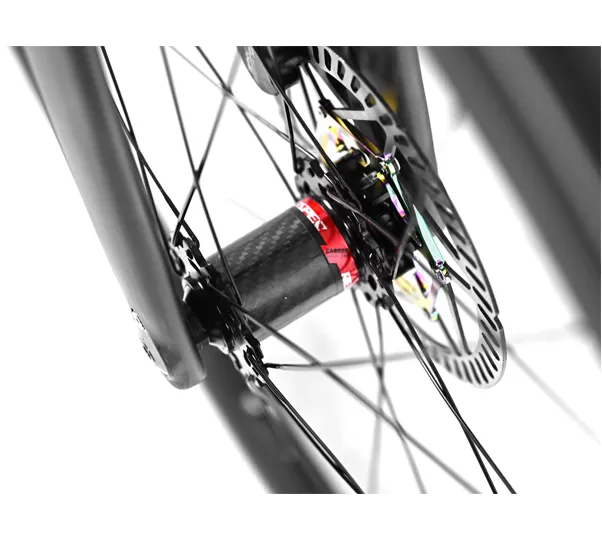

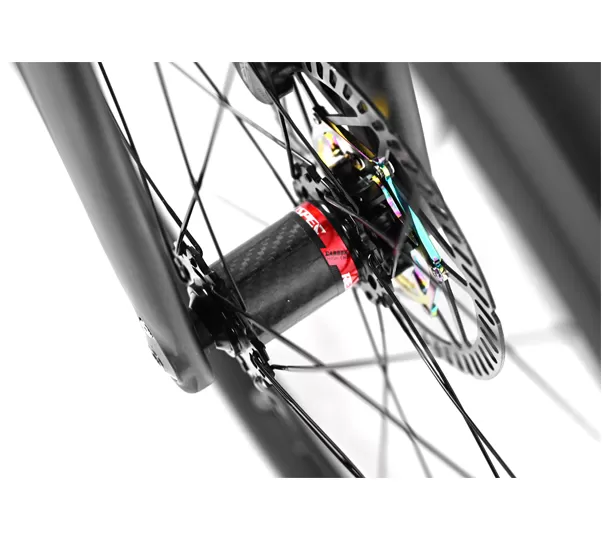

| Wheel set | Flower drum | RS lightweight aluminum alloy+carbon fiber/four pin card/front 24 and rear 24 holes/disc brake barrel shaft F12 * 100_S12 * 142 |
| Rim | RS high modulus carbon fiber/wave ring/frame height 50mm/opening | |
| spoke | High rigidity flat bar 14G | |
| Tire | RS Foldable with Reflective Edge, 700 * 25C | |
| other | tape | PU breathable, comfortable, non slip |
| seat cushion | TW short nose hollow | |
| pedal | Lightweight road pedals | |
| Conduit | JAGWIRE | |
| Add components | Front and rear reflectors+front and rear wheel reflectors | |
| Comes with accessories | PC kettle holder+tools | |
| TW manual+warranty card | ||
| Domestic dealer quotation, RMB (if choosing the color changing frame set, add 200 yuan on the following price basis; Upgrade carbon fiber integrated handlebars+300 yuan (wholesale+200 yuan) | ||
| The whole vehicle comes standard Loading order | ||
| R5pro - Second Generation (Sports Edition) | RS-24 speed oil disc wave carbon ring integrated aluminum handle | |
| system | accessory | specifications |
| frame | frame | R5pro, Disc brake drum shaft carbon fiber highway |
| Group up | Group up | TW aluminum alloy integrated bending handle and stand 400 * 90mm, fully concealed wiring |
| seat tube | Carbon fiber seat tube for frame matching | |
| pipe clamp | Built in lock buckle and dust cover on the frame | |
| front fork | front fork | R5pro, Disc brake drum shaft matched with carbon fiber hard fork 700C |
| Headset | Bearing 52 * 52mm | |
| grommet | Ultra light and high-strength nylon/dedicated for internal wiring | |
| variable speed | Hand changes | RS (Shuntai HRD6900-R) -2 * 12 speed, carbon handle |
| Front Derailleur | SHIMANO-105 | |
| Rear derailleur | RS (Shuntai RD8500-R-GS) -12 speed | |
| Crankset | TW aluminum alloy 7075-DUB hollow 34-50T | |
| flywheel | SUGEK-12 Speed, 11-32T, Colorful | |
| chain | SUMC-12 speed, black dazzling color | |
| axis | Thread T47 * 29mm, hollow Peilin | |
| brake | brake | RS (Shuntai G100) flat all oil disc brake+colorful disc 160/160 |
| Brake handle | ||
| Wheel set | Flower drum | RS aluminum+carbon fiber/four axle/highway card type/front 24, rear 24 hole side pull/bucket axle disc brake+direct lock lock rod |
| Rim | 700C/Carbon Fiber/Wave Ring $50 | |
| spoke | Flat bar, elbow | |
| Tire | RS Foldable with Reflective Edge, 700 * 25C | |
| attachment | tape | PU breathable holes for comfort and anti slip |
| seat cushion | TW short nose hollow | |
| pedal | Lightweight road pedals | |
| Tripod | / | |
| Conduit | JAGWIRE | |
| retrofitting | Front and rear reflectors+spoke reflectors | |
| equipment | PC water rack+tools | |
| other | TW warranty card+TW instruction manual | |
