| TWITTER Bike - Complete Vehicle Configuration and Quotation | |||

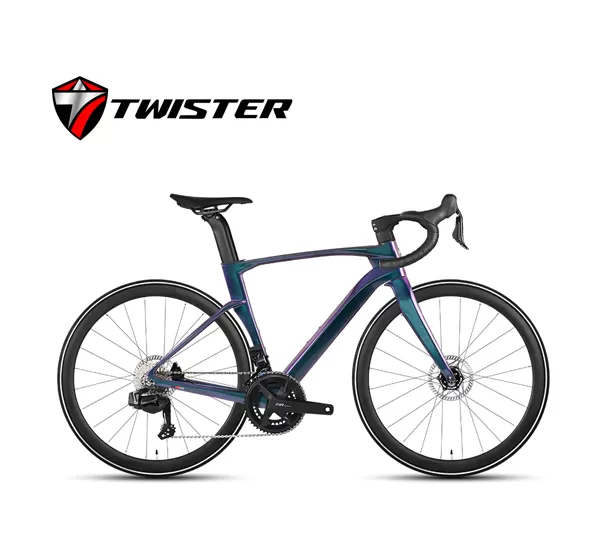

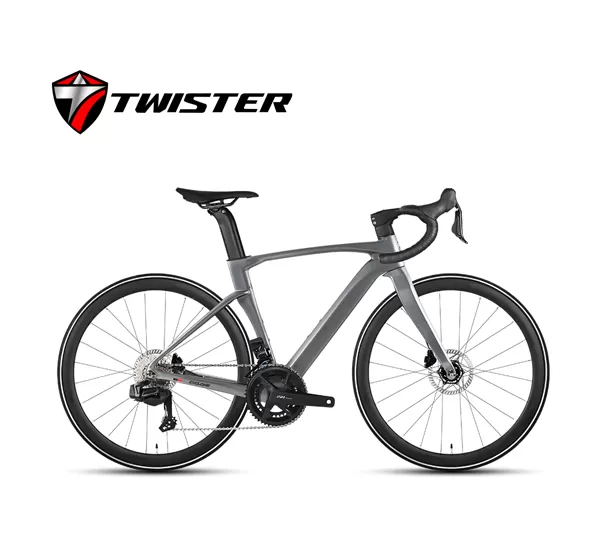

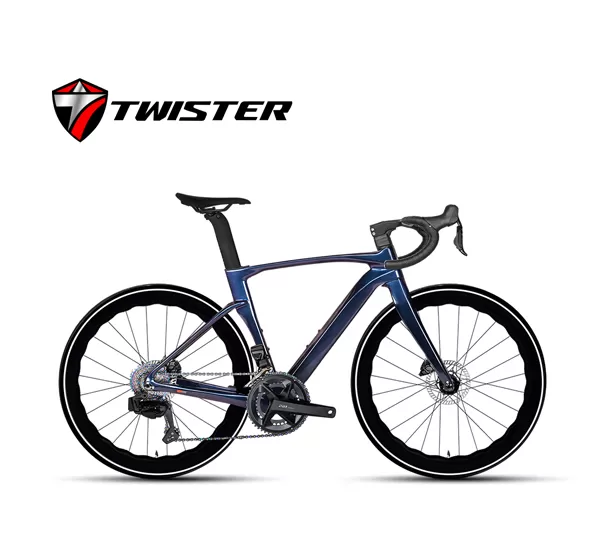

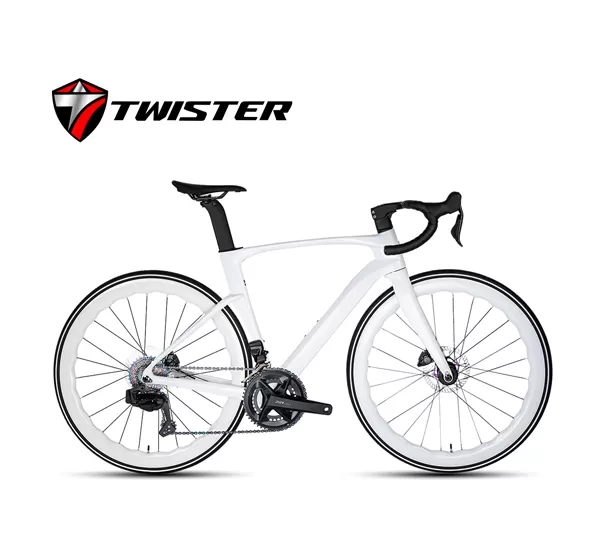

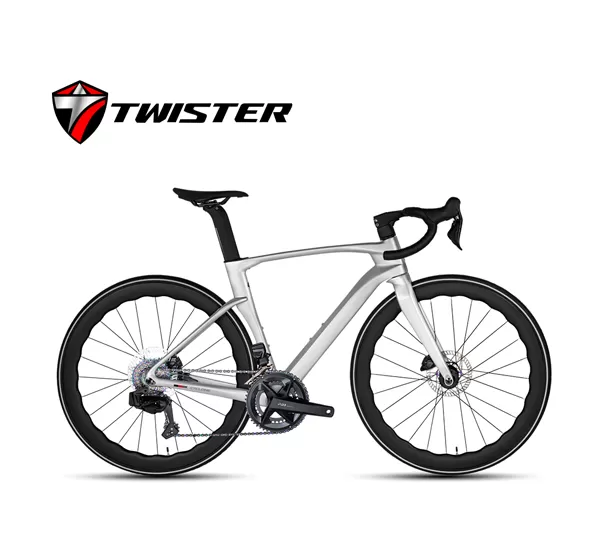

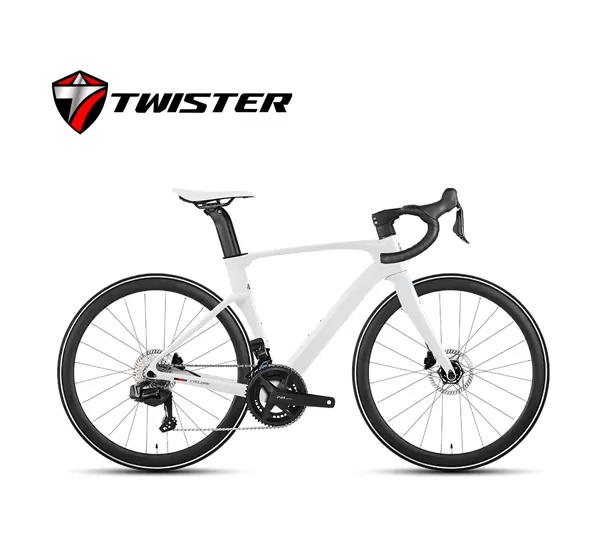

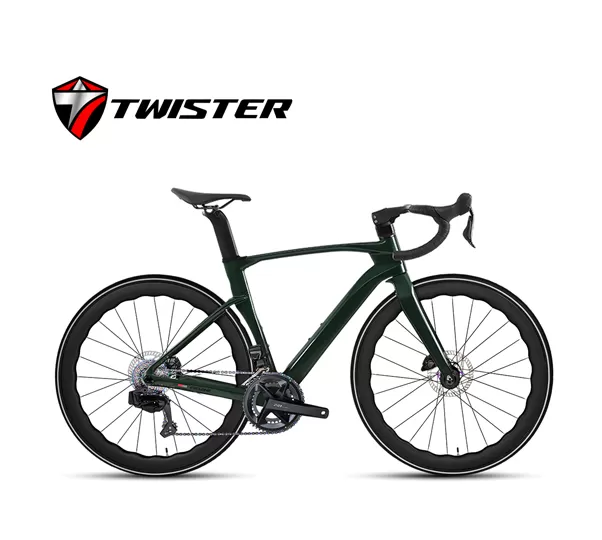

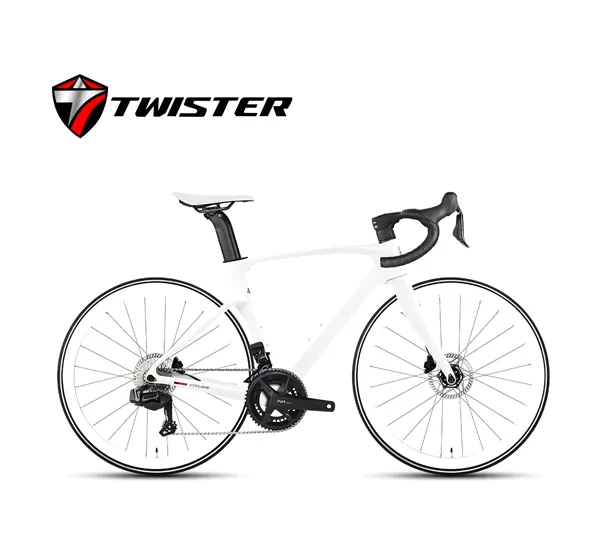

| Vehicle model | Cyclone CYCLONE - Third Generation (ET) | ||
| Standard Category | Wheel Peak 24 Speed Electric Transformer Oil Disc Aluminum Ring Carbon Handle | Wheel Peak 24 Speed Electric Transformer Oil Disc Wave Carbon Ring Carbon Handle | |
| Wheel diameter size | 700C | ||
| Frame height dimension | 43.5cm / 46cm / 48cm / 50cm / 52cm / 54cm | ||

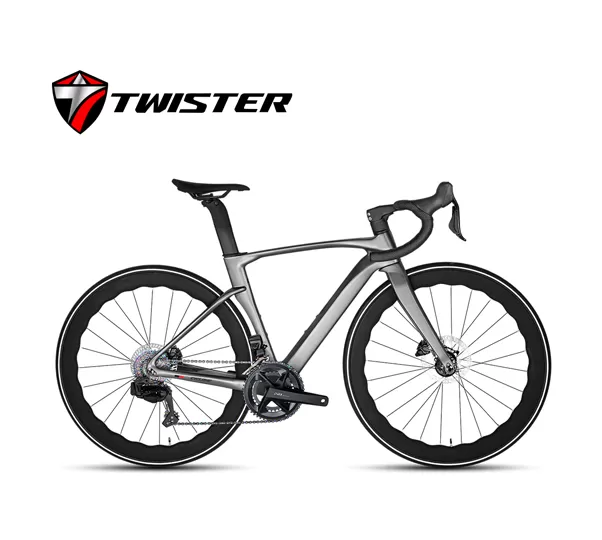

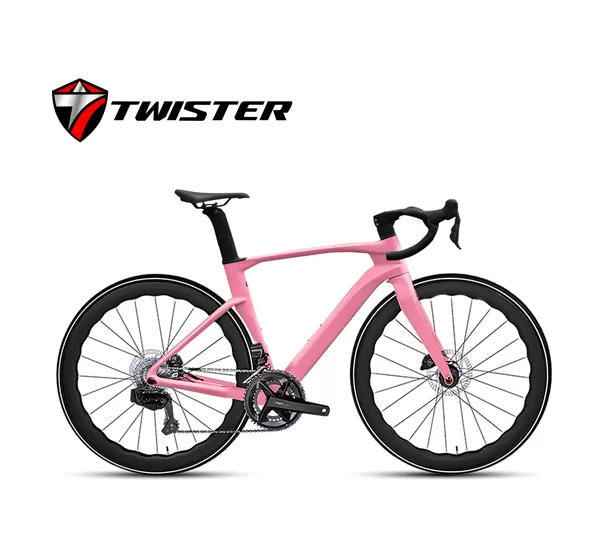

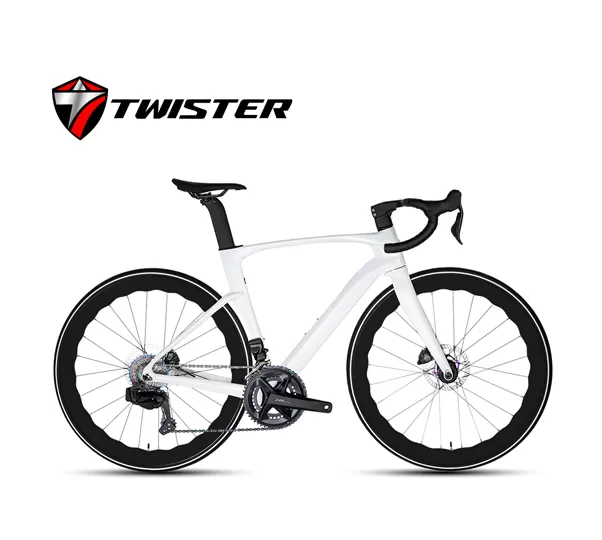

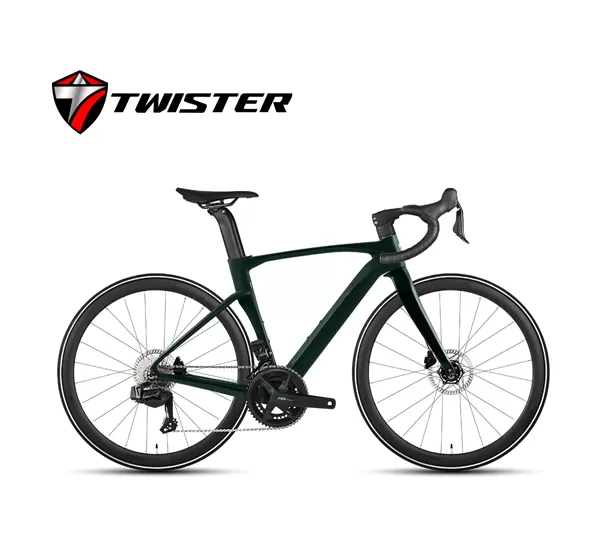

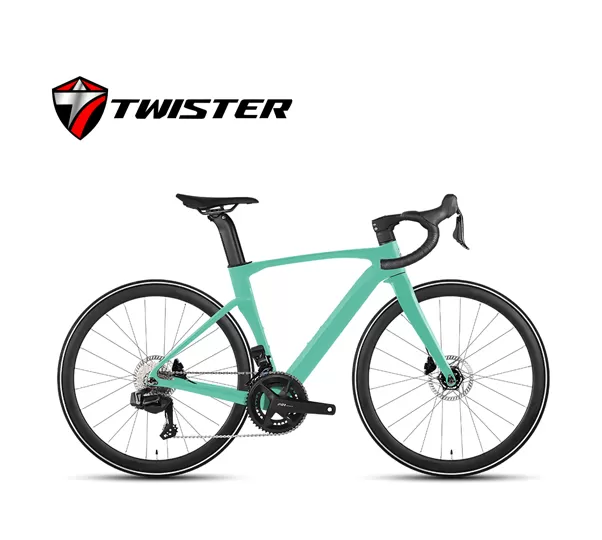

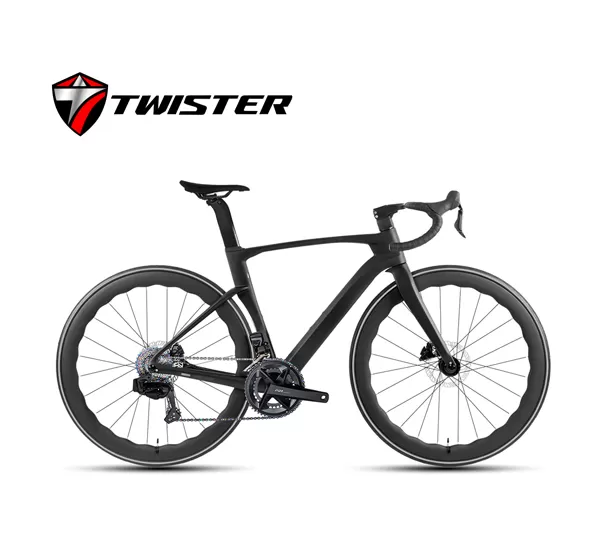

| Vehicle color | White/matte black/matte dark gray/dark green/cyan/pink/other, fully color changing | ||
| Net weight of the whole vehicle | 9.2KG | 9.2KG | |
| frame | frame | CYCLONE - Third generation (disc brake drum shaft 12 * 142) high modulus carbon fiber/wind breaking racing/internal wiring/matte or glossy paint/UV label | |

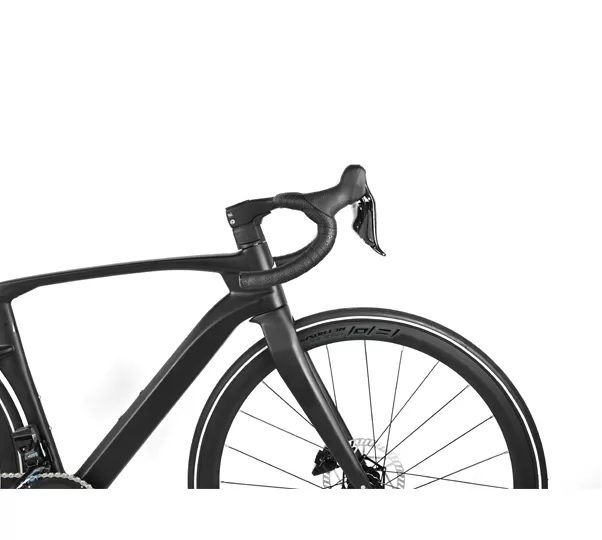

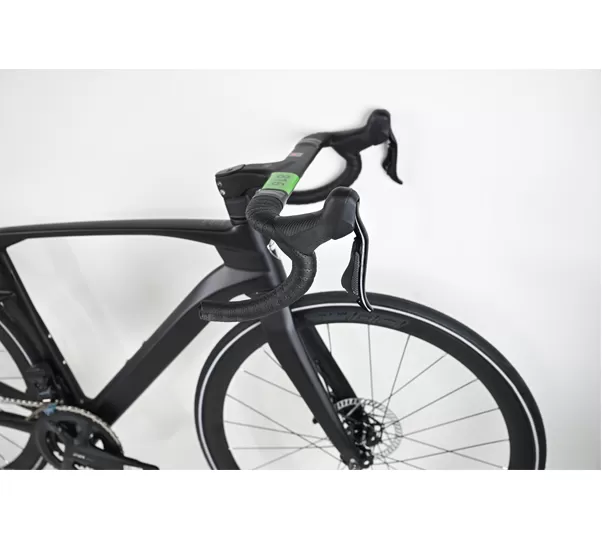

| Group up | Group up | TW high modulus carbon fiber/wind breaking integrated bending handle and stand 420 * 90mm/full internal wiring | |
| seat tube | Frame matching/high modulus carbon fiber/water breaking droplet type | ||
| pipe clamp | Frame matching/built-in lock buckle with protective rubber sleeve | ||

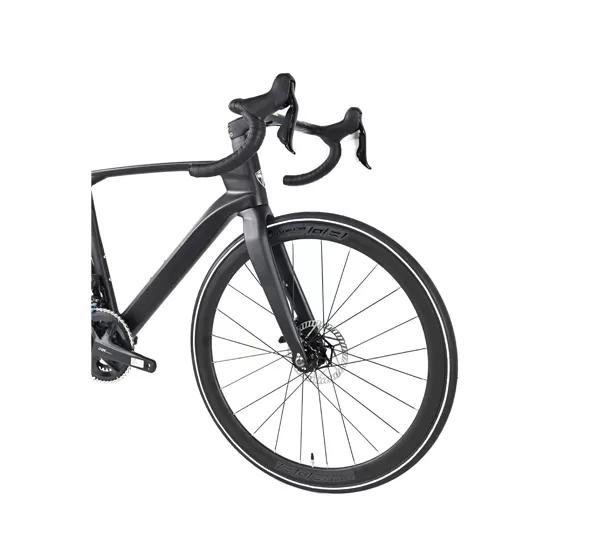

| front fork | front fork | CYCLONE - Third Generation (Disc Brake Barrel Shaft 12 * 100) High Modulus Carbon Fiber/Highway Hard Fork | |
| Headset | Aluminum alloy CNC Peilin 52 * 52mm | ||
| grommet | Dedicated for internal wiring | ||
| variable speed | Hand changes | WheelTop wheel peak, EDS TX Wireless Transformer -2 * 12 Speed (Oil Disc Manual Transformer) | |

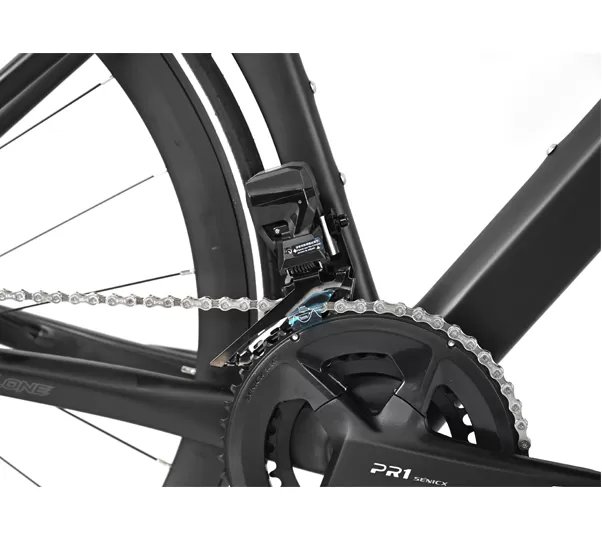

| Front Derailleur | WheelTop wheel peak, EDS TX Wireless Transformer -2 Speed | ||

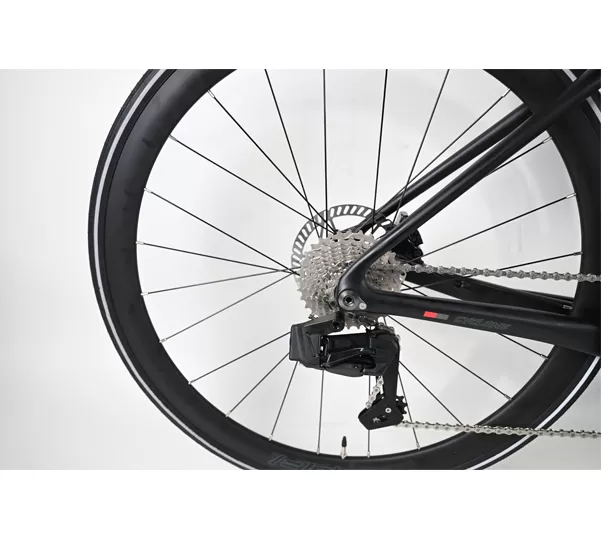

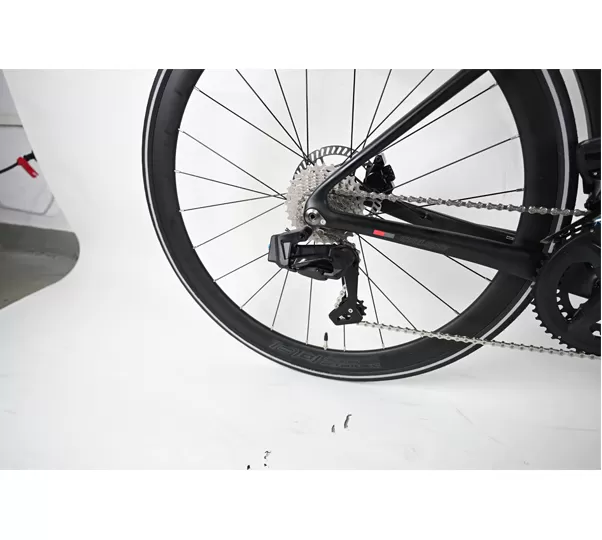

| Rear derailleur | WheelTop wheel peak, EDS TX Wireless Transformer -12 Speed | ||

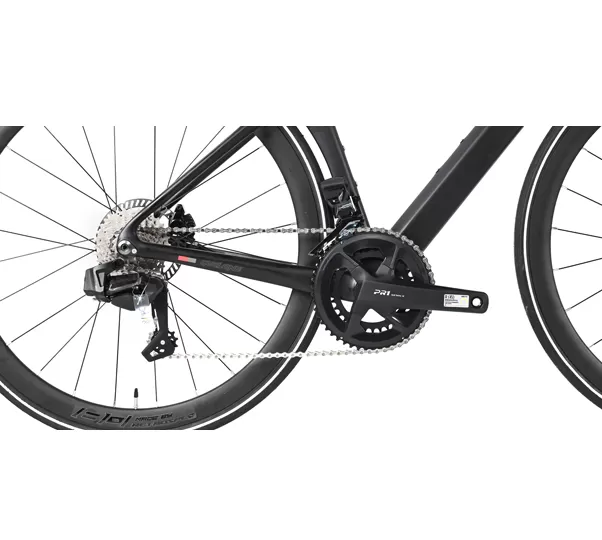

| Crankset | SENICX Yu Yong, PR1 aluminum alloy hollow 34-50T | ||
| flywheel | SUGEK-12 speed, 11-32T | Colorful -12 speed, 11-32T | |
| chain | SUMC-12 speed | SUMC-12 speed, black dazzling color | |
| axis | Thread T47 * 24mm, hollow Peilin | ||

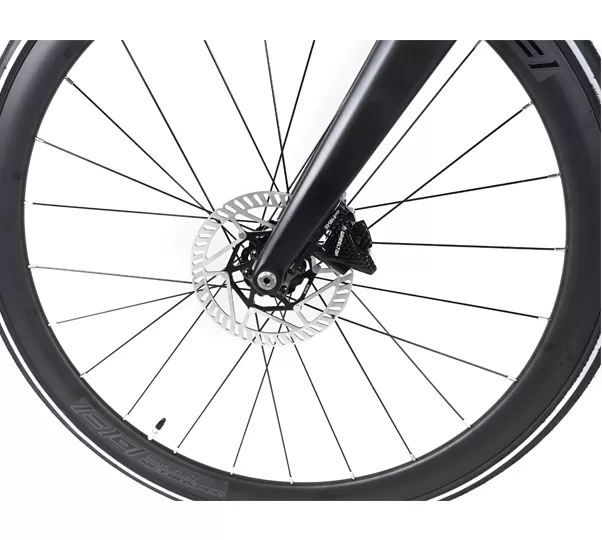

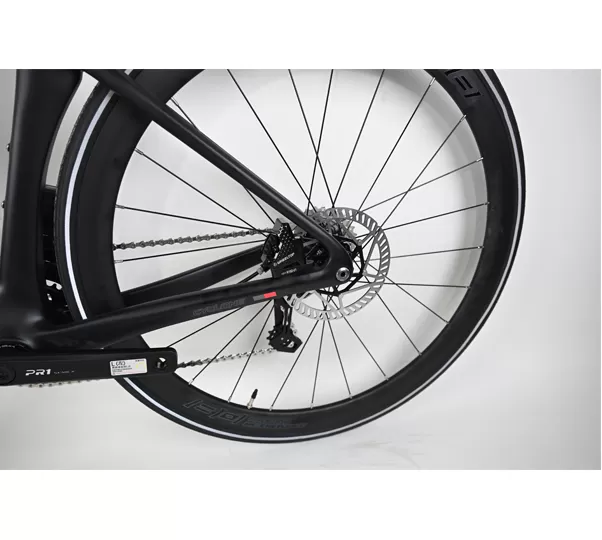

| brake | brake | WheelTop, flat all oil disc brake, RS disc 160/160mm | WheelTop wheel peak, flat all oil disc brake, colorful disc 160/160mm |
| Wheel set | Flower drum | RS lightweight aluminum alloy/four pin card/front 24 and rear 24 holes/disc brake barrel shaft F12 * 100_S12 * 142 | RS lightweight aluminum alloy+carbon fiber/four pin card/front 24 and rear 24 holes/disc brake barrel shaft F12 * 100_S12 * 142 |
| Rim | RS lightweight aluminum alloy/double-layer reinforcement/frame height 38mm | RS high modulus carbon fiber/wave ring/frame height 50mm/opening | |
| spoke | High rigidity round bar 14G | High rigidity flat bar 14G | |
| Tire | RS Foldable with Reflective Edge, 700 * 28C | ||
| other | tape | PU breathable, comfortable, non slip | |
| seat cushion | Lightweight and comfortable racing type | ||
| pedal | Feimin Lightweight Peilin | ||
| Conduit | JAGWIRE | ||
| Add components | Front and rear reflectors+front and rear wheel reflectors | ||
| Comes with accessories | PC kettle holder+tools | ||
| TW manual+warranty card+transformer charger and manual | |||
| Domestic dealer quotation, RMB (color changing frame set, plus 200 yuan on the following price basis; Color changing carbon ring on the basis of regular carbon ring+100 yuan) | |||
| The whole vehicle comes standard Loading order | |||||
| CYCLONE - Third Generation (ET) | Wheel Peak 24 Speed Electric Transformer Oil Disc Aluminum Ring Carbon Handle | Wheel Peak 24 Speed Electric Transformer Oil Disc Wave Carbon Ring Carbon Handle | |||
| System | Accessory | Specifications | Specifications | Color/General Color | Color Change |
| Frame | Frame | Cyclone CYCLONE - Third Generation, Disc Brake Barrel Shaft Carbon Fiber Highway | White, matte black, matte dark gray, dark green, cyan, pink, other | Full color change | |
| Group up | Group up | TW carbon fiber integrated bending handle and stand 420 * 90mm, fully concealed wiring | Black | Black | |
| Seat Tube | Carbon fiber seat tube for frame matching | Black | Black | ||
| Pipe Clamp | Built in lock buckle and dust cover on the frame | Black | Black | ||
| Front Fork | Front Fork | Cyclone CYCLONE - Third generation, disc brake drum shaft with carbon fiber hard fork 700C | White, matte black, matte dark gray, dark green, cyan, pink, other | Full color change | |
| Headset | Bearing 52 * 52mm | Black | |||
| Grommet | High strength lightweight nylon/internal wiring special | Black | |||
| Variable Speed | Hand Changes | WheelTop Wheel Peak, EDS TX Wireless Transformer -2 * 12 Speed Oil Disc Manual Transformer | |||
| Front Derailleur | WheelTop Wheel Peak, EDS TX Wireless Change-2 Speed | ||||
| Rear Derailleur | WheelTop Wheel Peak, EDS TX Wireless Transformer -12 Speed | ||||
| Crankset | SENICX Yuyong, PR1 aluminum alloy hollow 34-50T | ||||
| Flywheel | SUGEK-12 speed, 11-32T, silver | Colorful -12 speed, 11-32T | |||
| Chain | SUMC-12 Speed Silver | SUMC-12 Speed Black Colorful | |||
| Axis | Thread T47 * 24mm, hollow Peilin | ||||
| Brake | Brake | WheelTop, flat all oil disc brake+RS six pin disc 160/160mm | WheelTop wheel peak, flat all oil disc brake+colorful six nail disc 160/160mm | ||
| Brake Handle | |||||
| Wheel Set | Flower Drum | RS aluminum alloy/four axle/highway card type/front 24, rear 24 hole side pull/bucket axle disc brake six pin+rotary lock rod | RS aluminum+carbon fiber/four axis/highway card type/front 24, rear 24 hole side pull/bucket shaft disc brake six nails+rotary lock rod | Black | Black |
| Rim | 700C/aluminum alloy/double-layer 38 blade (RS-UV standard) | 700C/Carbon Fiber/Wave Ring $50 (RS Alphabet) | Black | Black | |
| Spoke | Ordinary round bar, elbow | Ordinary flat bar, elbow | Black | Black | |
| Tire | RS Foldable with Reflective Edge, 700 * 28C | ||||
| Attachment | Tape | PU breathable holes for comfort and anti slip | Black | Black | |
| Seat Cushion | SR1.0 short nose hollow | Black | Black | ||
| Pedal | Feimin Peilin Highway | Black | Black | ||
| Tripod | / | ||||
| Conduit | JAGWIRE | Black | Black | ||
| Retrofitting | Front and rear reflectors+spoke reflectors | ||||
| Equipment | PC water rack+tools | ||||
| Other | TW warranty card+TW manual+matching peak load transformer charger and manual | ||||
