| TWITTER Bike - Complete Vehicle Configuration and Quotation | |||

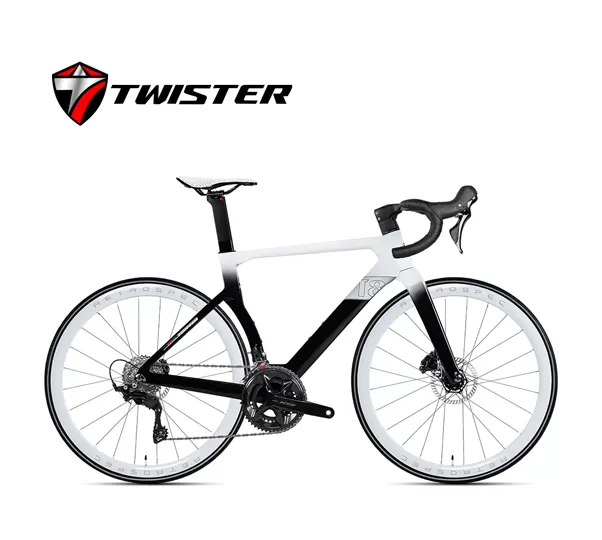

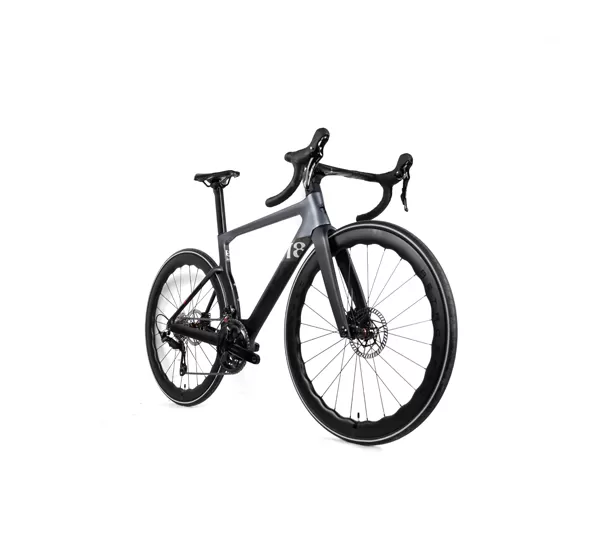

| Vehicle model | T8 disc brake (R7120) | ||
| Standard Category | R7120-24 speed large aluminum ring carbon handle | R7120-24 speed large set wave carbon ring carbon handle | |
| Wheel diameter size | 700C | ||
| Frame height dimension | 43.5cm / 46cm / 48cm / 50cm / 52cm / 54cm | ||

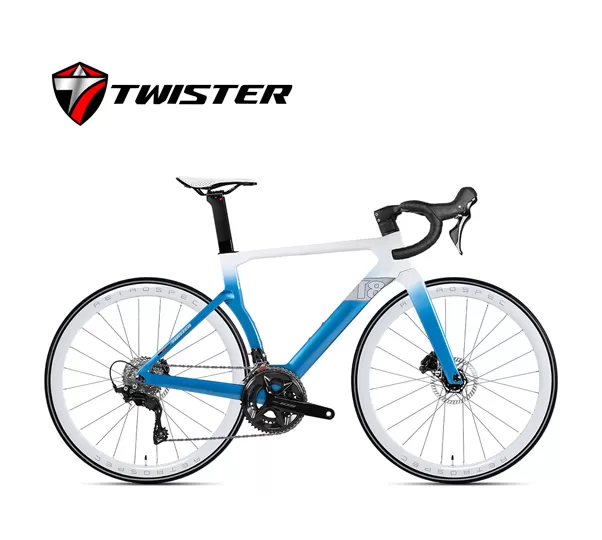

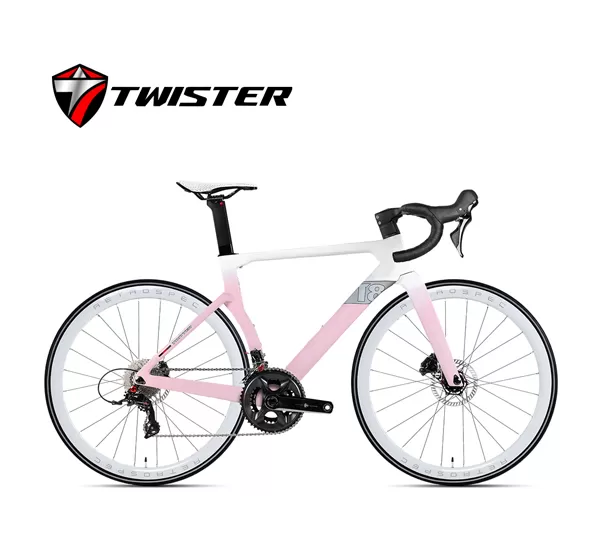

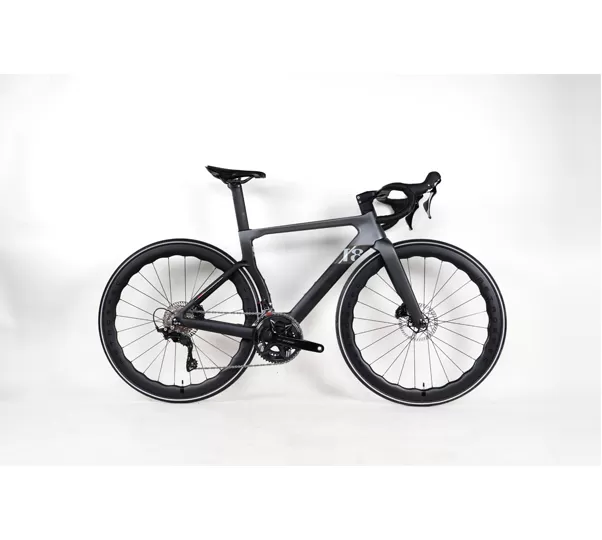

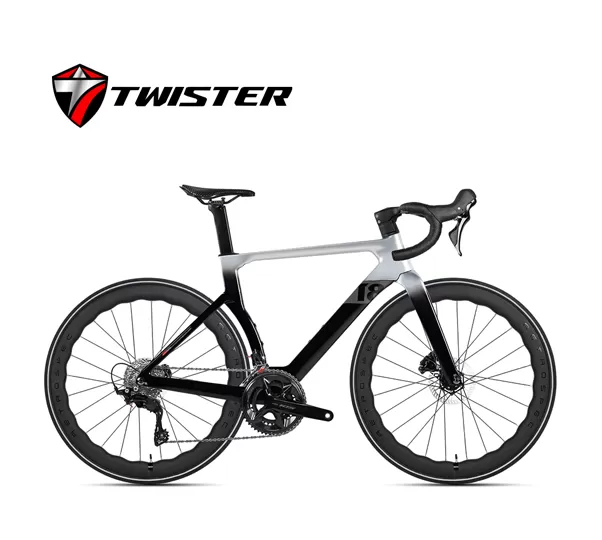

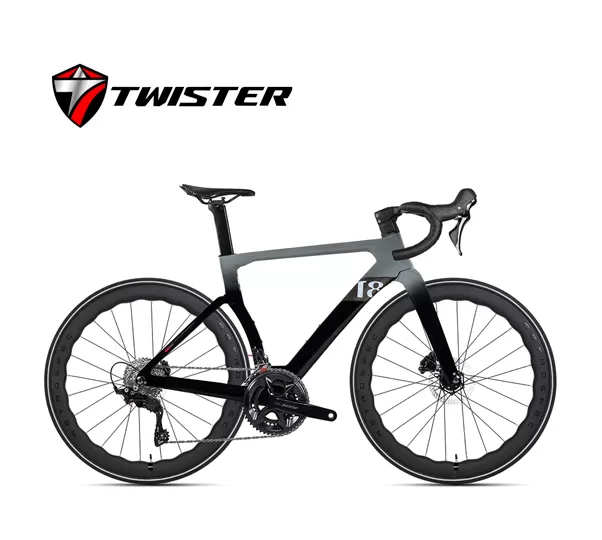

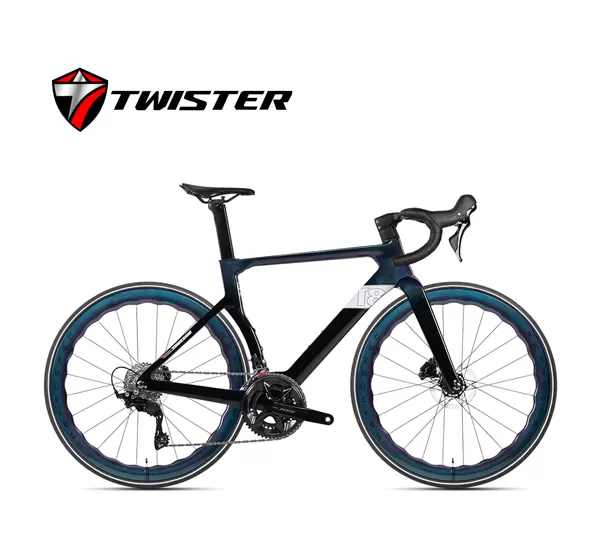

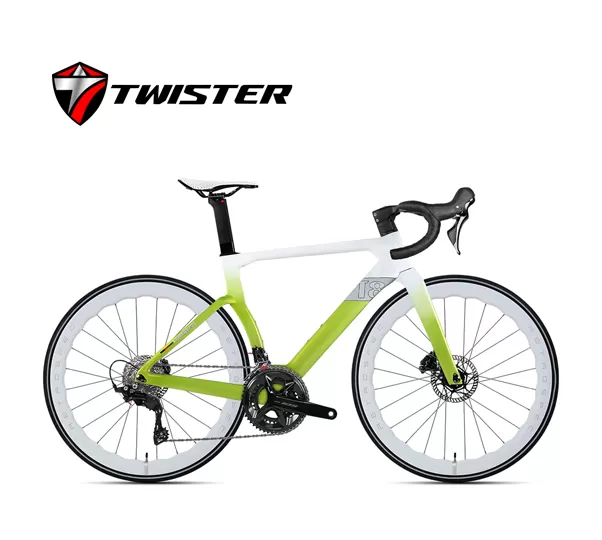

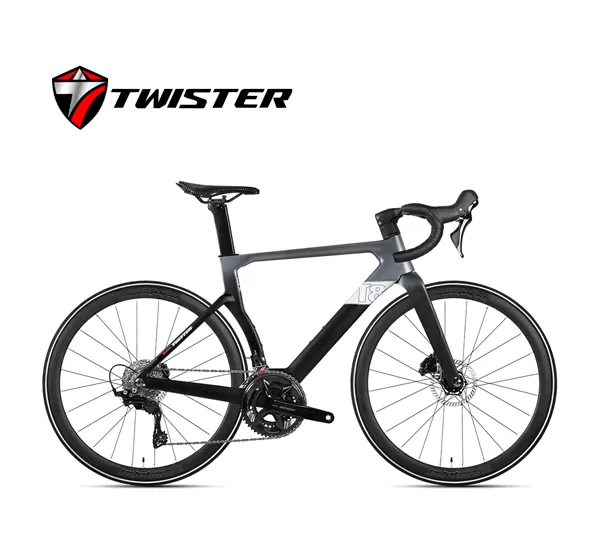

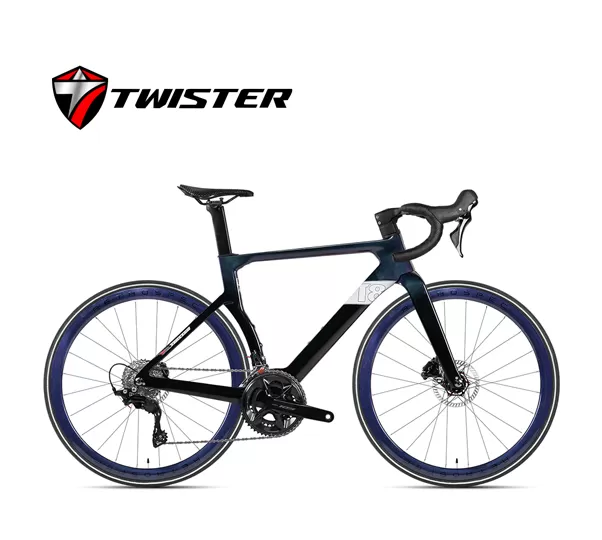

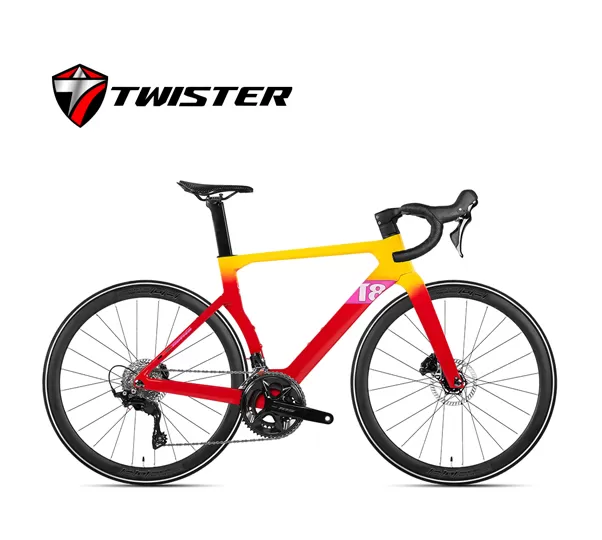

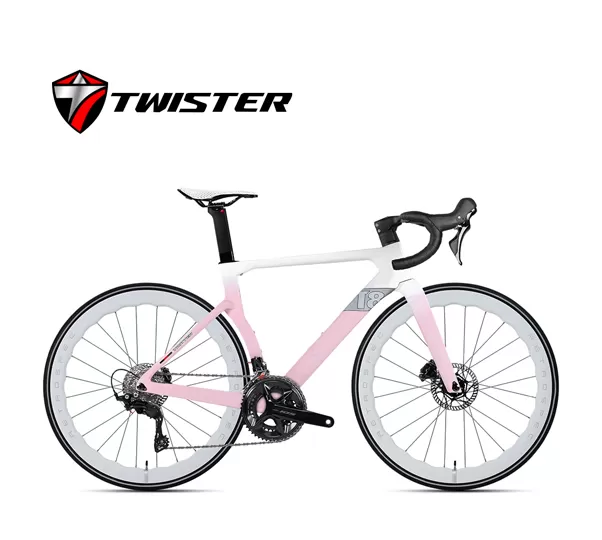

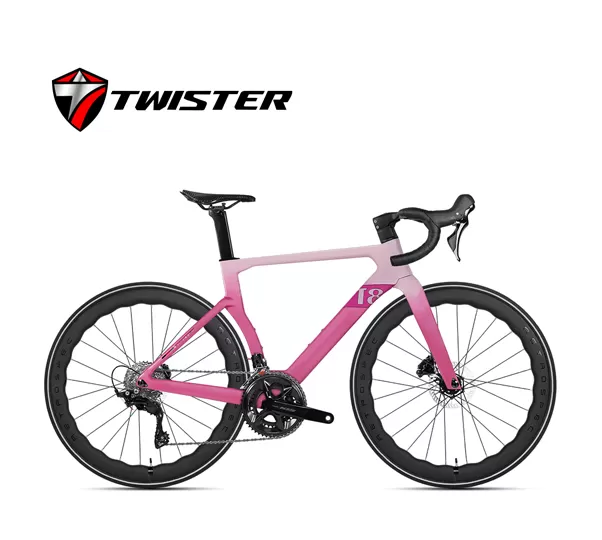

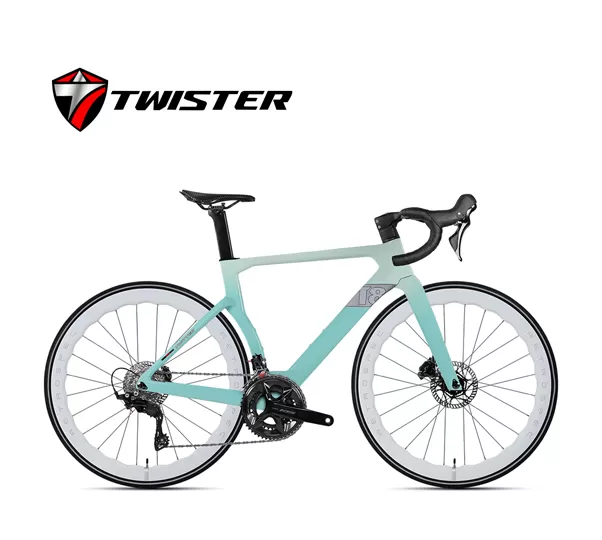

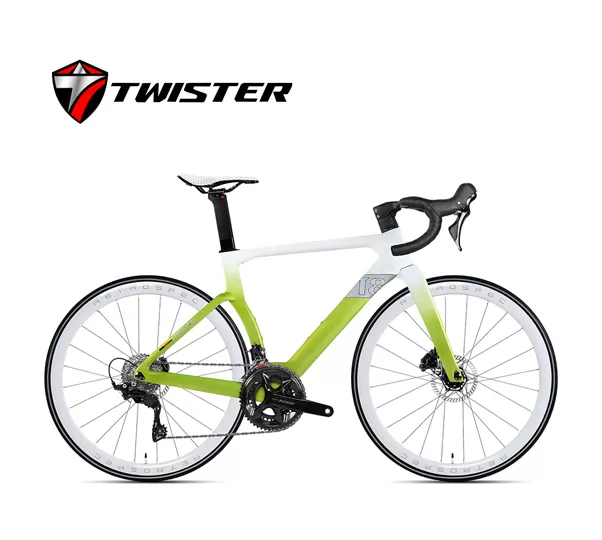

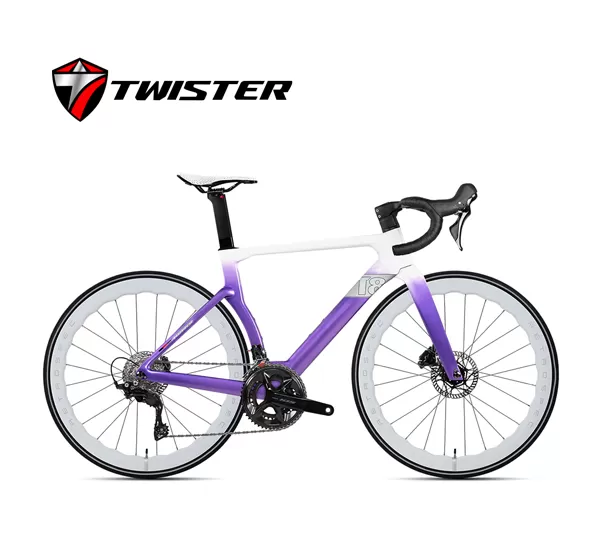

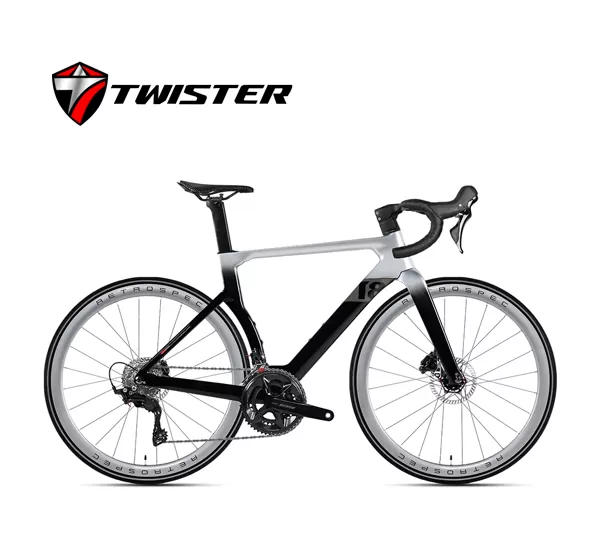

| Vehicle color | Blue white/green white/pink white/black dark gray/pink/light green/black cement gray/red yellow/purple white/black and white/black silver, color changing black | ||
| Net weight of the whole vehicle | 8.9KG | 8.8KG | |
| frame | frame | T8 disc brake (disc brake drum shaft 12 * 142) high modulus carbon fiber/wind breaking racing/internal wiring/matte or glossy paint/UV label | |

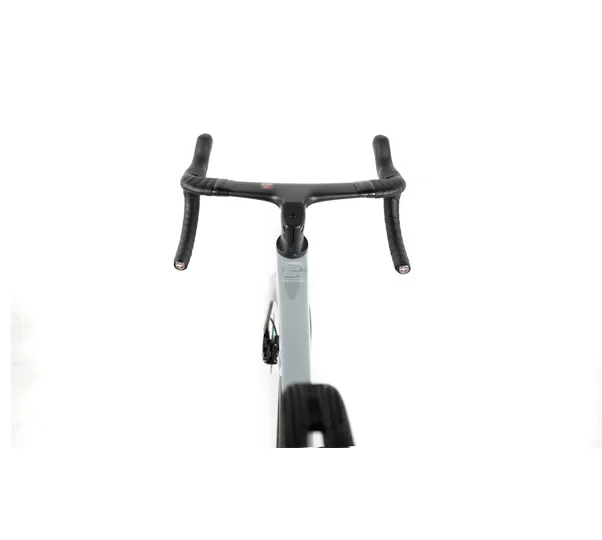

| Group up | Group up | TW high modulus carbon fiber/wind breaking integrated bending handle and stand 400/420 * 90mm/full internal wiring | |
| seat tube | Frame matching/high modulus carbon fiber/water breaking droplet type | ||
| pipe clamp | Frame matching/built-in lock buckle with protective rubber sleeve | ||
| front fork | front fork | T8 disc brake (disc brake drum shaft 12 * 100) high modulus carbon fiber/road hard fork | |
| Headset | Peilin 52 * 52mm | ||
| grommet | Dedicated for internal wiring | ||
| variable speed | Hand changes | SHIMANO 105/R7120-2*12speed | |

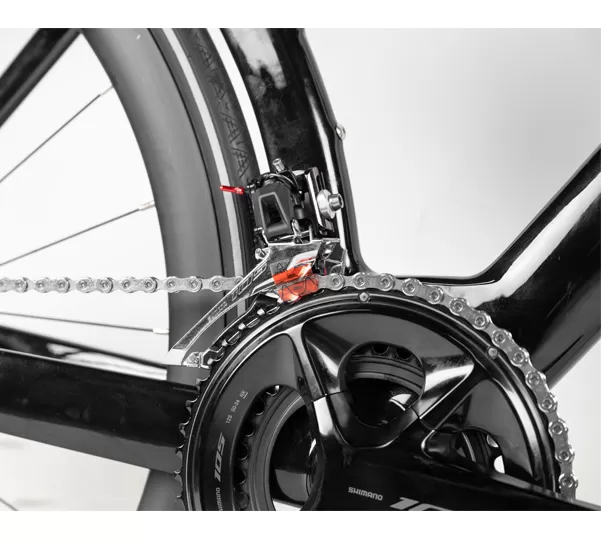

| Front Derailleur | SHIMANO 105/R7100-2speed | ||

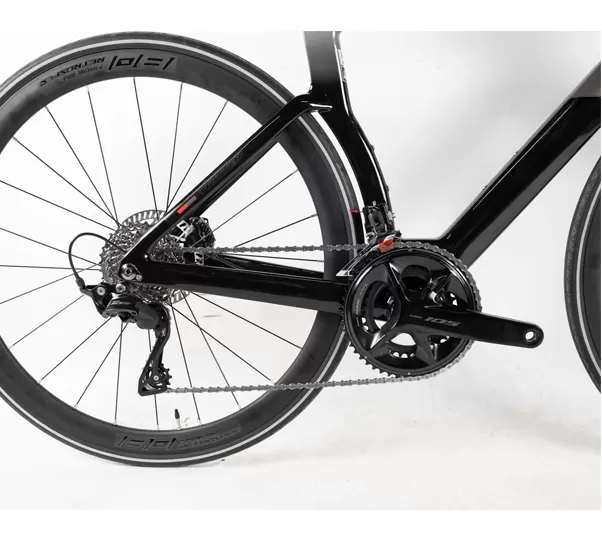

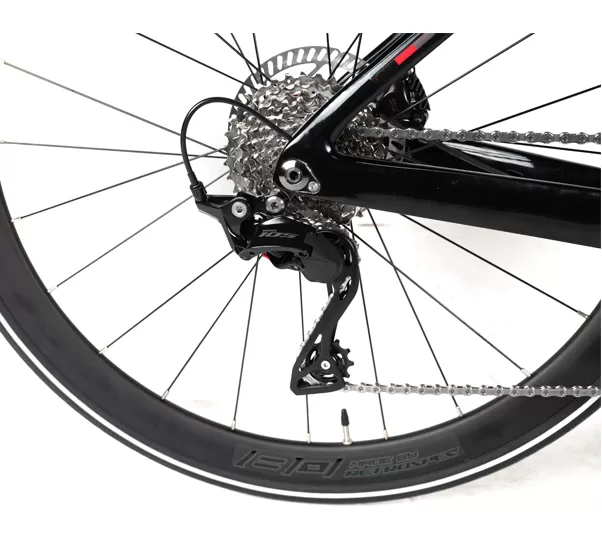

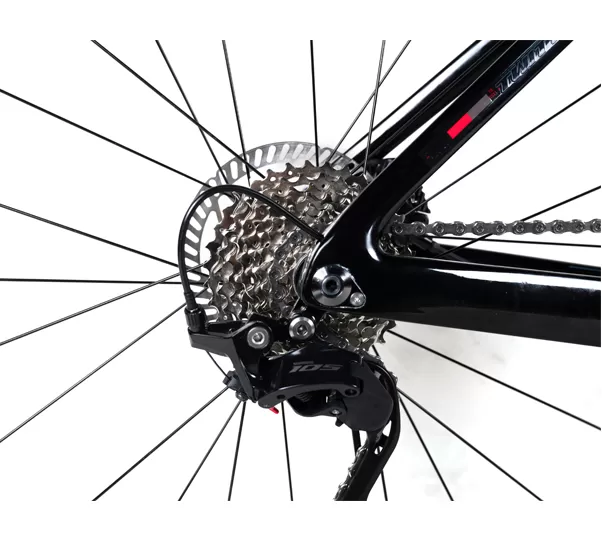

| Rear derailleur | SHIMANO 105/R7100-12speed | ||
| Crankset | SHIMANO 105/R7100hollow, 34-50T | ||

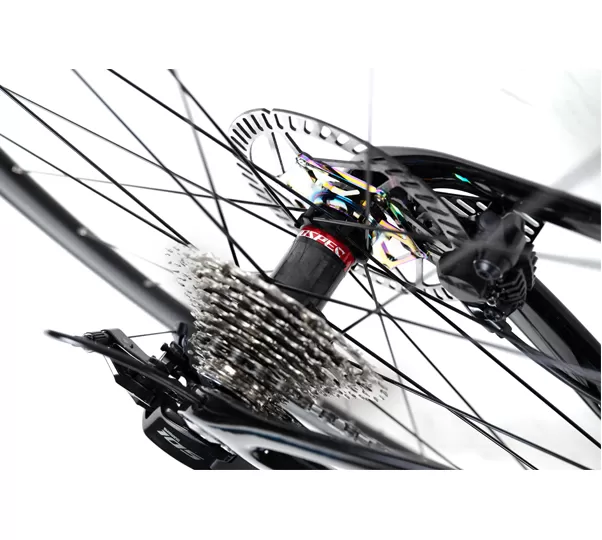

| flywheel | SHIMANO 105/R7100-12speed, 11-34T | ||
| chain | SHIMANO HG6100-12speed | ||
| axis | Thread T47 * 24mm, hollow Peilin | ||

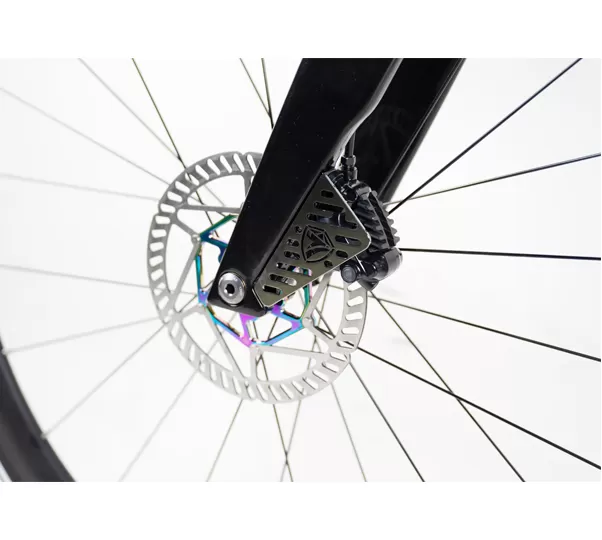

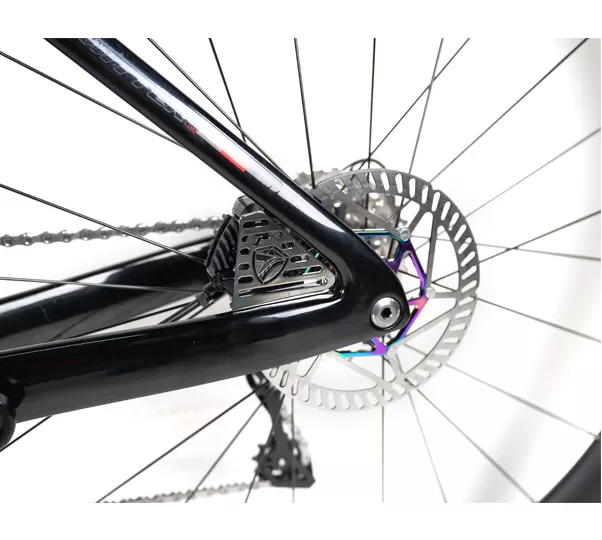

| brake | brake | SHIMANO 105/R7070 hydraulic disc brake, center lock colorful 160/160mm | |

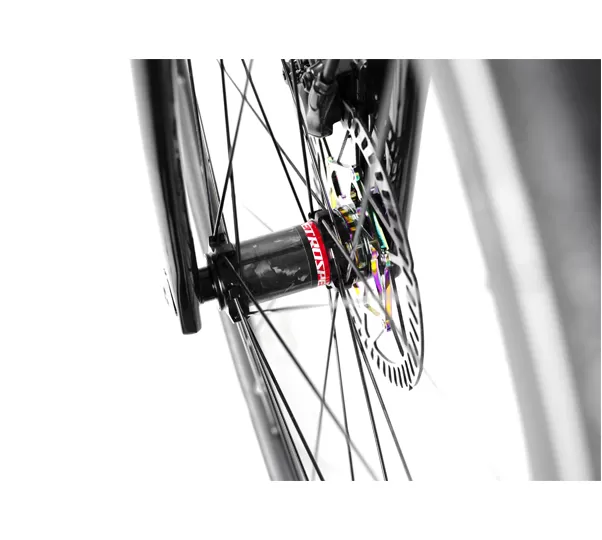

| Wheel set | Flower drum | RS lightweight aluminum alloy+carbon fiber/four pin card/front 24 and rear 24 holes/straight pull middle lock/disc brake bucket shaft F12 * 100_S12 * 142 | |
| Rim | RS lightweight aluminum alloy/double-layer reinforcement/frame height 38mm | RS high modulus carbon fiber/wave ring/frame height 50mm/opening | |
| spoke | High rigidity round bar 14G | High rigidity flat bar 14G | |
| Tire | Inova Foldable with Reflective Edge, 700 * 27C | ||
| other | tape | PU breathable, comfortable, non slip | |

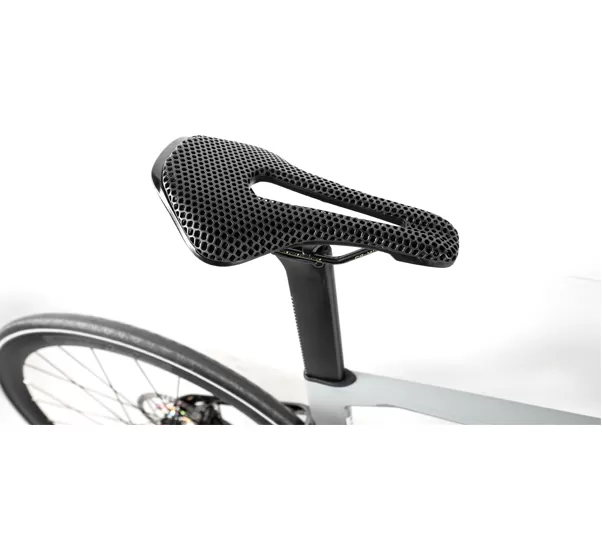

| seat cushion | 3D printed seat cushion | ||
| pedal | Lightweight aluminum alloy Peilin | ||
| Conduit | JAGWIRE | ||
| Add components | Front and rear reflectors+front and rear wheel reflectors | ||
| Comes with accessories | PC kettle holder+tools | ||
| TW manual+warranty card | |||
| Domestic dealer quotation, RMB (color changing frame set, plus 200 yuan on the following price basis; Color changing carbon ring on the basis of regular carbon ring+100 yuan) | |||
| The whole vehicle comes standard Loading order | |||
| T8 disc brake (R7120) | R7120-24 speed large aluminum ring carbon handle | R7120-24 speed large set wave carbon ring carbon handle | |
| system | accessory | specifications | specifications |
| frame | frame | T8 disc brake, disc brake bucket shaft carbon fiber highway | |
| Group up | Group up | TW carbon fiber integrated bending handle and stand 400/420 * 90mm, fully concealed wiring | |
| seat tube | Carbon fiber seat tube for frame matching | ||
| pipe clamp | Built in lock buckle and dust cover on the frame | ||
| front fork | front fork | T8 disc brake, disc brake barrel shaft matched with carbon fiber hard fork 700C | |
| Headset | Bearing 52 * 52mm | ||
| grommet | High strength lightweight nylon/internal wiring special | ||
| variable speed | Hand changes | SHIMANO 105/R7120-2*12speed | |
| Front Derailleur | SHIMANO 105/R7100-2speed | ||
| Rear derailleur | SHIMANO 105/R7100-12speed | ||
| Crankset | SHIMANO 105/R7100hollow, 34-50T | ||
| flywheel | SHIMANO 105/R7100-12speed, 11-34T | ||
| chain | SHIMANO HG6100-12speed | ||
| axis | Thread T47 * 24mm, hollow Peilin | ||
| brake | brake | SHIMANO 105/R7070 Hydraulic Disc Brake+Medium Lock Colorful Disc 160/160mm | |
| Brake handle | |||
| Wheel set | Flower drum | RS aluminum+carbon fiber/four axis/highway card type/front 24 and rear 24 hole straight pull/bucket shaft disc brake center lock+rotary lock rod | |
| Rim | 700C/aluminum alloy/double-layer 38 blade (RS-UV standard) | 700C/Carbon Fiber/Wave Ring $50 (RS Alphabet) | |
| spoke | Ordinary round bar, elbow | Ordinary flat bar, elbow | |
| Tire | Inova, foldable, with reflective edge, 700 * 27C | ||
| attachment | tape | PU breathable holes for comfort and anti slip | |
| seat cushion | 3D printed seat cushion | ||
| pedal | Feimin FP-935ZU aluminum alloy | ||
| Tripod | / | ||
| Conduit | JAGWIRE | ||
| retrofitting | Front and rear reflectors+spoke reflectors | ||
| equipment | PC water rack+tools | ||
| other | TW warranty card+TW instruction manual | ||
