| TWITTER ZhuiTe Bicycle---Complete Bicycle Configuration and Quotation | |||
| Vehicle model | T8-Disc Brake (R7120) | ||
| Standard category | R7120-24 speed large set of aluminum ring carbon handlebar | R7120-24-speed large set of wave carbon ring carbon handlebars | |
| Wheel size | 700C | ||
| Frame height | 43.5cm / 46cm / 48cm / 50cm / 52cm / 54cm | ||

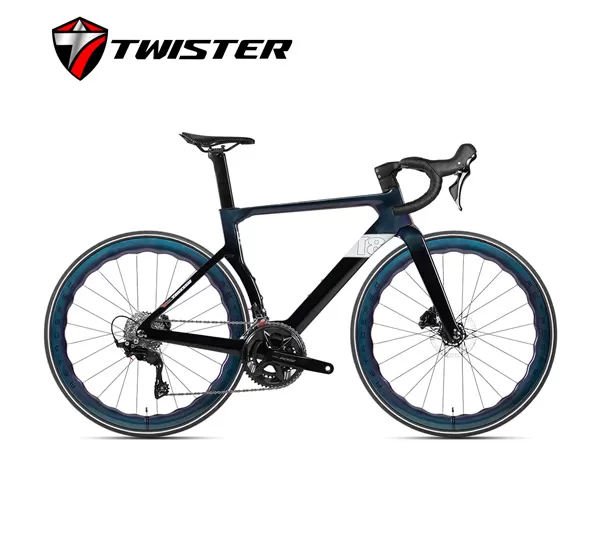

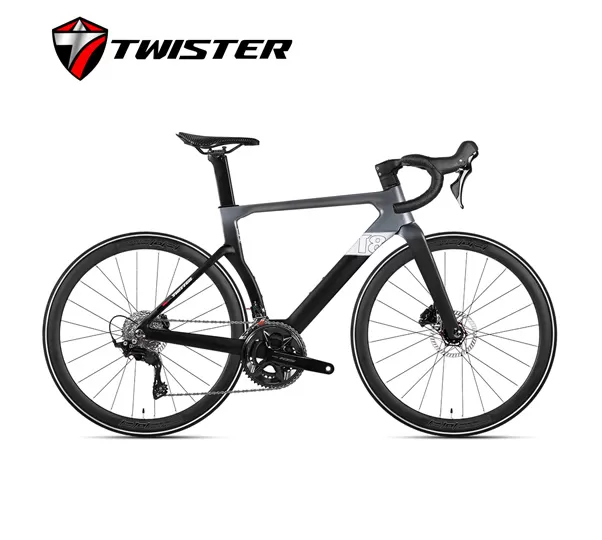

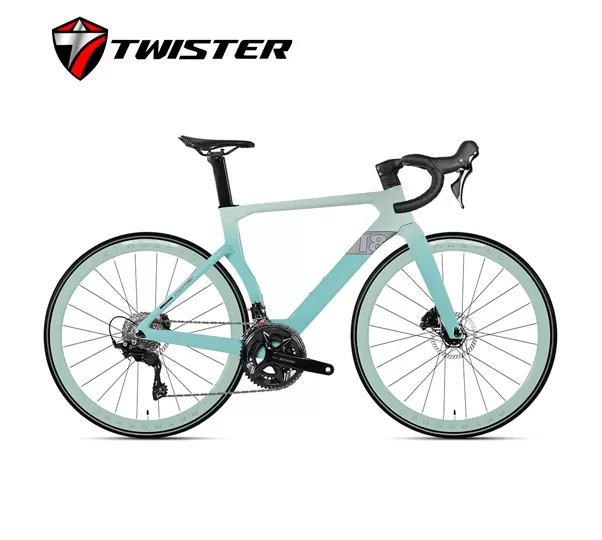

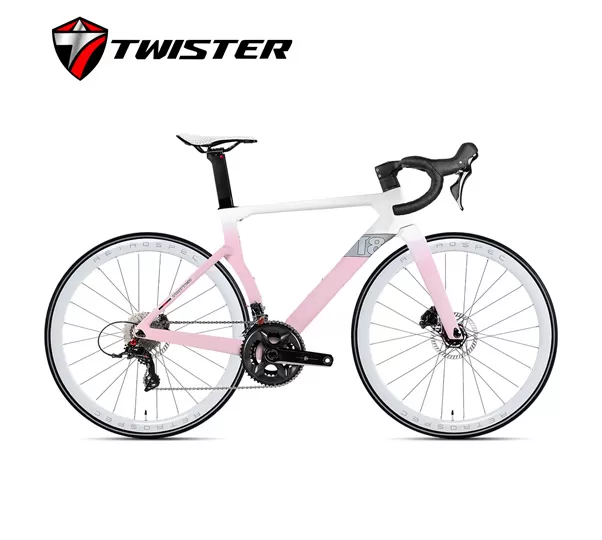

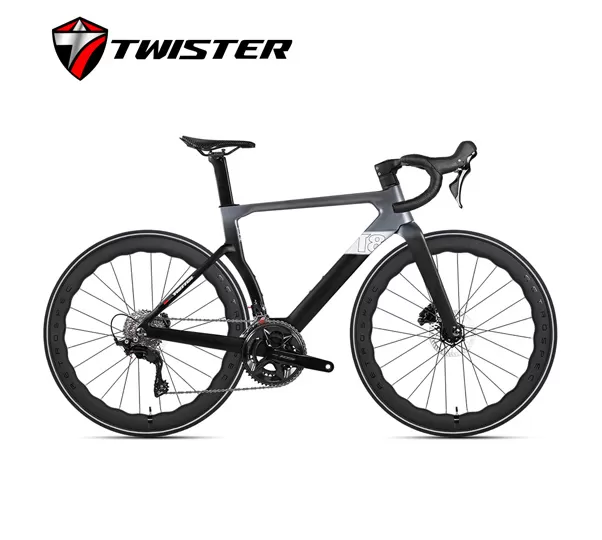

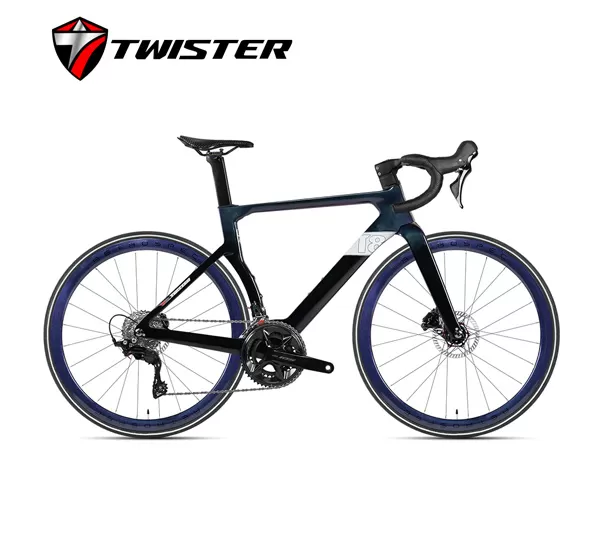

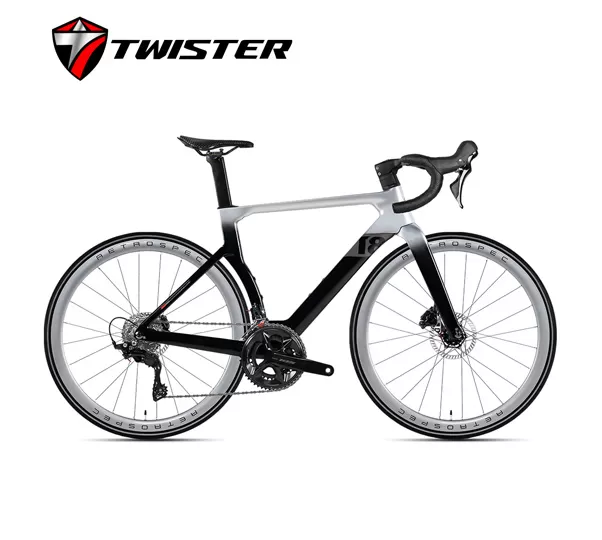

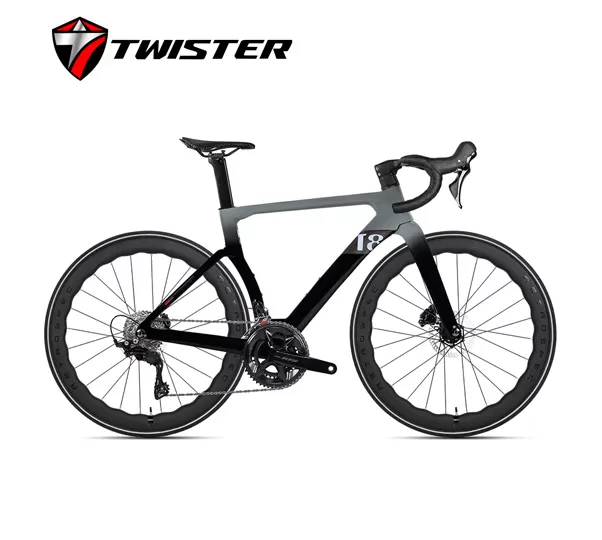

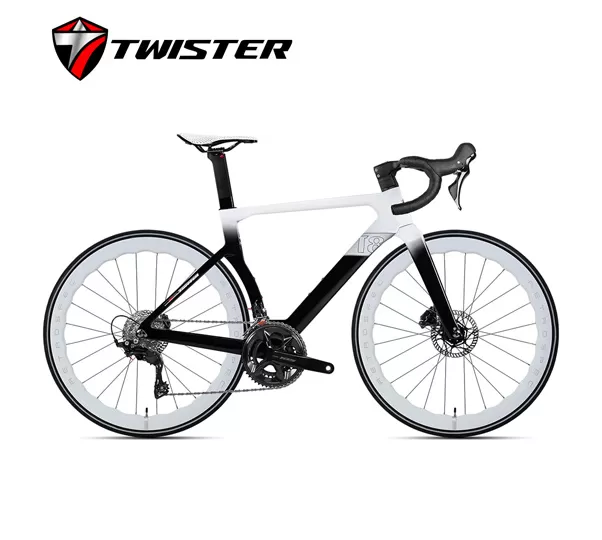

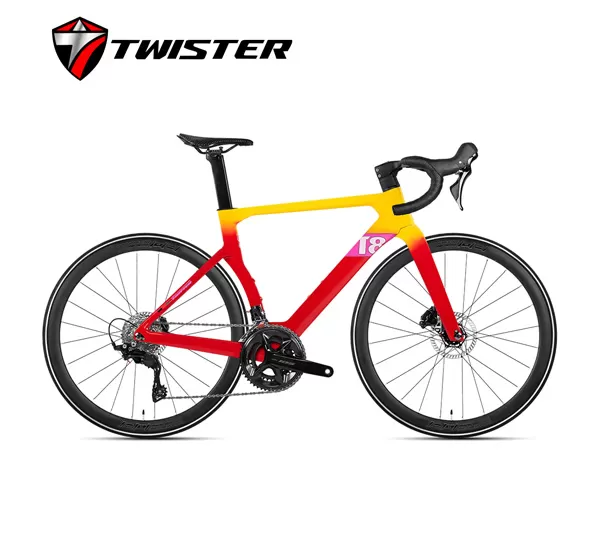

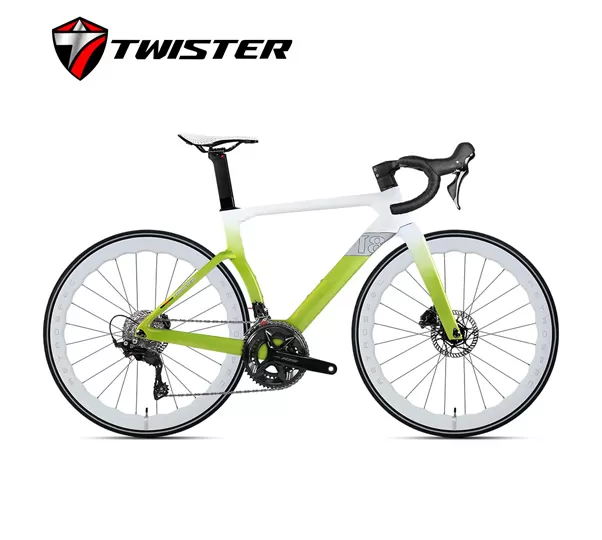

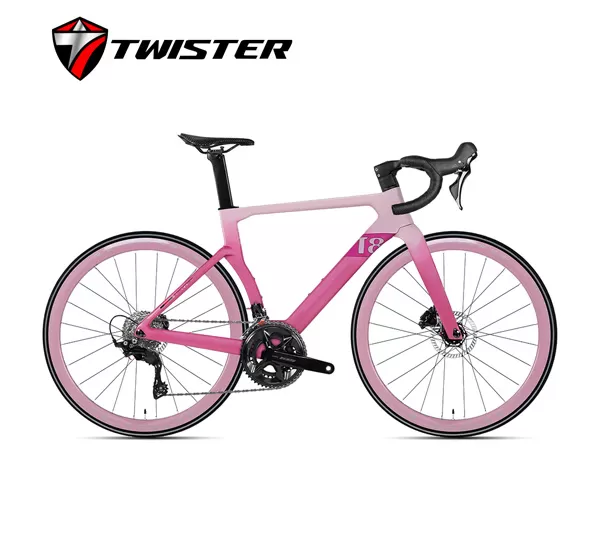

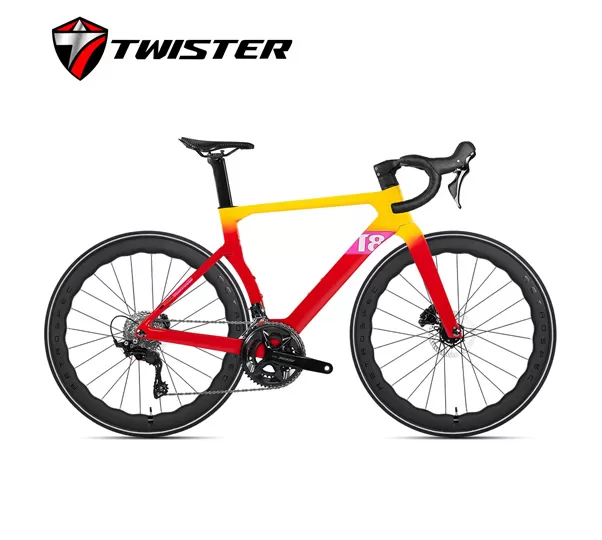

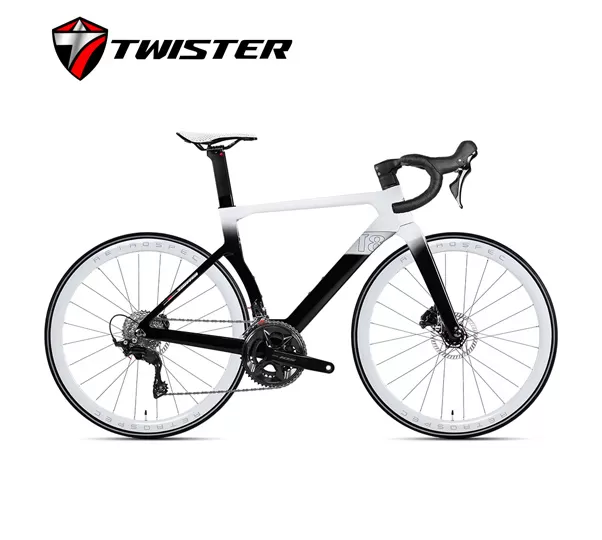

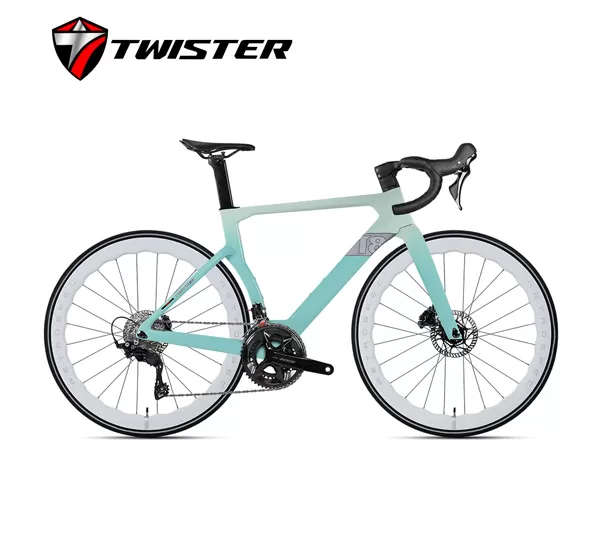

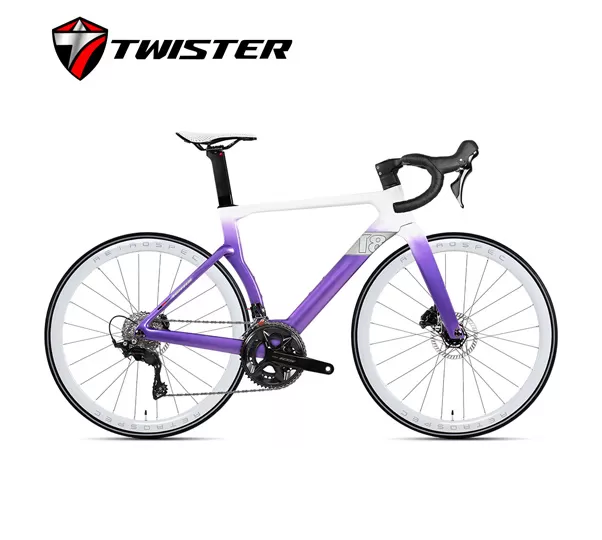

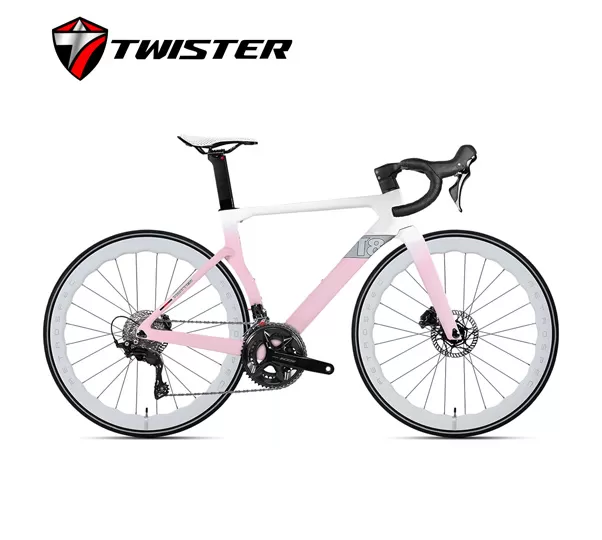

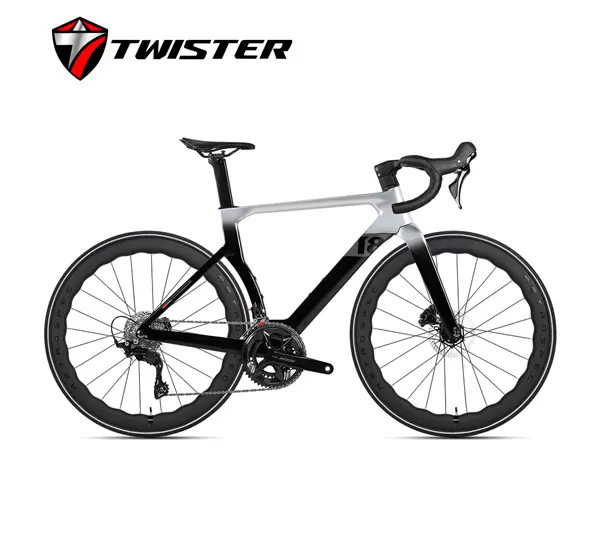

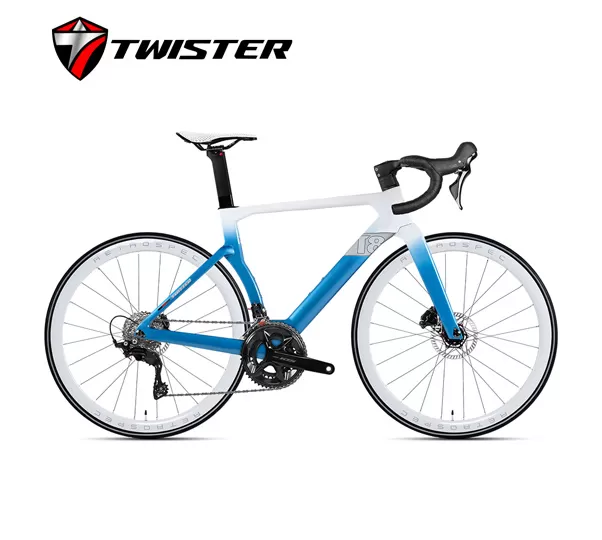

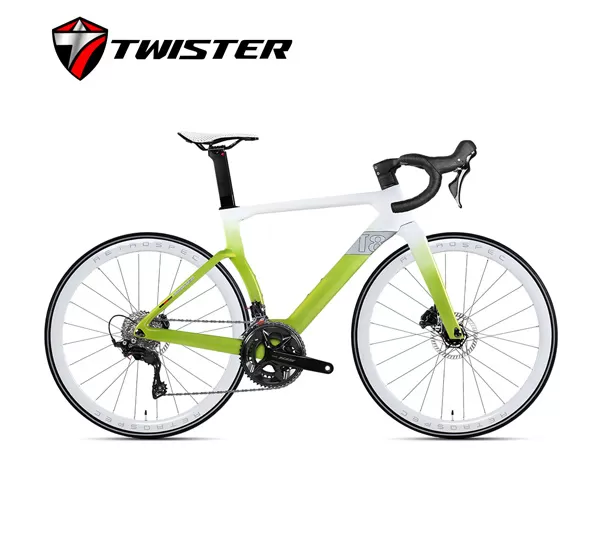

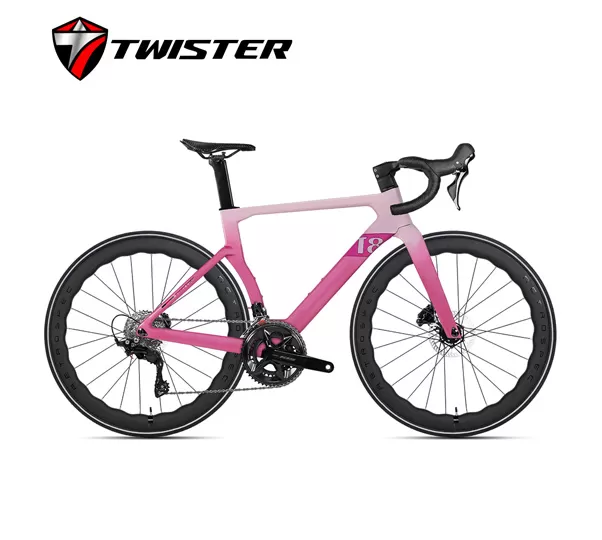

| Color | Blue and white/green and white/pink and white/black and dark gray/pink/light green and light green/black and cement gray/red and yellow/purple and white/black and white/black and silver, Discoloration Black | ||
| Net weight | 8.9KG | 8.8KG | |
| Frames | Frames | T8-Disc Brake(Disc Brake Barrel Shaft 12*142) High-modulus carbon fiber/wind breaker/internal alignment/matte or glossy lacquer/UV marking | |
| Handlebars | Handlebars | TW High-modulus carbon fiber/wind breaker one-piece handlebar and stem 400/420*90mm/full internal threading | |
| Seatposts | Frameset/High Modulus Carbon Fiber/Windbreaker Dropouts | ||
| Tube clamps | Frameset/Internal lockout with protective rubber sleeve | ||
| Forks | Forks | T8-Disc Brake(Disc Brake Barrel Shaft 12*100) High Modulus Carbon Fiber/Road Forks | |
| Bowls | Perrin 52*52mm | ||
| Gaskets | Internal alignment special | ||
| Shifters | Hand shift | SHIMANO 105/R7120-2*12 Speed | |
| Front derailleur | SHIMANO 105/R7100-2 Speed | ||
| Rear derailleur | shimano 105/r7100-12speed | ||
| Discs | SHIMANO 105/R7100 Hollow,34-50T | ||
| Flywheel | SHIMANO 105/R7100-12 speed,11-34T | ||
| Chain | shimano hg6100-12speed | ||
| Center shaft | Threaded T47*24mm,Hollow Perrin | ||
| Brakes | Brakes | SHIMANO 105/R7070 Hydraulic Disc Brake, Center Lock Dazzle 160/160mm | |
| Wheelsets | Hubs | RS Lightweight Aluminum+Carbon Fiber/Quad Perlin Cassette/Front 24 Rear 24 Holes/Straight Pull Center Lock/Disc Brake Barrel Shaft F12*100_R12*142 | |
| Rims | RS Lightweight Aluminum/Double Reinforced/Frame Height 38mm | RS High Modulus Carbon Fiber / Wave Rings / Frame Height 50mm / Opening | |
| Spokes | High rigidity round bar 14G | High rigidity flat bar 14G | |
| Tires | Inovar Foldable with Reflective Trim, 700*27C | ||
| Others | Handlebars | PU breathable, comfortable and non-slip | |
| Cushions | 3D printed cushion | ||
| Footsteps | Lightweight aluminum alloy Perrin | ||
| Cables | JAGWIRE | ||
| Add-on parts | Front and rear reflectors + front and rear wheel reflectors | ||
| Additional parts | PC water bottle holder + tools | ||
| TW manual + warranty card | |||
| Domestic Dealer Quotation,RMB (For color-changing frameset, +200RMB on top of the following price; For color-changing carbon rims, +100RMB on top of the plain carbon rims) | |||
| Shenzhen First Technology Co., Ltd. Standard on all vehicles. Loading list | |||||||||||
| T8-Disc Brake (R7120) | R7120-24 speed large set of aluminum ring carbon handlebar | R7120-24-speed large set of wave carbon ring carbon handlebars | |||||||||
| System | Fittings | Specification | Specification | Color/Popular Color | Color change | ||||||
| Frames | Frames | T8-Disc Brake, Disc Brake Barrel Shaft Carbon Fiber Road | Blue and white | Green and white | Black dark gray | Pink and white | Black cement gray | Purple and white | Other | Color change black | |
| Handlebars | Handlebars | TW Carbon Fiber Bent Handlebar & Stem 400/420*90mm, fully hidden alignment | Black | Black | |||||||
| Seatposts | Carbon fiber seatpost | Black | Black | ||||||||
| Tube clamps | Frame with built-in locking collar and dust cover | Black | Black | ||||||||
| Forks | Forks | T8-Disc Brake, Disc Barrel, Carbon Fiber Stiff Fork 700C | Blue and white | Green and white | Black dark gray | Pink and white | Black cement gray | Purple and white | Other | Color change black | |
| Bowls | Bearing 52*52mm | Black | |||||||||
| Gaskets | High-strength and lightweight nylon/internal cable routing | Black | |||||||||
| Shifters | Hand shift | SHIMANO 105/R7120-2*12-speed | |||||||||
| Front derailleur | shimano 105/r7100-2-speed | ||||||||||
| Rear derailleur | shimano 105/r7100-12speed | ||||||||||
| Discs | SHIMANO 105/R7100 Hollow,34-50T | ||||||||||
| Flywheel | SHIMANO 105/R7100-12 speed,11-34T | ||||||||||
| Chain | shimano hg6100-12speed | ||||||||||
| Center shaft | Threaded T47*24mm,Hollow Perrin | ||||||||||
| Brakes | Brakes | SHIMANO 105/R7070 Hydraulic Disc Brake+Center Lock Dazzling Disc 160/160mm | |||||||||
| Brake handle | |||||||||||
| Wheelsets | Hubs | RS Aluminum+Carbon Fiber/Quad Axle/Road Cassette/Front 24 Rear 24 Hole Straight Pull/Barrel Axle Disc Brake Center Lock+Swivel Lock Lever | Black | Black | |||||||
| Rims | 700C/Aluminum/Alloy/Double 38 cutter (RS-UV marked) | 700C/Carbon Fiber/Wave Loop 50 Cutter (RS Letter Mark) | White | White | Black | White | Black | White | Full color change | ||
| Spokes | Plain round bar, elbow | Plain flat bar, elbow | Black | Black | |||||||
| Tires | Inovar, foldable with reflective edge, 700*27C | ||||||||||
| Accessories | Handlebar strap | PU breathable holes for comfort and non-slip | Black | Black | |||||||
| Cushions | 3D Printed Cushion | Black | Black | ||||||||
| Footsteps | Fei Min FP-935ZU Aluminum Alloy | Black | Black | ||||||||
| Kickstands | None | ||||||||||
| Cables | JAGWIRE | Black | Black | ||||||||
| Add-ons | Front & Rear Reflectors + Spoke Reflectors | ||||||||||
| Equipment | PC Water Rack + Tools | ||||||||||
| Other | TW Warranty Card + TW Manual | ||||||||||
